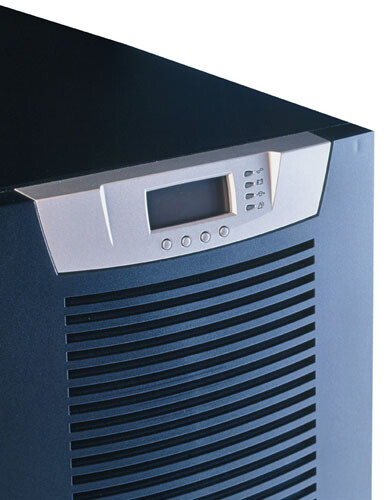

Eaton 9155 8kVA 7.2kW 32-Battery 3-High w/Transformer Module Tower UPS
Eaton 9155 UPS Backup Power System
The Eaton 9155 UPS provides premium online backup power and scalable battery runtimes for IT and electrical engineering infrastructure in corporate, healthcare, banking and industrial applications. Packing maximum battery runtime into a very small footprint, the 9155 UPS is a complete power protection solution. The 9155 can be equipped with an integrated, customizable power distribution module that includes a maintenance bypass NumberK40813000000000Part NumberK40813000000000ColorBlackRating (VA/Watts)8000/7200
DiagnosticsFull system self-test at startupUPS BypassAutomatic on overload or UPS failureDimensions (H x W x D, inches)47.8 x 12 x 33.7Weight (lbs)558WarrantyTwo-year factory warrantyContents
(Ships with the following items)1 ready-to-go UPS
Software Suite CD
User GuideEfficiency92% with nominal linear load; 91% with nominal computer load.Electrical InputConnectionHardwired - see manual for terminal block layout
Frequency50/60 Hz (45 to 65 Hz)Frequency Range45 to 65 HzInput Power FactorP.F >0.99 typical, >0.96 frequency converterGenerator CompatabilityYesElectrical Output100/200, 110/220, 120/240 Vac 180° phase displacement; 120/208, 127/220 Vac 120° phase displacementOutput Receptacles(1) PDMOn Utility Voltage RegulationOutput voltage regulation ±1% Static; ±5% dynamic at 100% resistive load changeOn Battery Voltage RegulationOutput voltage regulation ±1% Static; ±5% dynamic at 100% resistive load changeOverload Capacity150% for 5 sec / 125% for 1 min (online), 110% for 10 minVoltage Wave Shape (On Battery)Sine WaveTransfer Time0 msBattery
Battery ManagementABM technologyBattery Type9Ah, sealed, lead-acid, maintenance-freeBattery ReplacementField-replaceableStart On BatteryAllows start of UPS without utility inputRecharge TimeInternal battery: approximately 3 hours to 80% usable capacity at nominal line voltage after full load discharge External battery: no more than 10x discharge time to 90% usable capacity at nominal line voltage after full load dischargeCommunicationsUser InterfaceLCD Display with blue backlightLEDs(4) LEDs for notice and alarmAudible AlarmsYesCommunication Ports(1) RS-232, (1) relay contact, (1) REPO, (2) environmental inputCommunication Slot(2) X-Slot communication baysPower Management SoftwareBundled Software Suite CDEnvironmental & StandardsAudible Noise<53dBA at 1 meter (noise less room) typicalOperating Temperature10°C to +40°C, +45°C with 7.5% derating; Batteries recommended max. +25�CMarkingsUL, cUL, CSA, CE and NOM-NYCEStorage Temperature-15°C to +25°CRelative Humidity0-95%, non condensing
