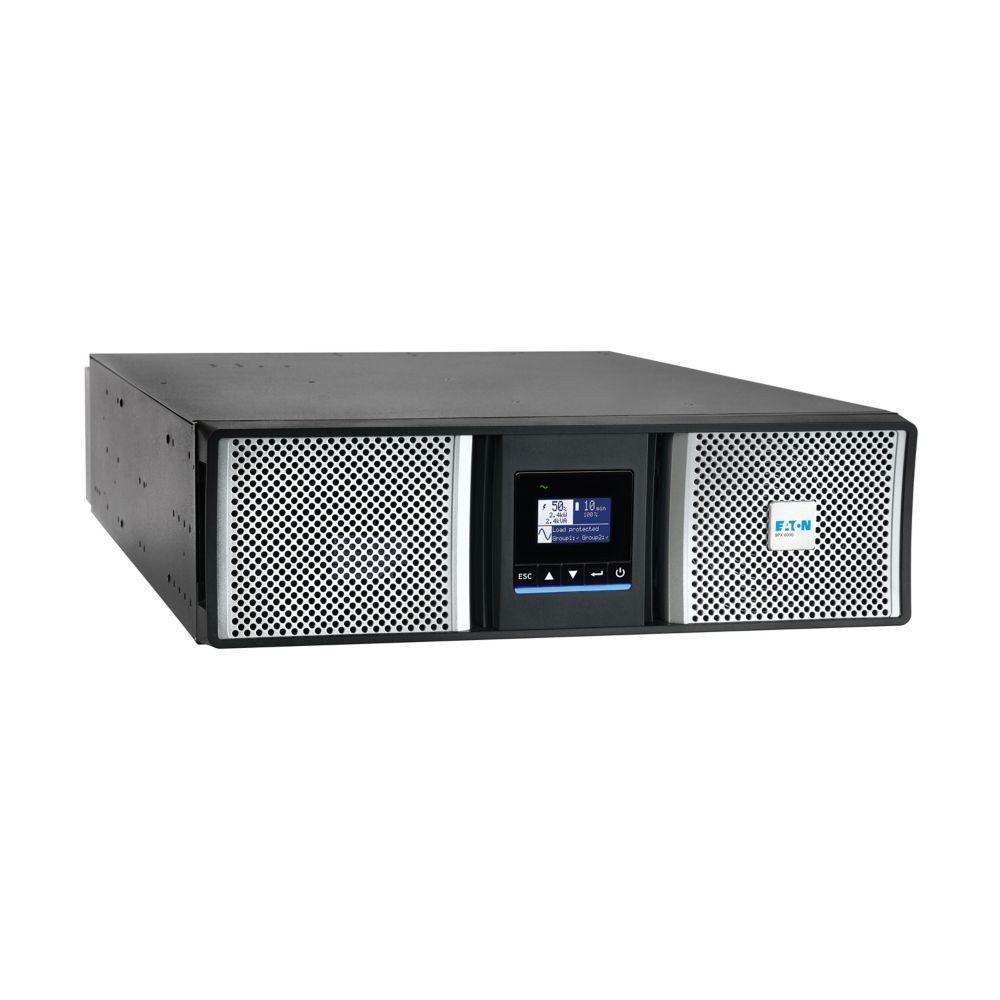

Eaton 9PX Gen 2 UPS, 6000 VA, 5400 W, Input: Hardwired or 10ft. L6-30P, Outputs: Hardwired, (2) L6-30R, (2) L6-20R, 3U Rack/tower, VRLA battery, Gigabit Network card included
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Best-in-class efficiency results in reduced energy costs and greenhouse gas emissions
- Included NETWORK-M3 Gigabit network card enables full remote access and control
- Exclusive ABM+ technology and analytics help you pinpoint when to replace batteries
- Optional extended battery modules allow expanded runtime to keep equipment powered
SKU 9PX6KG2 description Label Eaton 9PX Gen 2 UPS, 6000 VA, 5400 W, Input: Hardwired or 10ft. L6-30P, Outputs: Hardwired, (2) L6-30R, (2) L6-20R, 3U Rack/tower, VRLA battery, Gigabit Network card included General specifications Product Name Eaton 9PX UPS Catalog Number 9PX6KG2 UPC 786689860066 Product Length/Depth 26.93 in Product Height 5.12 in Product Width 17.32 in Product Weight 98.33 lb Warranty 3 year limited Compliances CISPR22 Class A / FCC part 15 Class A FCC Part 15 CE Marked Certifications NOM cULus Listed IEC 62040-2:2006 Cat C2 ENERGY STAR certified ICC-ES AC156 OSHPD Seismic certified Global Catalog 9PX6KG2 Product Type UPS Battery Battery management ABM+ technology uses battery replacement analytics to predict when you should replace UPS batteries based on real-life usage and conditions. Battery replacement Hot-swappable internal batteries and extended battery modules (EBMs). Replacement battery part # EBP-1805 (qty 1 per UPS) Battery type Sealed, lead-acid Extended battery capability Add up to 12 EBMs, part # 9PXEBM180RTG2 Electrical output Receptacle (2) L6-20R, (2) L6-30R, Hardwired Topology Online/Double-conversion Wattage 5400 W VA rating 6000 VA Output waveform True sine wave Voltage 208 V Output power factor 0.9 (240V L6-30P), 1.0 (hardwired input) Output nominal voltage 208V default (200/208/220/230/240V) Output voltage range ±1% steady-state Output frequency 50/60 Hz Electrical input Input connection L6-30P and hardwire input supported Input cord length 10 ft Input nominal voltage 208V default (200/208/220/230/240V) Input frequency range 60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz Input power factor >0.99 typical Communications Expansion slots (1) Mini-Slot (MS) expansion port with Gigabit Network Card (NETWORK-M3) included Ethernet interface Yes Includes network card Yes Software compatibility Bright layer Data Centers suite User interface Graphical display, 5-button programmable menu, LED indicator Environmental Altitude 3000 m BTU Rating Online: 767 BTU/hr, Battery: 1155 BTU/hr, High Efficiency: 205 BTU/hr Noise level <43 dB at 1 meter Relative humidity 0-95% non-condensing Temperature range 0° to 40°C (32° to 104°F) Additional specifications Special features Gigabit Network Card (NETWORK-M3) included Rack size 3U Rack mounting kit Yes Efficiency at max. load 96% Package contents 6000VA 5400W 208V 9PX G2 Online Double-Conversion UPSNETWORK-M3 Gigabit network card USB cableRS-232 cable Cable gland for hardwire connection Rack-mounting hardware Tower support stands Quick Start Guide Surge protection Yes Internal bypass Yes NO RETURNSDetermining compatibility with your existing parts, hardware, and/or software is responsibility of the buyer.Every effort has been made to ensure the accuracy of all information contained in this ad. We cannot possibly anticipate broad spectrum of products compatible with all components available on the market today.Please visit manufacturer's website or call their customer service for compatibility questions and detailed technical information!We do not offer technical support!
