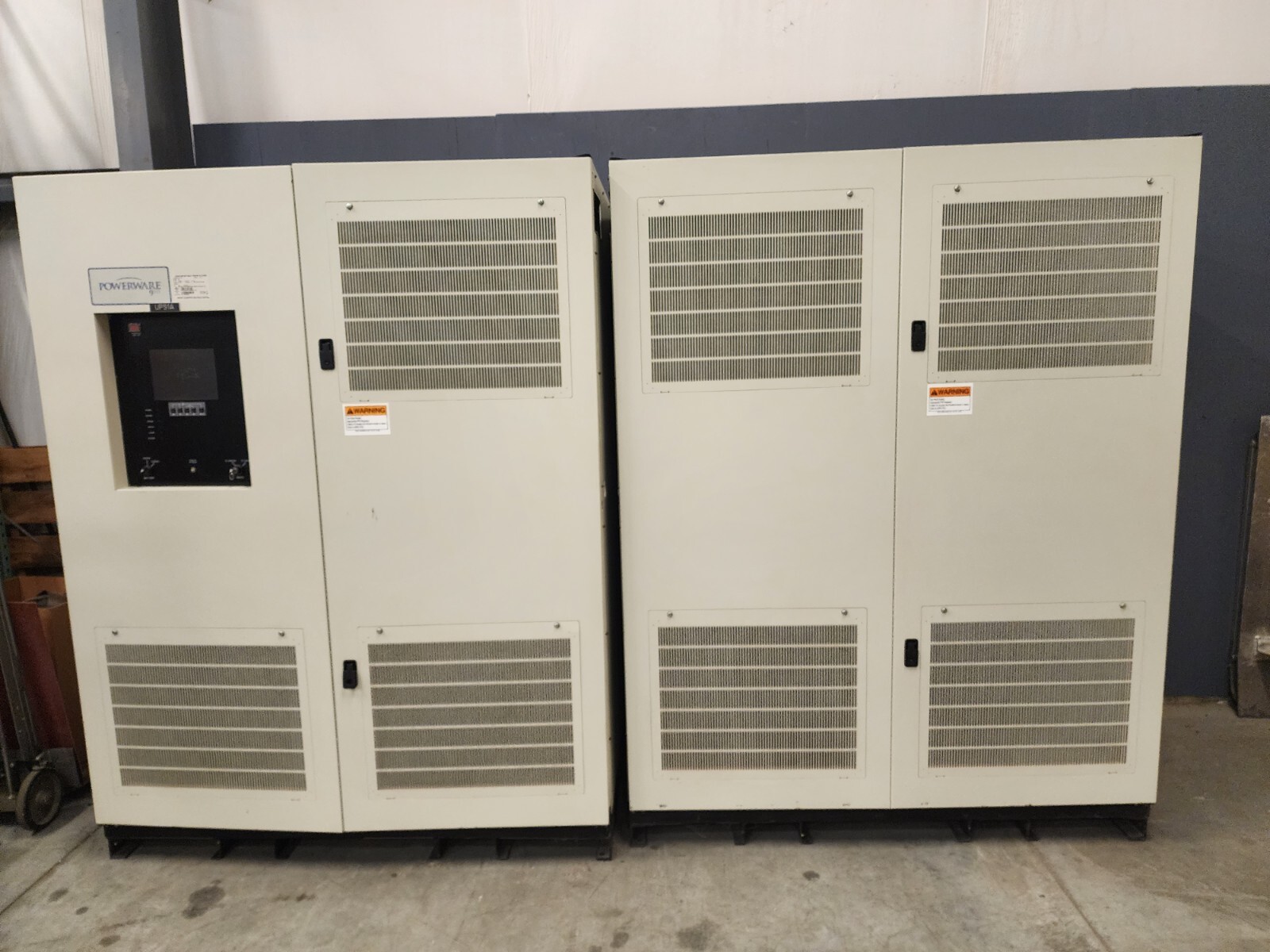

Eaton Powerware Model 9315-750 Parallel Capacity Module optioned with ABB Motor Operated Breakers.
Specifications:Model 750, 750 kVA / 600 kWInput Voltage Range +10% to –15%Frequency Range ±3 Hz of nominalSurge Protection Meets IEEE 587, Category A & B, EN 50091-2Power Factor .85 lag at nominal full load; .90 lag with input filterInput Current Distortion Less than 12% without input filter, less than 5% with optional input filterInrush Current 6x input current (sub-cycle), 1x with Inrush limiter optionPower Walk-in Adjustable 3-60 second rectifier ramp-up to full utility load OutputVoltage THD Less than 5% for (100% non-linear load with 3:1 crest factor); less than 3% (100% linear load)Voltage Regulation Better than ±1% (10-100% load)Transient Response Less than 5% for 100% load step or removalFrequency (free run) ±0.01 HzFrequency Sync Range ±0.5 HzFrequency Slew Rate 1 Hz/second maximum (adjustable)Overload Capability Up to 124% for 10 min, 125 to 150% for 10 secondsMaximum Output Capability 300% peak for 4 cycles without bypassEnvironmentalAmbient TemperatureOperation 0°C to +40°CStorage -20°C to 70°CRelative Humidity: Operation and Storage Up to 95% non-condensingAltitude 1500 meters (5000 ft.) without load deratingAudible Noise Less than 75 dBA typical at 5 feetElectrostatic Discharge Withstands 6 kV without damage or disturbance to the load; exceeds requirements of ENS0091-2EMC Meets FCC Class AEN 50091-2 (CISPR 22, Class A, Restricted Access)SafetyUL1778 Listed; CUL CAN/CSA C22.2 NO.107.1All cabinets provide seismic mounting featuresSelectable DC ground fault detection capabilityMechanicalCable Entry TopCooling Filtered forced air with redundant blowersAccess Front onlyShipping Split Largest single section is 63" longDimensions Single Module: 127"w x 39"d x 82"hWeight (installed) Single Module: 12,600 lbs.
