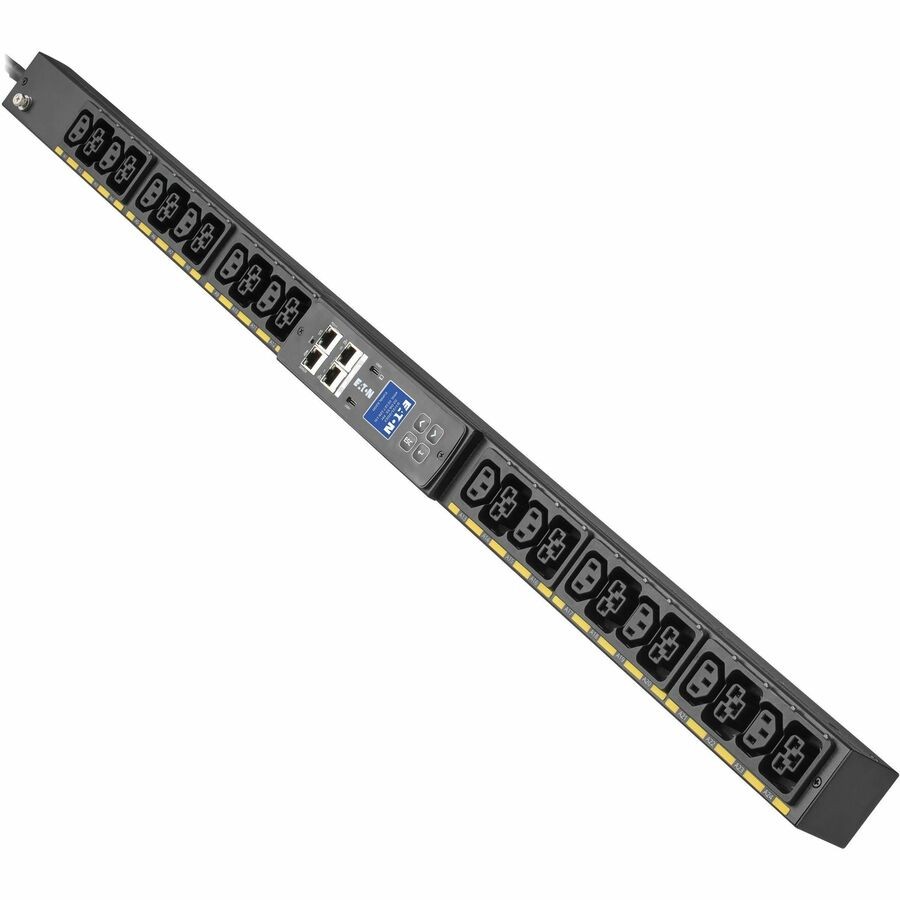

Eaton Single-Phase Metered Input Rack PDU G4, 100-240V, 24 Outlets, 10 ft. Cord Brand: Eaton UPC: 0786689801410 Mfr Part #: EVMIL620A
General Information
Single-Phase Metered Input PDU Ideal for Data Center Managers with Large-Scale Distributed IT
The EVMIL620A G4 Rack PDU is ideal for streamlining PDU procurement and deployment within a 42U rack in an enterprise data center, colocation data center or distributed IT infrastructure. Equipped to meet even the most diverse data center rack power needs, the EVMIL620A delivers versatile, enterprise-quality power distribution.
Market-Leading Cybersecurity Ensures Your Data Is Kept Safe
Chain-of-trust encryption and secure firmware boot capability prevent the EVMIL620A PDU from being a cyberattack vulnerability point on a network. An embedded, hot-swappable gigabit network module (GNM) offers enhanced management and cybersecurity, including zero-trust architecture and zero-touch provisioning. The EVMIL620A is compatible with select Eaton Brightlayer Data Centers suite software solutions that enable extensive automation and remote management to shorten response times to power issues and ensure timely updates for stronger cybersecurity.
Remote Management Saves Time and Money
The GNM with multi-color screen supports performance management software for real-time reports, trend charts, dashboards and alerts that are prioritized by severity, as well as remote troubleshooting and automated responses during power events. The EVMIL620A is compatible with optional environmental sensors (sold separately) that provide alerts about temperature, humidity and dry-contact device connections.
24 Outlets Give You Plenty of Power Options
The EVMIL620A features 12 C13 outlets, which accept C14 connectors, and 12 high-retention C39 combo outlets, which accept both C14 and C20 connectors, adding flexibility to deployments and reducing the quantity of PDUs you will need to purchase and install. The outlets are evenly distributed into six color-coded load banks, to improve load balancing and organize connections in a crowded rack.
Convenient Box-to-Rack Installation
This EVMIL620A PDU features toolless mounting buttons that allow front- or side-facing rack installation, depending on your rack's layout and your power needs. The 10-foot power cord with L6-20 input connects to a compatible AC source. Low-profile circuit breakers are flush with the lightweight aluminum chassis, and the narrow two-inch width saves space within the rack for revenue-generating equipment. You can cascade up to 40 EVMIL620A models with each model maintaining its own individual IP address from a single network connection point.
Technical InformationPDU Type:MeteredPlug/Connector Type:IEC 60320 C20Plug/Connector Type:NEMA L6-20PReceptacle Type:IEC 60320 C13Receptacle Type:IEC 60320 C39Receptacle Detail:12 x IEC 60320 C13Receptacle Detail:12 x IEC 60320 C39
Power DescriptionInput Voltage:120 V ACInput Voltage:230 V ACInput Voltage Range:100 V AC - 240 V ACPower Rating (Watt):3800 WInput Current:16 A
Physical CharacteristicsMounting Orientation:VerticalForm Factor:VerticalRack Height:0UCord Length:10 (Approximate):4.90 lb
CAN ICES-003 Class A FCC part 15 Class A cTUVus UL 62368-1Country of Origin:Philippines
