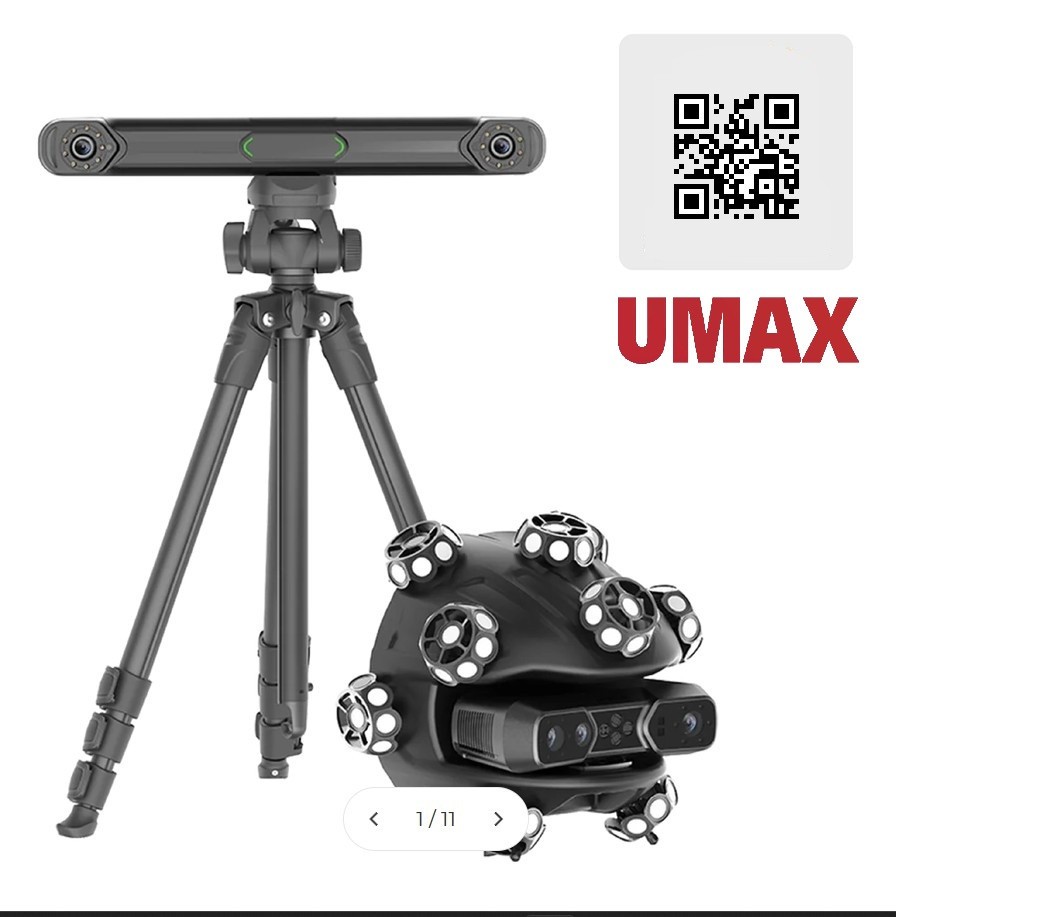

EinScan TrakDetachable Dual-Mode 3D Scanning
The EinScan Trak combines tracking and handheld scanning in a detachable dual-mode design, giving you the flexibility to switch between Tracking Mode and Handheld Scanner Mode for different scanning requirements.
Wireless Tracking with Wi-Fi 6
Built with Wi-Fi 6 wireless connectivity, EinScan Trak provides a 15 m³ tracking volume for flexible, cable-free scanning. Its wireless design helps create a more convenient scanning workflow while maintaining reliable tracking performance.
Marker-Free Tracking Technology
EinScan Trak features marker-free tracking technology, eliminating the need for physical markers during supported scanning workflows. This simplifies setup and helps streamline the scanning process.
Three Laser Scanning Modes
Choose the laser configuration that best fits the scanning task. EinScan Trak supports three laser scanning modes:
19+19 crossed laser lines for detailed scanning
7 parallel laser lines for flexible scanning applications
Single laser line for focused scanning
This combination provides multiple scanning options within a single system, allowing you to select the appropriate laser mode for the object and application.
Adaptable to Challenging Surfaces and Environments
EinScan Trak is designed to handle a broad range of scanning conditions, including black and reflective surfaces that can be challenging for conventional scanning systems.
It also supports scanning in outdoor light environments up to 110,000 lux, providing greater flexibility when working outside controlled indoor conditions.
5MP HD True-Color Texture Scanning
Capture detailed surface information with 5MP HD true-color texture scanning. The system records high-definition color texture data alongside 3D geometry, helping produce scans with realistic surface color and visual detail.
Key Specifications at a Glance
Design: Detachable dual-mode
Modes: Tracking Mode + Handheld Scanner Mode
Wireless Connectivity: Wi-Fi 6
Tracking Volume: 15 m³
Tracking Technology: Marker-free
Laser Modes: 19+19 crossed lines / 7 parallel lines / Single laser line
Surface Adaptability: Black and reflective surfaces
Outdoor Light: Up to 110,000 lux
Texture Scanning: 5MP HD true-color
One System, Two Work Modes
Choose the right setup for your applications—detachable, easy to calibrate,and ready with one-click startup. Enables seamless switching and flexible combination of tracking mode and handheld scanner mode, supporting real-time adjustment during scanning and cross-mode resolution merging.
Wireless Freedom, Higher Efficiency
Equipped with Wi-Fi 6 module supports wireless scanning. Connects via an independent LAN and pairs automatically at startup. Enjoy 15m³ ultra-large tracking volume, giving you more freedom to move, capture, and create with higher efficiency.
*A router is required and included as standard.
All-Scenario Marker-Free 3D Scanning
Marker-Free Tracking System: EinScan Trak features built-in retroreflective markers on its spherical scanner module, enabling the wireless tracker to precisely monitor the scanner’s position in real time.
Marker-Free Laser Scanning in Handheld Scanner Mode: For feature-rich surfaces, handheld scanner mode delivers
a smooth, marker-free scan experience.
Three Scanning Modes for Diverse Needs
19+19 crossed laser lines acquire high-quality data from large objects quickly, deliveringworkflow efficiency and scanning flexibility.
7 parallel laser lines capturelines and sharp edges on automotivecomponents with greater clarity.
Single laser line reaches deeper to capture fine details with 1:4 diameter- depth ratio, supporting applications such as vehicle reverse engineering.
Adaptable to Every Task
High-definition. True-color.
5MP HD texture scanning accurately captures object colors and material details. It breaks the stereotype that laser tracking 3D scanning lacks color, bringing the efficiency of tracking systems to cultural heritage, research
