MAIN OVERVIEW FEATURES: Viewable
Screen Size: 19"Screen
Mode: SXGA
Response Time: 5 msAspect
Ratio: 5:4
Mount Type: Front Mount, Rack-mountable
Backlight Technology: LED
Maximum Resolution: 1280 x 1024Color
Supported: 16.7 Million Colors
Contrast Ratio: 1, 000:1
Brightness: 250 cd/m²Touchscreen
Type: Projected Capacitive
HDMI: Yes
USB: Yes
VGA: Yes
Display
Port: Yes
Operating
Power Consumption: 22
WColor: Black
VESA Mount Compatible: Yes
Height: 13.50"
( 342.90 mm)Width: 16.33"
( 414.78 mm)Depth: 1.97"
( 50.04 mm)Weight (Approximate): 4.60 kgPackage

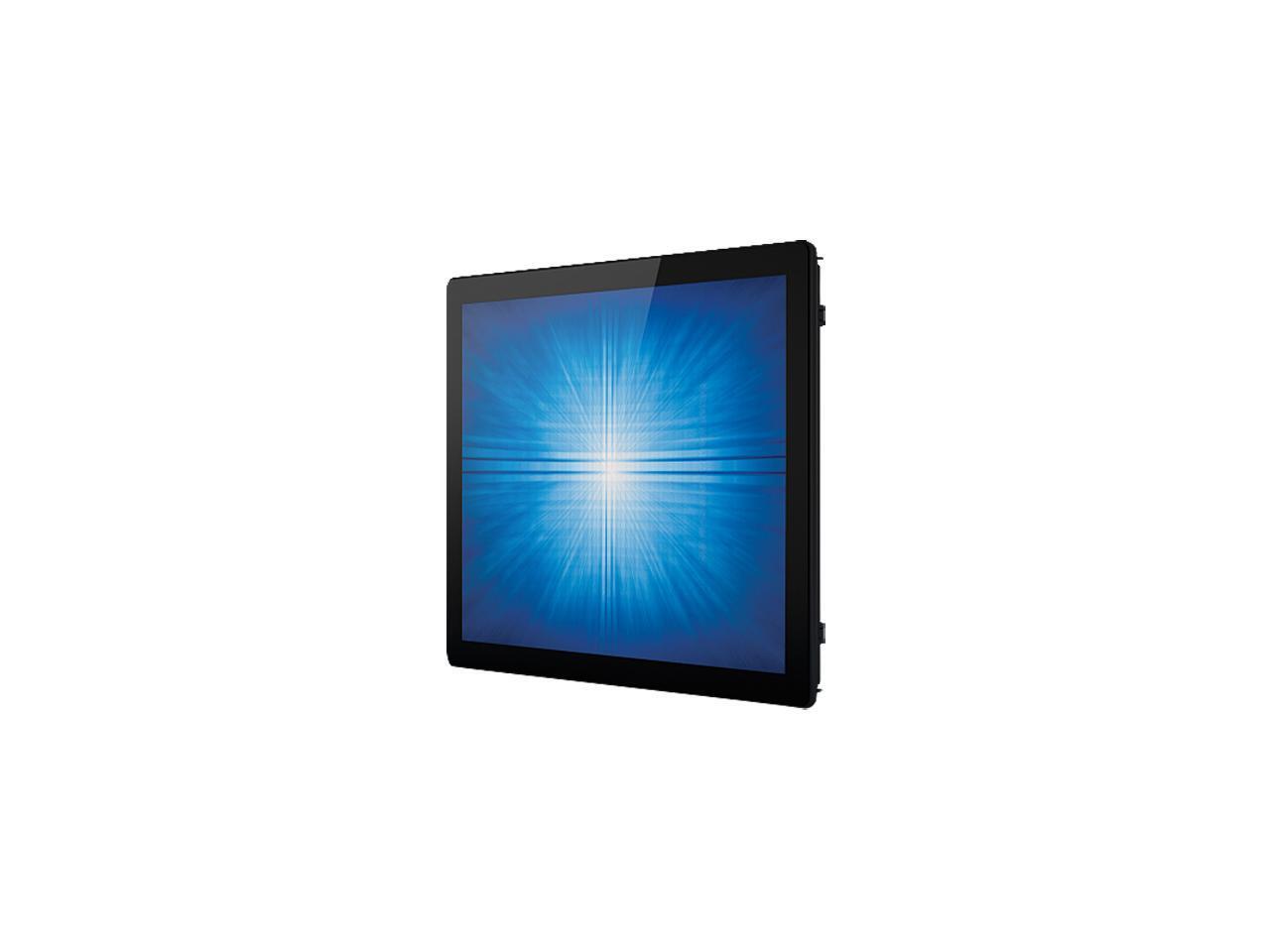

Contents: 1990L 19" Open Frame Touchscreen (Rev B) HDMI cable VGA Cable RJ45 OSD Remote Touch USB Cable User Manual CD Quick Install Guide "L" (Side Mount) Brackets and w/Screws EEI Label Japan Class-B TM info sheet
Environmentally Friendly: Yes
Environmental Certification: T? V, RoHS, China RoHS, WEEE
Limited Warranty: 3 Year
Learn more about Elo Touch Solutions E330817ModelBrandELO - TOUCHSCREENSModelE330817Cabinet ColorBlackDisplayTouchscreen TypeProjected CapacitivePanelTFT LCDScreen Size19"Aspect Ratio5:4Maximum Resolution1280 x 1024Recommended Resolution1280 x 1024Viewing AngleHorizontal: ±85° or 170° total / Vertical: ±80° or 160° totalDisplay Colors16.7 MillionOn-Screen Display(OSD)Accessible through switches on the unit’s tethered OSD Control box. Controls: Menu, Up, Down, Select, Power Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese Lockouts: OSD, PowerBrightnessLCD panel: 250 nits IntelliTouch: 225 nits TouchPro PCAP: 225 nitsContrast Ratio1000:1Response Time5msHorizontal Refresh Rate30 - 82 KHzVertical Refresh Rate50 - 75 HzConnectivityTouchscreen InterfaceUSBConnectorsD-Sub, HDMI, DisplayPortPowerPower SupplyExternal DC - Optional power brick (sold separately)Power ConsumptionMonitor + Adapter at 230V/50Hz ON: 22 Watts SLEEP: 1.50 WattsOFF: 0.50 WattsConvenienceMTBF50,000 hours demonstratedDimensionsDimensions (H x W x D)Bezel: 16.33" x 13.50" x 1.97"Zero-Bezel: 16.54" x 13.70" x 1.60"Weight10.14 lbs.Humidity RangeOperating: 20% to 80% Storage: 10% to 95%Temperature RangeOperating Temperature: 0 degree C to 40 degree C / 32 degree F to 104 degree FStorage Temperature: -20 degree C to 60 degree C / -4 degree F to 140 degree FShippingEnjoy fast and reliable shipping when you buy your products from Newegg. Our ordering and shipping services are among the best in the industry due to short processing times and a variety of shipping methods. Your orders are packaged at one of the many local warehouses across the country, minimizing delivery times and ensuring you get your purchases as soon as possible.PaymentsNewegg has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology.ReturnReturns are subject to restocking fees of 15% - 30% of the purchase price and return shipping fees. For products that are eligible for return for replacement, the return shipping labels are free for returns for replacement of the same item within the applicable return policy period. Newegg does NOT charge for restocking fees or return shipping labels for returns of defective products, or if you received the wrong product, the product did not match what was shown on the Site, or we made some other shipping error, provided the item is returned within its return policy period, and in accordance with the Return Policy.
