3202L 31.5" Interactive Digital Signage

Elo’s 3202L 32-inch interactive digital signage delivers a professional-grade large format touchscreen in a slim, integrated package. Designed from the bottom up for retail, hospitality, enterprise, healthcare and other commercial markets, the 3202L offers a bright, 500-nit LED panel with a high-quality, interactive canvas for attracting and engaging consumers. The 3202L offers a high-performance solution that is easy to deploy and maintain in public environments.

Thinner & lighter.

At less than 2.5 inches thin, the 3202L display is over 35% thinner than the prior model. Even with the optional computer module attached, it is compliant with the ADA and IBC requirements for protrusion when mounted to a wall with an Elo low-profile mount.

Integrated touch.

Elo’s products are factory-built touch systems with durability built in, not snapped on, preventing any “double bezel” appearance or rattling when touched. The 3202 is available with two touch technology options. Both enable up to 10 simultaneous touches for multi-user interaction with fast and sensitive responses. Infrared (IR) offers a traditional bezel construction that can be easily integrated into kiosks. Projected capacitive (PCAP) offers edge-to-edge glass that looks and performs like mobile device glass. Products are compatible out of the box with Windows, Linux, MAC OS (single touch only), Chrome and other proprietary media players.

Processing power.

Optional, high-performance computer modules are available to turn the 3202L into a completely integrated all-in-one computer without the need for any cables or additional mounting hardware. The commercial-grade computer modules, available with Microsoft Windows with Intel Core or Android with Qualcomm Snapdragon (supports EloView®), make the Elo 3202L IDS display into a reliable platform that is interoperable with most content management servers and supports optimal partitioning of locally cached and network-streamed content.

Other features.

• Professional-grade hardware with strengthened touchscreen glass to withstand the rigors of public use
• Three-year standard warranty (worldwide) with on-site exchange (NA only) / two-year extended warranty option available (NA and EMEA only)
• IR and PCAP with clear glass offer pristine optical clarity and touch durability that pass UL-60950 requirements
• Touch On-Screen Display (OSD)—no remote needed; if desired a wired remote can be used
• Flexible mounting in portrait, landscape and table-top orientation

Specifications

• Part Number(s)

  Infrared (Worldwide) - E222368
  PCAP (Worldwide) - E222371
  Non-Touch (Worldwide) - E440697

  Enclosure Color

  Black

  Touch Technology & Capacity

  PCAP (TouchPro™ Projected Capacitive) - 10 Touch
  Infrared - 10 Touch

  Diagonal Size

  31.5'' diagonal, Active matrix TFT LCD (LED)

  Active Area (mm)

  27.49" x 15.47" / 698.4mm x 392.9mm

  Aspect Ratio

  16:9

  Resolution

  1920 x 1080 @ 60hz

  Viewing Angle

  Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

  Number of Colors

  16.7 million

  Brightness (typical)

  LCD Panel: 500 nits
  IR: 450
  PCAP: 430 nits

  Response Time-total (typical)

  8 msec

  Contrast Ratio

  3000:1

  I/O Ports

  Input: AC power input, USB type B (for Touch), VGA, 2x HDMI, GPIO, DisplayPort, Audio Line in
  Output: Audio Headphones out, RJ45 (for optional OSD remote)

  Input Video Frequency

  Horizontal: 31.5 - 73 KHz
  Vertical: 47 - 63 Hz

  Audio Input Connector

  3.5 mm TRS jack

  Audio Input Signal Range

  1Vrms max stereo signal (standard PC line out)

  Headphone Output Connector

  3.5 mm TRS jack

  Speakers

  4 x 5 W stereo speakers

  Power Supply

  AC internal

  Input Connector

  IEC 60320 C6

  Input Voltage

  100 - 240 VAC 50/60Hz

  Maximum Operating Time

  24 hours/day

  Power Consumption (Typical)

  Monitor Only
  (Typical at 120V at 60Hz): ON: 55.0 W; SLEEP: 9.0 W; OFF: 2.0 W
  (Typical at 230V at 50Hz): ON: 53.0 W; SLEEP: 9.0 W; OFF: 2.5 W

  Dimensions

  IR & Non-Touch model: 30.03" x 18.00" x 2.43" / 762.8mm x 457.3mm x 61.6mm
  PCAP model: 30.03" x 18.00" x 1.99" / 762.8mm x 457.3mm x 50.5mm

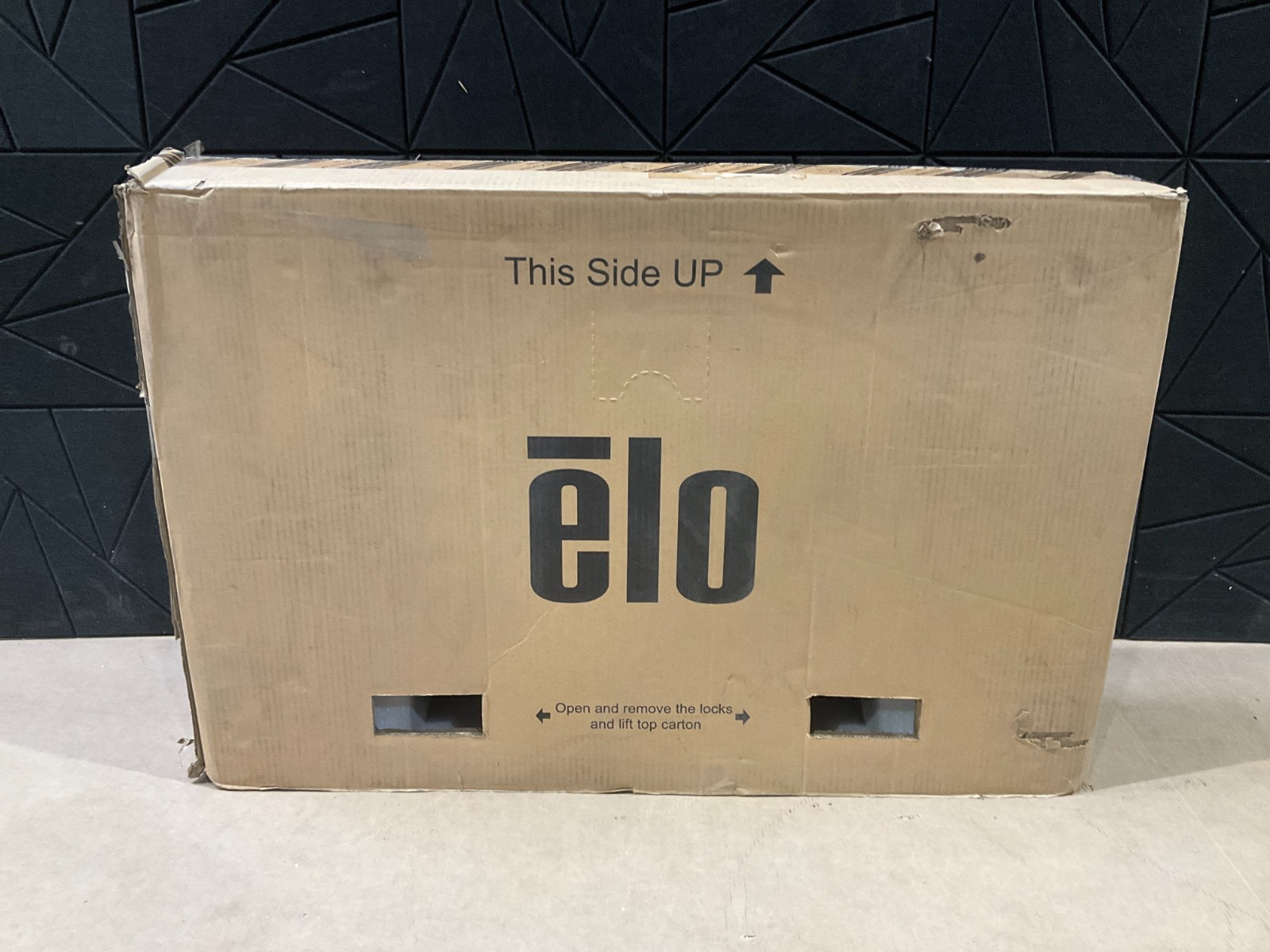

  Shipping Box Dimensions

  34.84" x 7.87" x 22.83" / 885mm x 200mm x 580mm

  Weight (Unpackaged)

  IR & Non-Touch:
  With ECMG2: 35.83 lbs / 16.25 Kg
  Without ECMG2: 29.21 lbs / 13.25 Kg
  PCAP
  With ECMG2: 34.88 lbs / 15.82 Kg
  Without ECMG2: 28.26 lbs / 12.82 Kg

  Weight (Packaged)

  IR & Non-Touch:
  Without ECMG2: 39.88 lbs / 18.09 Kg
  PCAP
  Without ECMG2: 38.51 lbs / 17.47 Kg

  Operating Temperature

  Portrait/Landscape Mode: 0°C to 40°C / 32°F to 104°F
  Table top Mode and with Intel OPS modules: 0° C to 35° C OR 32°F to 95°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%
  Storage: 10% to 95%

  Mounting Options

  VESA mount per MIS-F, 400, 400, 6MM

  Sealability

  Touchscreen sealed to bezel
  Touchscreen sealed to LCD

  MTBF

  50,000 hours demonstrated

  Warranty

  3-year

  Regulatory approvals and declarations

  UL, FCC (US) - Class A
  cUL, IC (Canada) CB (International safety)
  CE (Europe) - Class A
  CCC (China)
  EAC (Russia)
  VCCI (Japan)

  RFID Supported Protocols

  ISO - 14443-A
  ISO - 14443-B
  ISO – 15693

  What's in the Box

  HDMI cable (Type A plug to Type A plug), USB cable (Type A plug to Type B plug), power cable, IEC 60320-C5 to NA plug power cable, IEC 60320-C5 to EU/KR plug power cable, IEC 60320-C5 to UK plug, 3.5mm Audio Cable, Energy label according to EU Regulation

  Optional PCAP Stylus Pen

  E066148

  IDS Optional Accessories

  Barcode Reader – Elo P/N: E093433
  2D Barcode Scanner – Elo P/N: E926356
  Magnetic Stripe Reader – Elo P/N: E001002
  NFC/RFID Reader – Elo P/N: E001004
  Wallmount for IDS 02 Series – Elo P/N: E275050
  Webcam for IDS 02 Series – Elo P/N: E275233
  EMV Cradle for Ingenico ICMP (X-Series & IDS 02-Series) - Elo P/N: E200788
  EMV Cradle for Verifone E355 (X-Series & IDS 02-Series) - Elo P/N: E201363
  ECM Power Connector Module for IDS 02 Series – Elo P/N: E275433
  Stand for IDS 02 Series - Elo P/N: E275623
  IDS Side-mount Brackets - Elo P/N: E329508
  Wired OSD Remote - Elo P/N: E483757
  i3 3.4 GHz ECMG2C - No OS for IDS 02 Series - Elo P/N: E333775
  i3 3.4 GHz ECMG2C - Windows 7 for IDS 02 Series - Elo P/N: E333965
  i3 3.4 GHz ECMG2C - Windows 8.1 for IDS 02 Series - Elo P/N: E334168
  i3 3.4 GHz ECMG2C - Windows 10 for IDS 02 Series - Elo P/N: E991367
  i5 3.7 GHz ECMG2C - No OS for IDS 02 Series - Elo P/N: E334358
  i5 3.7 GHz ECMG2C - Windows 7 for IDS 02 Series - Elo P/N: E334542
  i5 3.7 GHz ECMG2C - Windows 8.1 for IDS 02 Series - Elo P/N: E334744
  i5 3.7 GHz ECMG2C - Windows 10 for IDS 02 Series - Elo P/N: E991988
  i7 4.0 GHz ECMG2C - No OS for IDS 02 Series - Elo P/N: E334949
  i7 4.0 GHz ECMG2C - Windows 7 for IDS 02 Series - Elo P/N: E335147
  i7 4.0 GHz ECMG2C - Windows 8.1 for IDS 02 Series - Elo P/N: E335345
  i7 4.0 GHz ECMG2C - Windows 10 for IDS 02 Series - Elo P/N: E992401
  ECMG2C Android Computer Module Kit for IDS 02 Series - Elo P/N: E336899
  OPS adaptor kit for IDS 02 Series - Elo P/N: E337104
  Note: All ELO-KIT-ECMG2C include the E275433 ECM Power Connector Module for IDS02
  Replacement Cable Kit - Elo P/N: E060080
