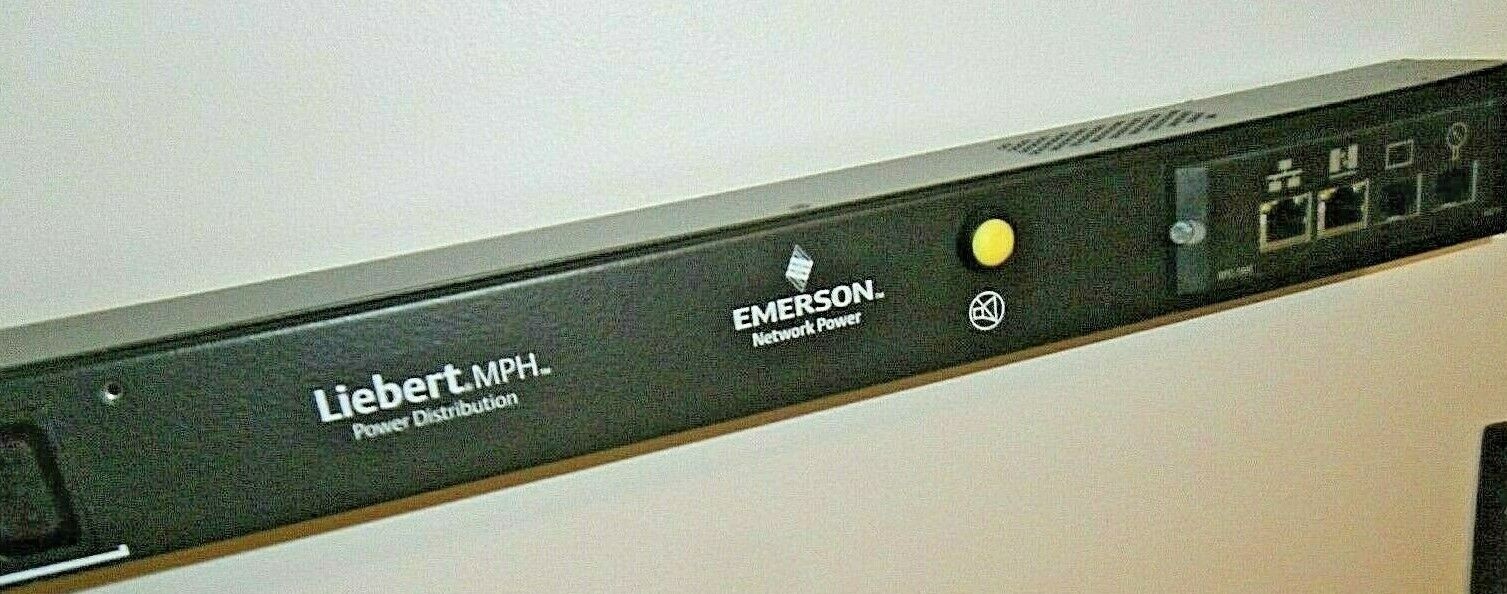

Emerson network powerMPH-NBV27NXXF 3027 outletsLIEBERT MPH Power Distribution
30 A max power
serial numberCY2014feb260231
made in Mexico
This rack PDU has 27 IEC-C13 outlets; 30 Amp rated.
All Liebert MPH systems are provided with factory integrated Liebert Rack PDU Card (RPC-1000) that provides web based remote monitoring via a direct IP network connection, Rack PDU Array interface connection to three additional Liebert MPH or Liebert MPX systems to allow viewing of up to four Rack PDU's on a single IP connection.
MechanicalHeight68.1 in. (1730 mm.)Width1.9 in. (50 mm.)Depth3.1 in. (80 mm.)EnvironmentalOperating Temperature32°F ─ 131°F (0°C ─ 55°C) for altitudes 10,000 ft (3000 meters) above sea level.Storage Temperature-4°F ─ 140°F (-20°C ─ 60°C)Relative Humidity0 ─ 95% non-condensing, non-corrosiveAltitude10,000 m (3,000 m max.), without power derating when operated within the temperature specified in section 1.4.A. Ambient temperature will be derated 5°C for each additional 500 m (1640 ft.)Electrostatic DischargeThe 120/230 VAC units are able to withstand an electrostatic discharge compliant to EN61000-4-2, level 3, Criteria A , without damage and without affecting the connected load.InputVoltage208-240Rated Amps30Max. Continuous Amps24kW*4.9Phase1Input Power Cord Length10 ft.PlugNEMA L6-30Output(27) IEC-C13
