EnGenius EWS7928FP-FIT Ethernet Switch EnGenius EWS7928FP-FIT Ethernet Switch
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: EWS7928FP-FIT Ethernet Switch 1 x Power Cord 1 x Rack Mount Kit 1 x RJ-45 Console Cable Quick Start Guide QR Code Mobile App QR Code
Application/Usage: Business
Product Description
This item is brand-new, factory sealed.
Product Highlights

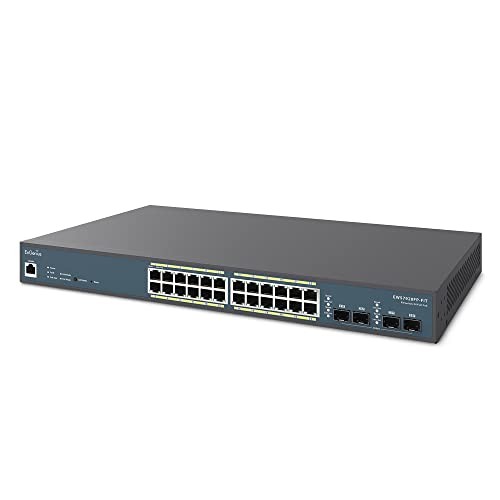

The EnGenius Fit EWS7928FP-FIT Managed Switch is a PoE+ Layer 2 plus 24-port Gigabit switch with a 410W PoE budget and 4 SFP uplink ports. It offers multiple management options for small business network environments, allowing you to select the cloud or on-premises management option that best suits your needs. With its business-class features, the EnGenius Fit managed switch provides secure, reliable, and high-performance switching while reducing capital and operating expenses for cost-conscious small businesses.
24 10/100/1000 Base-T GbE Ports
Full-featured Layer 2 plus switching
802.3at/af PoE+ ready on all ports with 410W PoE budget
56 Gbps switching capacity
Setup in minutes with app-based step by step instructions
Quick-scan device register, remote monitoring and troubleshooting
Real-time system metrics, analytics and remote configurations
Hybrid switch supports multiple management options
From anywhere cloud visibility and control
Monitor a site or multiple sites with no recurring cost or licensing fee
Security - access control list/port security; 802.1x authentication
IGMP & MLD snooping provides advanced multicast filtering & network efficiency Technical Specifications
Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports
24 10/100/1000 Mbps Ports
4 10/100/1000 Mbps SFP Ports
PoE Capable Ports
1-24 (802.3at/af)
All Gigabit Ethernet ports can output up to 30 Watts
Total PoE Budget
410W
Switching Capacity
56Gbps
SDRAM
256MB
Flash Memory
32MB
Packet Buffer Memory
512 KB
Address Database Size
8,000 MAC Addresses Physical Interface
LED Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Ports
Link/Activity/Speed (per Ethernet port)
SFP Ports
Link/Act LED
Reset Button Software Features
Multiple IP Interface
20 IPv6 address
ARP Table
Max. 192 ARP entries
Static ARP
Static 192 ARP entries
IPv4 Static Route
Max. 59 entries
IPv6 Static Route
Max. 5 entries Software Features (L2 Features)
MAC Address Table
8K Jumbo Frame
9K Multicast Group
Max 256 groups Port Security
Max. 256 Entries SSL Certificate
Certificate/Key Update L2 Features
802.1Q VLAN tagging
VLAN Table
Port-based VLAN
Voice VLAN
GARP VLAN Registration Protocol
802.1d Spanning tree
RSTP
CIST
MSTP
802.3ad Link Aggregation
Loopback Detection L3 Features
IGMP Snooping
MLD Snooping
DHCP Snooping
DHCP Relay
Static Route Port Settings
Multicast Filtering
EEE
Port Isolation
Port Mirror
Jumbo Frames
LLDP Security
802. 1X Radius Authentication Protocol
Access
Web
HTTP Service
HTTPs Service
Command Line Interface (CLI)
Telnet Service
SSH Service
Port Security
Radius Server
DoS Prevention System Settings
IP Settings
IPv4 Management
IPv6 Management
IPv4 Network
ARP Table
ARP Statistics
Simple Network Time Protocol (SNTP) Analyze
Log
Local Logging
Remote Logging Diagnostic
Cable Diagnostics
Ping Test
IPv6 Ping Test
Trace Route
Connection Diagnostic Access Control List (ACL)
MAC Based ACL
MAC ACE
IPv4 ACL
IPv4 ACE
IPv6 ACL
IPv6 ACE
ACL (Port) Binding SNMP
SNMP v1/v2c/v3 Support RMON
RMON 1,2,3,9 QoS
CoS Mapping
DSCP Mapping
Port CoS
Bandwidth Control
Storm control
Advanced Mode Environmental and Physical
Temperature Range
Operating: 32 to 122oF/0 to 50oC
Storage: -40 to 158oF/-40 to 70 oC
Humidity (Non-Condensing)
5% - 95% SpecificationManagement & ProtocolsManageableYesPower DescriptionPoE Budget410 WPoE (RJ-45) PortYesPhysical CharacteristicsForm FactorRack-mountableWeight (Approximate)10.62 Warranty1 YearInterfaces/PortsNetwork (RJ-45)YesUplink PortYesPort/Expansion Slot Details
- 24 x Gigabit Ethernet PoE+
- 4 x Gigabit Ethernet Expansion Slot
Total Number of Network Ports24ModularYesI/O ExpansionsTotal Number of Expansion Slots4.0Number of SFP Slots4Expansion Slot TypeSFP (mini-GBIC)General InformationBrand NameEnGeniusMarketing Information The EnGenius Fit Managed Switch EWS7928FP-FIT is a 24-port Gigabit PoE+ Layer 2 plus switch with a 410W PoE budget and 4 SFP uplink ports. It offers multiple management options for small business network environments, allowing you to select the cloud or on-premises management option that best suits your needs. With its business-class features, the EnGenius Fit managed switch provides secure, reliable, and high-performance switching while reducing capital and operating expenses for cost-conscious small businesses. Product TypeEthernet SwitchProduct NameEWS7928FP-FIT Ethernet SwitchManufacturerEnGenius Technologies, IncManufacturer Part NumberEWS7928FP-FITProduct ModelEWS7928FP-FITProduct LineFitPackaged Quantity1Media & PerformanceEthernet TechnologyGigabit EthernetMedia Type Supported
- Twisted Pair
- Optical Fiber
Network Technology
- IEEE 802.1x
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.3af
- IEEE 802.1Q
- IEEE 802.1D
- IEEE 802.3ad
- IEEE 802.3at
