Engenius EAP9550 Wireless N 300Mbps AccessPoint Repeater INCL CABLE & PSU - NEW Dear customer, When there might be a difference between the automatic generated specifications by the system, and the hand written/typed description, then please be aware that the only correct description is what's written by our selves here in the description.
Specifications above might be slightly different.
Thanks for your understanding.
NEW OPEN BOX
INCLUDING NETWORK CABLE & POWER SUPPLY
ORIGINAL BOX See photos for actual item! Price isfor 1 item Features - Aesthetic "Smoke Detector" Design - Minimal footprint and no protruding antennas Designed to blend in to various business environments. Unobtrusive design prevents tampering to protect your investment.
- Wireless N 300Mbps Speed - State of the Art 300Mbps wireless speed for uninterrupted wireless connection. Speed 6X faster than standard 802.11g and ideal for large file transfer applications from advanced engineering solution to video conference meeting.
- Embedded MIMO Smart Antenna Design - Two transmit and receive spatial streams delivers up to 300Mbps data rate with high Gain 4dBi MIMO Smart Antennas to deliver wider wireless coverage. Designed to be deployable out of the box.
- Universal Repeater - Extends WiFi coverage into dead spots. Minimizes trenching and cabling cost.
- Multiple Wireless Names (AP Mode) - Broadcasts multiple SSID's in one device and permits different levels of network access (VLAN Tagging).
- Power-over-Ethernet (802.3af) Compliant - Power and data over one single cable for convenient installation.
- Intelligent Quality-of-Service (QoS) Technology - Facilitates bandwidth priority for multimedia applications including VoIP phone call, video streaming, online gaming.
Hardware - MCU: RT3052
- Memory: 32MB SDRAM
- Flash: 4MB
- Physical Interface:
- LAN One 10/100 Fast Ethernet RJ-45
- Reset Button
- Power Jack
- LEDs Status:
- Power (Status)
- LAN (10/100Mbps)
- WLAN (Wireless Connection)
- Power Requirements:
- Power Supply: 90 to 240VDC ± 10%, 50/60Hz (Depends on different countries)
- Active Ethernet: (Power-over-Ethernet, IEEE 802.3af) 48VDC/0.375A
- Device: 12V/1A
- Regulation Certifications: FCC Part 15, UL, CE
RF - Frequency Band: 2.400~2.484GHz
- Media Access Protocol: Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA)
- Modulation Technology: OFDM: BPSK, QPSK, 16-QAM, 64-QAM, DBPSK, DQPSK, CCK
- Operating Channels: 11 for North America, 14 for Japan, 13 for Europe
- Receive Sensitivity (Typical) IEEE 802.11n
- MCS8 @ -90dBm
- MCS15 @ -70dBm
- Receive Sensitivity (Typical) IEEE 802.11g
- 6Mbps @ -92dBm
- 54Mbps @ -72dBm
- Receive Sensitivity (Typical) IEEE 802.11b
- 1Mbps @ -93dBm
- 11Mbps @ -89dBm
- Available Transmit Power IEEE 802.11n/g
- 18dBm @ 6~9Mbps / MCS9
- 16dBm @ 12~18Mbps / MCS11
- 14dBm @ 24~36Mbps / MCS13
- 13dBm @ 48~54Mbps / MCS15
- Available Transmit Power IEEE 802.11b
Antenna - Directional Embedded Antenna: 2 x Peak Gain 4dBi
- Standard: IEEE 802.11n & 802.11b/g
- Frequency Range: 2.4 to 2.49GHz
- V.S.W.R.: 2:1
- Feed Impedance: 50Ohm
- Power Handling: 30dBm
- Interface: Two sets of soldering pads for 50ohm, 1.13mm diameter, micor coax cable
- Antenna Dimensions: 100mm x 50mm
- Weight: 0.03oz (9g)

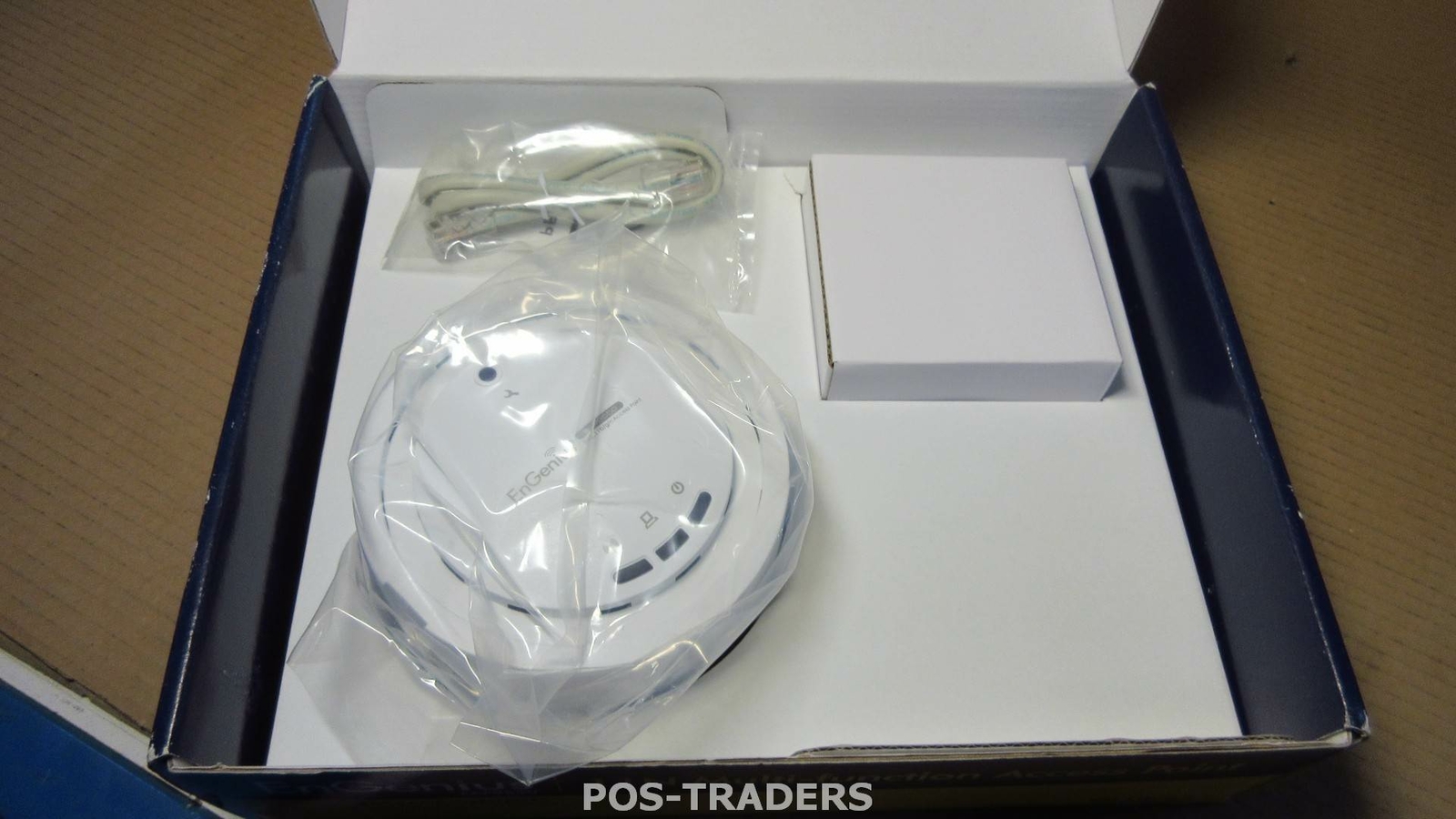

Comes as shown on picture, if something is noton the picture it's not included unless stated otherwise.
