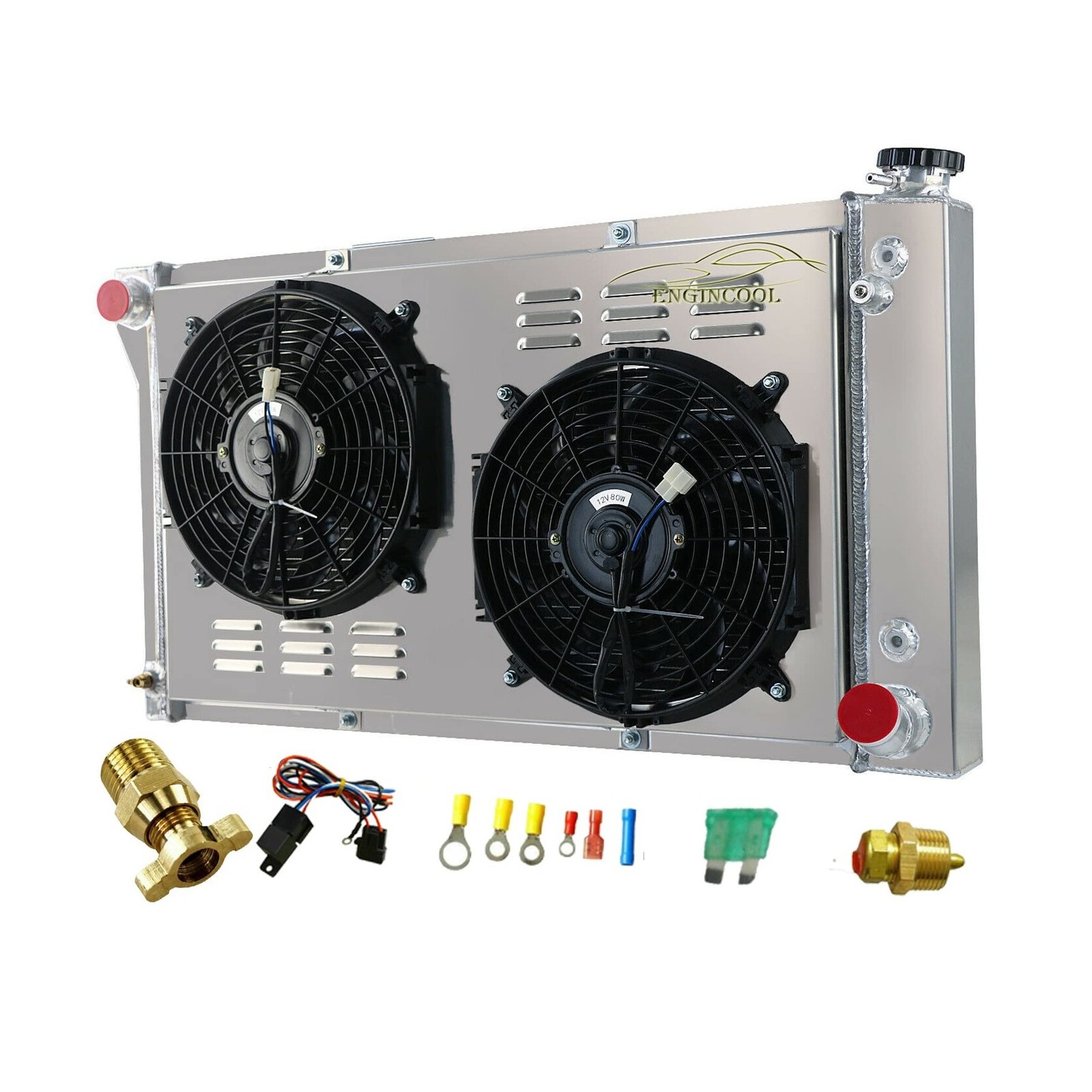

EnginCool 4 Row Core Radiator + Shroud Fan + Thermostat Relay Kit for 1967-1972 Chevy Gmc C/K Series C10 C20 C30 K10 K20 K25 Trucks Blazer Pickup Suburban Van All Aluminum
Product Details
- Manufacturer: MotorPartsZone
- Brand: EnginCool
- Model:
- Item Weight: 28.5 pounds
- Package Dimensions: 36.4 x 21.9 x 8.7 inches
- Item model number:
- Manufacturer Part Number: MotorPartsZone00A4
- Date First Available: October 9, 2021
- Core Size : 28.27" H x 16.06" W x 2.44" T ; Overall Size : 34.06" H x 19.1" W x 6.3" T
- Upper inlet: 1.5" located;Lower outlet: 1.75" located;Transmission Oil Cooler:26305G1/4(Z)
- Easy To Install: Light weight direct bolt-on replacement, stronger & higher capacity for coolant
- Includes CNC machined filler neck and cap,OEM Style Brass Petcock Drain
- 12 Months warranty ; If you have any questions, please feel free to contact us, we will solve it for you
Fitment: For Chevy C/K Series 10 20 30 Pickup Suburban V8 1967-1972 For ChevyBlazer 5.0L 5.7LV8 1969-1972 For G/P Series P10 P20 P30 G10 G20 G30 Van1967-1979 For GMC Jimmy I6 V8 1970 1971 1972 For GMC C/K Series K25/K2500K35/K3500 C15/C1500 Pickup Suburban 1967-1972 For G/P Series P15 P25 P35 G15G25 G35 Van 1967-1979 This Listing Is Including: 1 X 4-Row Aluminum Radiator(Includes Radiator Cap) 1 X Aluminum Shroud 2 X 12" Fans (Includes mountingkits) 1 X Thermostat Relay Kit Radiator Details: Core Material: All AluminumTank Material: T-5057 Aircraft Grade Aluminum Surface Finish: Aircraft GradeRaw Aluminum Aircraft Grade Aluminum 2mm Thick Tanks and Fittings Billet FillNeck With Cap Mounting Style:Bolt-On Features:100% Leak Tested, 4 Rows,Crossflow Radiator, Durability Tested, No Drilling or Modifications Needed forInstallation Part Number: TYC369SC369 CSF369 RK369 A369,,8010367,CU369,SPTCU369,9211,366 FAN SPEC:Maximum Fan CFM: 2300±200 Fan Diameter X Height X Thickness:12.05" X 12.05" X2.5" Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 amps Maximum FanRPM: 2,250 rpm Relay Kit Instructions: RED + connect directly to battery.WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUEwire goes to the Fans. Thermostat Relay Kit: Universal fit for any automotivevehicle and electric fan. Activates by grounding electric fans at presettemperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPTthread-in brass probe w/ 1/2" NPT adapter included.
