• 【Brand New and High Quality】 Sunhans SH-RC24G3W 2.4GHz WiFi signal booster,with Brand New Aluminum-alloy case by CNC, anti-interference.Before shipping it have through repeated testing to ensure High Quality.Designed for Drone, UAV, RC equipment.
• 【Excitingly Small,Simply Plug and Play】 Sunhans eSunRC SH-RC24G3W Signal Amplifier,1.6 oz weighs,2.9" x 1.5" x 0.4"size,excitingly small and thin.It can be easily installed in DJI drones,XIRO drones,RC remote control to extend WiFi signal range, plug and play,no software required.
• 【Compatible with any 2.4GHz WiFi Device】 Sunhans 2.4G 3W Wireless Repeater,5-16V wide voltage range, frequency range 2400~2500MHz, can support any 2.4GHz WiFi Device,compatible for 2.4G DJI, Yuneec, 3DR, XIRO drones; Parrot, JTT and Blade UAV. It also could suitable for router, IP camera, RC helicopter, RC race boat, Bluetooth, walkie-talkie.
• 【Signal Booster Coverage Range and install way】 Radio side of SH-RC24G3W Booster connected with drones or remote control ,antenna side connected with antenna. Max 3W(35dBm) output power,transmit gain 15db~18db can greatly improve flying distance 1~2 times in idea situation.
• 【Gift box package and full kit】sunhans SHRC24G3WP Wireless signal booster Extender full kit, Include 1XSH-RC24G3W eSunRc WiFi booster,1X RG141 20cm cable SMA male to RP-SMA male,1X DC 2.5” to 12V 5.5” adapter,1X DC 2.5” to USB adapter,1X DC 2.5” to JST adapter,1X Mounting Velcro,1X User Manual

Technical Specifications:
Booster Model: SH-RC24G3W Operating Range:2.4~2.5 GHz
Operating Mode:Bi-directional, half-duplex, time division duplex senses RF,carrier from transmitter and automatically switch receiving to transmitting mode.

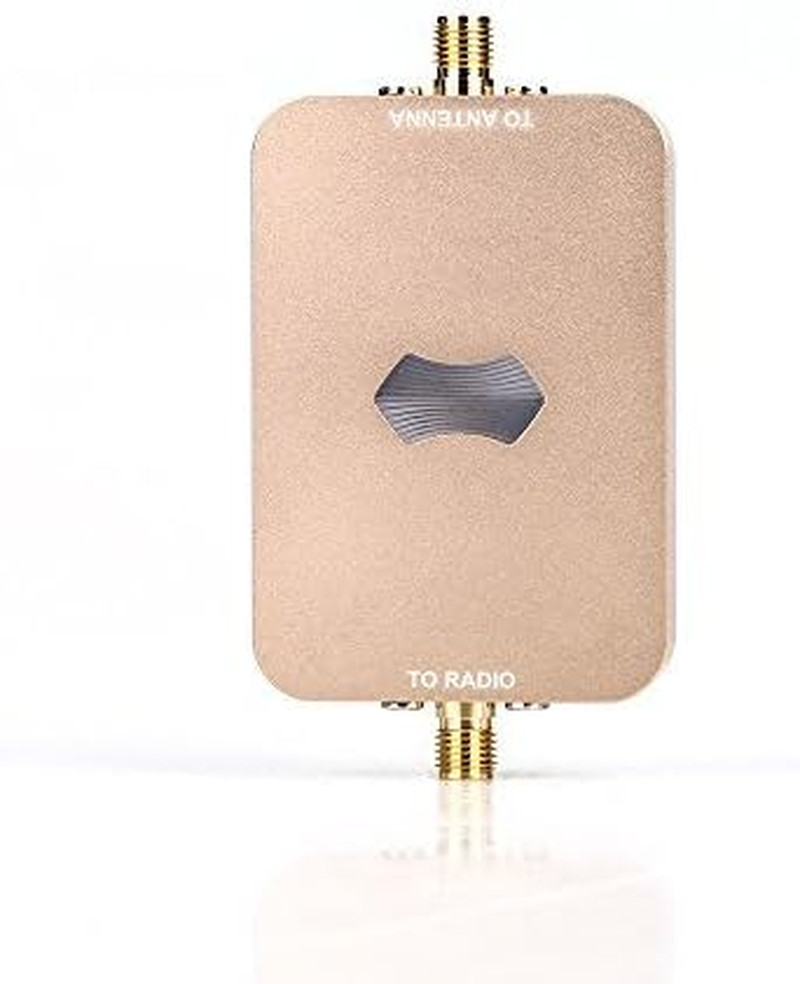

Connector Type:SMA Receptacle 50ohm,
To radio SMA female(hole inside),
To antenna RP-SMA female(pin inside)
Input Power:0~20 dBm
Transmit Gain:15-18dB
Output Power:3000mW (35dBm)
Receiver Gain:≤ 12 dB
Noise Figure:≤3.5 dB typical
Frequency Response:±1dB over operating range
Supported voltages: 5V~16V/2A DC
Operating Temperature:-20°C to + 70°C
Operating Humidity:Up to 75% relative humidity
Material:Cast Aluminum
Booster Weight:1.6oz(46g)
Booster Size:2.9 x 1.5 x 0.4 inch (7.3 x 3.8 x 1cm)
Package Weight: 6.35oz(180g)
Package Size:4.72 x 4.33 x 2.55 inch(12 x 11 x 6.5cm)
Package contents
1XSH-RC24G3W eSunRc WiFi booster
1XRG141 20cm cable SMA male to RP-SMA male
1XDC 2.5” to 12V 5.5” adapter
1XDC 2.5” to USB adapter
1XDC 2.5” to JST adapter
1XMounting Velcro
1XUser Manual
(Output power of the device = input power of the booster)
Normally,suitable input power of SH-RC24G3W booster is 0~20dBm, the appropriate input is 18~20dBm.
If the output power more than 20dBm,then need to add long cables or attenuators to meet the input power of the booster.
If the power of the device is small, do not add cables or add cables as short as possible to reduce signal attenuation.
(Note: Not to choose the product power close to the device's output power,a higher power than the original equipment should be selected to ensure better signal amplification.)
