The Extreme Networks X460-G2-48p-10GE4 Ethernet Switch is a fully managed, rack-mountable unit designed for high-speed network connectivity. With 48 LAN ports and a maximum data transfer rate of 10 Gbps, it is ideal for enterprise networking and server applications requiring fast and reliable Ethernet connections. This switch supports 10 Gigabit Ethernet technology and features SFP connectors for added flexibility in network management. Built by the trusted brand Extreme Networks, this Ethernet switch offers a range of network management features to ensure efficient and secure data transfer.Switches were used as the backbone for the wi-fi infrastructure at venue that was recently upgraded to a newer model. In great condition, have dual PSU's, power cables, and boxes of 10G SFPs.
*** Additional stock of smaller 10 port switches available, as well as core network switches and chassis. ***Overview:
The ExtremeSwitching X440-G2 series is a scalable cost-effective family of edge switches powered by Extreme Networks ExtremeXOS, a highly resilient OS providing continuous uptime, manageability and operational efficiency. The X440-G2 series switches provide high-performance routing and switching, flexible stacking, PoE-plus support and comprehensive security, while extending the benefits of ExtremeXOS to the campus edge.
The X440-G2 Series easy-to-use, yet powerful, management services include role-based policies for controlled access to specific network applications. Select X440-G2 Series switches can also be cloud-managed via ExtremeCloud™, Extreme Networks innovative single-pane subscriptionbased management solution.

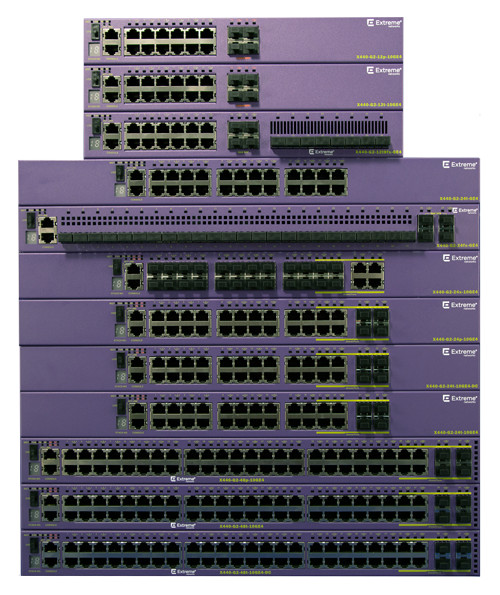

Hardware Models
- 12, 24, and 48-port GbE models
- 4 x 1GbE available uplink ports upgradeable to 10GbE via software license (except for extended temperature models)
- SFP, Copper PoE-Plus, non-PoE and 100Base-FX models
- Extended 0°C to 60°C operating range models
- Two SummitStack-V stacking ports (except for extended temperature models) enable up to 8 switches to be stacked together
- All configurations non-blocking full duplex
- 10GbE LRM support on 48-port switch models
Features
- Fixed power supplies, along with RPS
- Full PoE-Plus 30W power on 48-port models
- DC Power option
- Energy Efficient Ethernet
- Extreme Management Center Support
Features:Intelligent Switching
The X440-G2 Series supports sophisticated and intelligent Layer 2 switching, as well as Layer 3 IPv4/IPv6 routing. They also support rolebased policy capabilities, Provider Bridges, offerirectional Access Control Lists, as well as granular (8 Kbps) ingress/egress bandwidth control. Altogether, these enable fine-grained control over traffic flows, as well as controlled access to specific network services and application.
All X440-G2 base models come equipped with 4 upgradeable 1GbE ports, resident on either the faceplate or rear panel of each model. These 1GbE ports can be upgraded to 10GbE Ethernet via a simple software license. This gives administrators the option to increase switch uplink speeds without replacing the entire switch.
IEEE 802.3AT Poe-Plus
X440-G2 Series switches support both IEEE 802.3at PoE-Plus and IEEE 802.3af PoE to enable connection of standards compliant PoE devices today and into the future. Power over Ethernet allows connection of Ethernetpowered devices, such as wireless access points, Voice over IP phones, and security cameras. The X440-G2 can also support full PoE-Plus 30W power across all 48 ports with an external redundant power supply (RPS).
The X440-G2 supports role-based policies that can be centrally administered through the ExtremeManagement (formerly Netsight) policy manager. This policy framework empowers network administrators to define distinct roles or profiles to represent industry-specific operational groups that may exist in an education or a business environment (e.g., administrator, teacher, student, guest). Each defined role can then begranted individualized access to specific network services and applications and these access privileges remain associated with users as they move across both wired and wireless network access points.
Provides a single plane of glass for cloud managing both the wired and wireless components of your network. Zero touch provisioning also significantly reduces deployment times. Select X440-G2 models have been enabled for use with ExtremeCloud.
USB 2.0 Support
All X440-G2 switches have a USB 2.0 port that is supported as a port to a storage device for all EXOS versions of 22.1 or higher.
The X440-G2 include three switch models that support 0°C to 60°C operating range (Models 16539, 16540 and 16541) to address the unique environmental needs of specific industries and/or locations.
The X440-G2 provides comprehensive security, including:
- User policy and host integrity enforcement, and identity management.
- Threat detection and response instrumentation to react to network intrusion.
- Denial of Service (DoS) protection and IP security against man-in-the-middle and DoS attacks.
These features ensure both the security of the network and of users accessing the network.
Audio Video Bridging (AVB)
The X440-G2 series supports IEEE 802.1 Audio Video Bridging to enable reliable, real-time audio/video transmission over Ethernet. AVB technology delivers the quality of service required for today’s high-definition and time-sensitive multimedia streams.
Extreme Networks Pricing NewExtremeSwitching X440-G2 SeriesExtremeSwitching X440-G2-12P-10GE4 Switch
12 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+, IEEE 802.3at PoE-plus, ExtremeXOS Edge license#16531
New from Website: $3,488.00
