New Product,High Quality,buy with confidence !
--With USB 3.0 fast data transfer speed, It can capture SDI HD Video Sources from devices with SDI output
such as HD Camera,HD Medical endoscope,Medical imaging,TV, Gameplayer etc.
-- Capture resolution up to 1080p at 60fps
-- Audio & Video recordability from external devices via SDI port, simple file save and share on the computer,
compatible with popular streaming software and services like OBS Studio, VLC, etc
-- Easy to Record & Stream for Windows, Mac OS & Linux,Just connect the video capture to a computer with
a USB 3.0 cable, connect it to a video source device with a SDI cable, run a recording software on the computer
(such as OBS Studio).Take it anywhere,Share gameplay and have fun with your friends wherever you are.
-- No driver or external power supply required, a Low latency game, live streaming; Share to youtube, facebook,
and twitter,etc.
Product Features:
- Capture HD SDI video in 1080p60 resolution.
- With 1080p60 SDI pass-through.
- UVC standard, manual driver installation is not needed.
- Supports multiple system: Windows, Mac, Linux, Android.
- Supports most of third party video capture softwares.
- Mutiple devices on one host, can connect up to 6 devices on one computer.
- Using as screen sharing for online meeting.
Specifications:
- Host Interface: USB 3.0 UVC
- Video Input: SDI, Audio Input: SDI
- Video Output: SDI, Audio Output: SDI
- Resolution: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i),
1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p),
1920 x 1080 (60p).
- Size: approx.107(L) x 55(W) x 21(H) mm, 80g
Software Compatibility:
- OBS Studio (windows,OS X); Windows Media Encoder (Windows);
Adobe Flash Media Live -Encoder (Windows, OS X); Real Producer Plus (Windows); VLC (Windows,
OS X, Linux); QuickTime Broadcaster (OS X); QuickTime Player (OS X); Wirecast (Windows,OS X);
vMix(Windows); Potplayer(Windows)
- Multiple devices on one host up to six devices.
- LED status indicator.
System Requirement:
Windows 7,8,10, OS X 10.9 or later, Linux. PC: Intel Core i5-3400 + NVIDIA GT630,
NB: Intel Core i7-3537U 2.0 GHz + NVIDIA GT735, Mac: i5 quad-core or above,
VGA card supporting DirectX 10, Sound card, 4GB RAM, Powered USB 3.0 port:
Intel chipset with native USB 3.0 host controller (Renesas, Fresco ...)
Package Content:

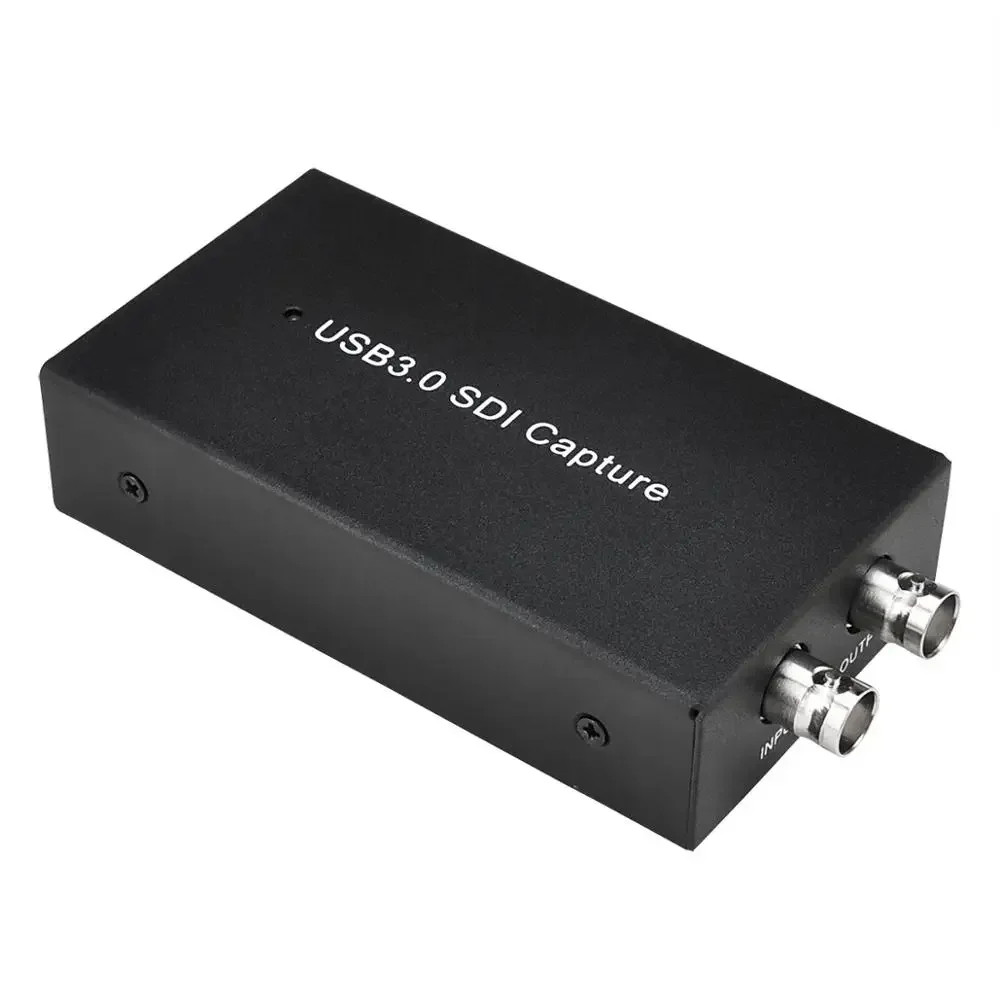

1PCS SDI-USB 3.0 Video Capture Card
1PCS USB 3.0 Cable
1PCS User Guide
No retail box and other accessories,if any need,pls contact us before purchase.
PLS Attention :
