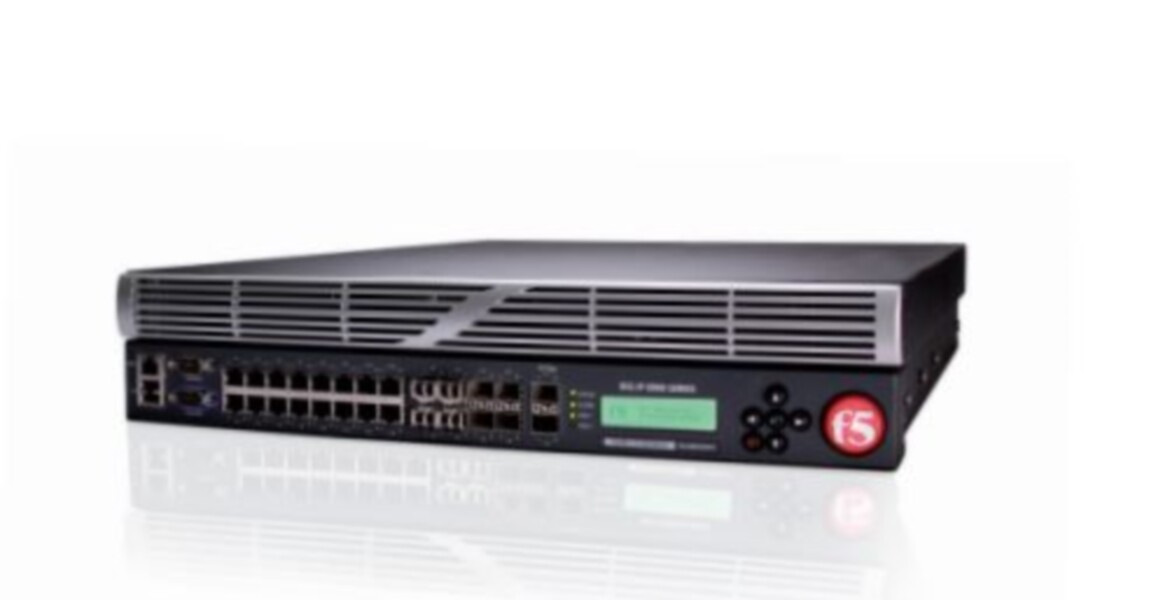

ShopwyzeElectronics, Networking, Test Equipment, TelecomF5-BIG-LTM-6900-F-RTMOS V 11.6.xFIPS, ASM, AFM, MAX SSL LicenseRefurbished - Like New100% GuaranteedFree ground shipping (domestic only)90 day replacement warranty30 Day Return PolicyOverview:

BIG-IP platforms feature extreme capacity for handling the heaviest traffic loads at both Layer 4 and Layer 7. F5 solutions outpace every other product on the market in terms of key performance metrics in Layer 4, Layer 7, SSL processing, and HTTP compression – all running concurrently. These powerful platforms provide superior scalability for making in-depth Layer 7 decisions with extensive server and application acceleration capabilities for a high performance and unified network device.

This unit sells for$180,000.00 USDwhen purchased new. Buy it here and save big. It comes with all the features described below.

This unit is refurbished and is like new. It has been rigorously tested to make sure that all the ports, protocols, and function work properly. They are reset to factory settings and the password is set to factory defaults. The licenses are intact. The unit is ready for your configuration.

Identical units are available for HA applications -- please call for details.

Item Specifications:

• L7 requests per second: 1.2M, L4 connections per second: 400K
• Maximum L4 concurrent connections: 6M
• Throughput: 6 Gbps
• Dual quad core CPU - 8 processors
• 16x Gig Cu ports
• 8x SFP 500 TPS
• Max TPS: 25,000 TPS
• 4 Gbps bulk SSL TPS
• 50Mbps hardware compression
• Other included licenses (see style="font-family: Arial; font-size: 12px;">
  • F5-BIG-LTM-6900-F-R
  • Version 11.6.x with Max SSL License intact -25,000 SSL TPS
  • LTM, FIPS, ASM, AFM, APM LICENSES
  • Serial cable
  • 2x AC Power and power cables
  • Set to factory defaults - ready for your configuration


  Console OutputFeaturesOthersConsole OutputFeaturesOthers

  Active Modules

  10,000 CCU (FAQMYMK-DOAZRWH)

  AFM, 6900 (GECXDXT-QZSCHVU)

  SSL, Max TPS

  Routing Bundle

  PSM

  APM, 500 CCU (ZEKQGLO-AJBSIHP)

  Anti-Virus Checks

  Base Endpoint Security Checks

  Firewall Checks

  Network Access

  Secure Virtual Keyboard

  APM, Web Application

  Machine Certificate Checks

  Protected Workspace

  10,000 CCU

  ASM, Unlimited (IQKLSGX-TKWVQMI)

  LTM, FIPS, 6900 (UHKXBAS-VBSBWHV)

  APM, Limited

  LTM, Base

  FIPS, 2000 TPS

  IPV6 Gateway

  Rate Shaping

  50 MBPS COMPRESSION

  Anti-Virus Checks

  Base Endpoint Security Checks

  Firewall Checks

  Network Access

  Secure Virtual Keyboard

  APM, Web Application

  Machine Certificate Checks

  Protected Workspace

  SSL, Max TPS

  Routing Bundle

  Ram Cache

  PSM

  Application Acceleration Manager, Core

  App Tunnel

  Remote Desktop

  FIPS, Max TPS







  Sys::Software Status

  Volume Product Version Build Active Status

  MD1.1 BIG-IP 11.6.2 1.0.507 yes complete

  MD1.2 BIG-IP 11.6.2 1.0.507 no complete

  MD1.3 none none none no complete




  Processing:6 Gbps12 GbpsHardware SSL:Included: 500 TPSMaximum: 25,000 TPS,

  4 Gbps bulk encryption

  Included: 500 TPSMaximum: 58,000 TPS,

  9.6 Gbps bulk encryption

  FIPS SSL:
  Processing:6 Gbps12 GbpsHardware Compression:Included: 50 MbpsMaximum: 5 GbpsIncluded: 50 MbpsMaximum: 8 GbpsProcessor:Dual CPU, dual core (4 processors)Dual CPU, quad core (8 processors)Memory:8 GB16 GBHard Drive:Two 320 GB drivesTwo 320 GB drivesGigabit Ethernet CU Ports:1616Gigabit Fiber Ports (SFP):8 LX; SX or copper (4 SX included)8 LX; SX or copper (4 SX included)10 Gigabit Fiber Ports
  (SFP+):N/A2 SR (sold separately)Power Supply:Dual 850W includedDual 850W includedTypical Consumption:300W (110V input)450W (110V input)Input Voltage:90-246 VAC +/- 10% auto switching, 50/60hz90-246 VAC +/- 10% auto switching, 50/60hzTypical Heat Output:1024 BTU/hour (110V input)1536 BTU/hour (110V input)Dimensions:3.5”H x 17.75”W x 20.75”D 2U industry standard rack-mount chassis3.5”H x 17.75”W x 20.75”D 2U industry standard rack-mount chassisWeight:45.5 lbs. (dual power supply)45.5 lbs. (dual power supply)Operating Temperature:32° to 104° F (0° to 40° C) per Telcordia GR-63-CORE 5.1.1 and 5.1.232° to 104° F (0° to 40° C) per Telcordia GR-63-CORE 5.1.1 and 5.1.2Operational Relative Humidity5 to 85% @ 40º C, per Telcordia GR-63-CORE 5.1.1 and 5.1.25 to 85% @ 40º C, per Telcordia GR-63-CORE 5.1.1 and 5.1.2Safety Agency Approval:UL 60950 (UL1950-3) CSA-C22.2 No. 60950-00 (bi-national standard with UL 60950)
  CB TEST CERTIFICATION TO IEC 950 EN 60950UL 60950 (UL1950-3) CSA-C22.2 No. 60950-00 (bi-national standard with UL 60950)
  CB TEST CERTIFICATION TO IEC 950 EN 60950Certifications/
  Susceptibility Standards:EN55022 1998 Class AEN55024 1998 Class A

  FCC Part 15B Class A

  VCCI Class A

  EN55022 1998 Class AEN55024 1998 Class A

  FCC Part 15B Class A

  VCCI Class A

  We carry a large inventory of other F5 equipment including (but not limited to) the list below. If you have any questions please call or text at +1 510.952.7148

  F5 BigIP Viprion 4400 / 4800 with blades + performance bundle licensing , version 11.4.x and up

  F5 BigIP Viprion C2500 with blades + bundled licensing , version 11.5.x and up

  F5 BigIP LTM / GTM / ASM 8900 and 8950 w/ various licensing , version 11.x and up

  F5 BigIP LTM / GTM / ASM 10000 seriesw/ various licensing , version 11.x and up

  F5 BigIP LTM 4000s seriesw/ various licensing , version 11.x and up

  F5 BigIP LTM 2000s seriesw/ various licensing , version 11.x and up

  F5 BigIP LTM / GTM / ASM 3900seriesw/ various licensing , version 11.x and up

  F5 BigIP LTM / ASM 3600seriesw/ various licensing , version 10.2.4, 11.x and up

  F5 BigIP LTM / GTM 1600seriesw/ various licensing , version 10.2.4, 11.x and up

  F5 BigIP LTM / GTM1500, 3400, 6400, 6800, 8400, 8800 vresion 10.2.x and up
