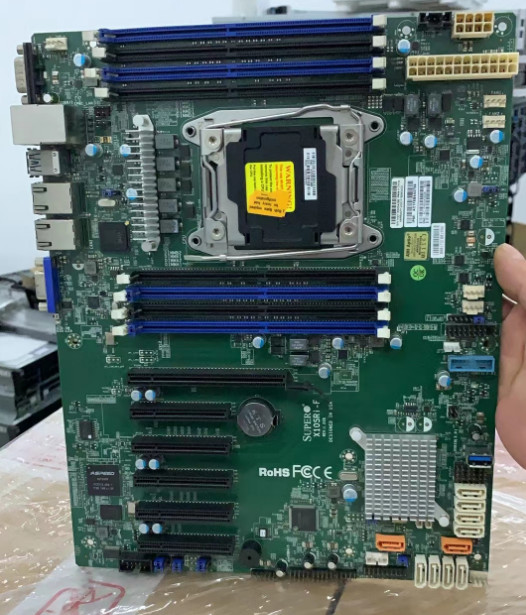

MBD-X10SRi-F· X10SRi-F
Physical Stats
Form Factor· ATXDimensions· 12" x 9.6" (30.48cm x Intel® Xeon® Processor E5-1600 v3, Intel® Xeon® Processor E5-1600 v4, Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4· Single Socket LGA-2011-3 (Socket R3) supported, CPU TDP supports Up to 145W TDPCores / Cache· Up to 22 cores † / Up to 55MB† cacheNote· † BIOS version 2.0 or above is requiredNote· ** Motherboard supports this maximum TDP. Please verify your system can thermally support.
System Memory
Memory Capacity· Up to 256GB Registered ECC RDIMM, DDR4-2400MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2400MHz, in 8 DIMM slotsMemory Type· 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bitDIMM Sizes· RDIMM: 4GB, 8GB, 16GB, 32GB· LRDIMM: 32GB, 64GB· 3DS LRDIMM: 128GBMemory Voltage· 1.2VError Detection· Corrects single-bit errors· Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset· Intel® C612SATA· Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10IPMI· Support for Intelligent Platform Management Interface v.2.0· IPMI 2.0 with virtual media over LAN and KVM-over-LAN support· ASPEED AST2400 BMCNetwork Controllers· Dual LAN with Intel® Ethernet Controller I350-AM2Supports 1GbE, RJ45 output
Realtek RTL8211E PHY (dedicated IPMI)Graphics· ASPEED AST2400 BMC
Input / Output
SATA· 10 SATA3 (6Gbps) portLAN· 2 RJ45 Gigabit Ethernet LAN ports· 1 RJ45 Dedicated IPMI LAN portUSB· 8 USB 2.0 ports (2 rear + 6 via headers)· 4 USB 3.2 Gen1 ports (2 rear + 1 via header + 1 Type A)Video Output· 1 VGA portSerial Port / Header· 2 COM Ports (1 rear, 1 header)
2 fast UART 16550 serialTPM· TPM HeaderExpansion Slots
PCI-E· 1 PCI-E 3.0 x16,· 1 PCI-E 3.0 x4 (in x8 slot),· 2 PCI-E 3.0 x8· 1 PCI-E 2.0 x4 (in x8 slot)· 1 PCI-E 2.0 x2 (in x8 slot)
System BIOS
BIOS Type· 128Mb SPI Flash EEPROM with AMI BIOSBIOS Features· Plug and Play (PnP)· APM 1.2· DMI 2.3· PCI 2.3· ACPI 1.0 / 2.0 / 3.0 / 4.0· USB Keyboard support· SMBIOS 2.7.1· UEFI 2.3.1· RTC (Real Time Clock) Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, WatchdogPower Configurations· ACPI Power Management· Keyboard Wakeup from Soft-Off· CPU Fan auto-off in sleep mode· Power-on mode for AC power recovery
PC Health Monitoring
Voltage· +12V, +3.3V, +5V, +5V standby, HT, VBATTemperature· Monitoring for CPU and chassis environment, CPU thermal trip support, I2C temperature sensing logic, Thermal Monitor 2 (TM2) support, PECILED· CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UIDOther Features· Chassis intrusion detection, Chassis intrusion header, Chipkill support, RoHS, Halogen Free
Operating Environment
Operating Temperature Range· 0°C ~ 60°C (32°F ~ 140°F)Non-Operating Temperature Range· -20°C ~ 60°C (-4°F ~ 140°F)Operating Relative Humidity Range· 10% ~ 85% (non-condensing)Non-Operating Relative Humidity Range· 10% ~ 95% (non-condensing)
