SPEC SHEET

Features:

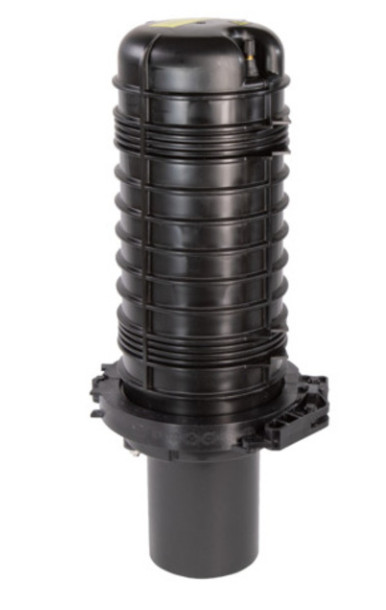

• Single-ended, O-ring sealed dome closure for splicing feeder and distribution cables
• Gel cable sealing technology allows easy adding or removing of a wide size range of cables
• Compatible with most common cable types: e.g. loose tube, central core, ribbon fiber
• FOSC splice trays hinged for access to any splice without disturbing other trays
• Closure can be used in aerial, pedestal and underground (up to 5 meters) environments
• Compatible with CommScope's CWDM modules and optical splitter trays
• W/ Test Valve
• No Pre-Installed Fiber Tray

Specifications:

Cable Entry Drop Port StyleRoundCable Entry Main Port StyleRoundCable Ports, quantity4Cable Sealing TypeCompressed gelClosure Sealing TypeDome-to-base clamp with O-ringClosure StyleSingle-endedColorBlackMountingPole | Strand | WallNetwork Area TypeFeederSplice Tray Included, quantity0Splicing Capacity, Mass Fusion, maximum144Splicing Capacity, Single Fusion, maximum96Splicing Capacity, Single Splice, 12 fibers, maximum96Splicing Capacity, Single Splice, 6 fibers, maximum48Splicing Type, SupportedMass fusion | Single fusion
