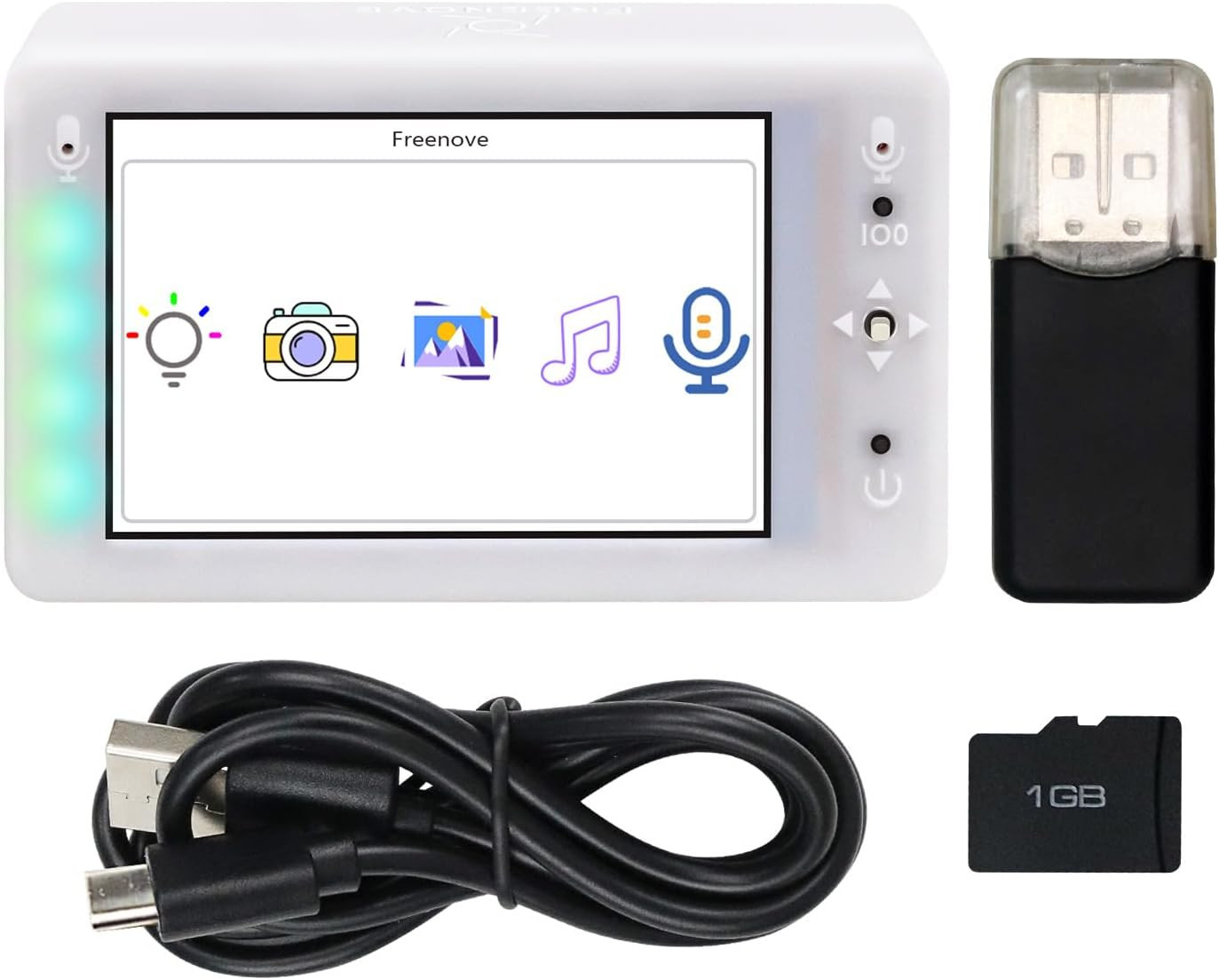

FREENOVE Media Kit for ESP32-S3 ESP32 S3 CAM 3.5 Inch Screen, Supporting Openai/Xiaozhiai, Dual-Core 32-Bit 240 Mhz Microcontroller Camera Wireless, Dual Speakers Dual Microphones, Tutorial CodeDescription Operating System FreeRTOS Specific Uses For Product Education Personal Computer Design Type All in One Color 3.5 Inch Screen Additional Features Speakers, Microphone, Screen Optical Storage Device SD card Hardware Interface USB Item Weight 215 g Video Output Interface HDMI Style Name Customizable Compatible Devices Headphone, Keyboard, Mouse, Speaker, Storage Device Power Plug Type No Plug Cache Memory Installed Size 8 MB Memory Storage Capacity 1 GB RAM Memory Installed 8 MB RAM Memory Technology PSRAM Memory Speed 240 MHz RAM Type SDRAM Memory Clock Speed 240 MHz Processor Speed 240 MHz Processor Count 2 Total Usb Ports 1 Connectivity Technology Bluetooth, Wi-Fi Wireless Compability 2.4 GHz Radio Frequency Wireless Technology Bluetooth, Wi-Fi Wireless Network Technology Wi-Fi Speaker Description Dual speakers Speaker Type Built-in stereo speakers Brand FREENOVE Model Number FNK0102H Model Name FNK0102H Built-In Media board Processor Brand Espressif Model Year 2023 CPU Model Number ESP32-S3 Warranty Description 1 Unit Count 1 Count Manufacturer Freenove Graphics Description Integrated Graphics Coprocessor Integrerad grafik Graphics Card Ram 8 MB Graphics Ram Type SDRAM Graphics Card Interface Integrated Screen Size 3.5 inches Display Resolution Maximum 480x320 Display Type LCD Aspect Ratio 16:10 Resolution 480 x 320 Native Resolution 480 x 320 Human-Interface Input Buttons Keyboard Description Wired, Full-size Keyboard Keyboard Layout QWERTY CPU Speed 240 MHz Cache Size 8 MB Graphics Card Description Integrated Personal computer design type All in One

Purchase Options:
This kit has several purchasing options.
Each option has some differences in hardware, but the function is basically the same.
Overview:
ESP32-S3-WROOM is a small but powerful controller with onboard wireless and camera.
This kit helps you learn ESP32-S3, LVGL GUI library and connection with AI (LLM).
We provide free technical support to help you with any questions and problems.
Tutorial and Code:
Comes with detailed tutorial and code. (Download or view online, no paper tutorial.)
Including several typical projects with code and explanations.
The tutorial link can be found on the product box.
Contents of Main Tutorial:
Preface
Chapter 0 Assembly
Chapter 1 LEDPixel Test
Chapter 2 Battery Voltage Detection
Chapter 3 5-Way Navigation Switch Test
Chapter 4 Memory Card Read & Write Test
Chapter 5 Simple Tone Test
Chapter 6 Play MP3 Test
Chapter 7 Video Web Server
Chapter 8 TFT Clock
Chapter 9 Camera TFT Test
Chapter 10 Record Test
Chapter 11 ESP32_SR
Chapter 12 LVGL
Chapter 13 LVGL LEDPixel
Chapter 14 LVGL Camera
Chapter 15 LVGL Picture
Chapter 16 LVGL Music
Chapter 17 LVGL Sound Recorder
Chapter 18 LVGL Multifunctionality
Chapter 19 LVGL Multifunctionality UI
What's Next?
Contents of OpenAI Tutorial:
Please refer to tutorial for details.
Contents of XiaoZhiAI Tutorial:
Please refer to tutorial for details.

• Talk to AI (LLM): Continuous and natural communication, just like talking to a human, without needing to press a button or say a wake-up word (Notes: Service provided by OpenAI / XiaoZhiAI, registration and login required, may be unavailable in some regions. OpenAl: Paid service with a minimum of $5 for tokens, wide country / language support; XiaoZhiAl: Free service, limited country / language availability. Please refer to tutorial for details)
• ESP32-S3 WROOM Board: Dual-core 32-bit microprocessor up to 240 MHz, 16 MB flash, 8 MB PSRAM, onboard 2.4 GHz Wi-Fi and Bluetooth 5 (LE), USB code uploader and USB-OTG, camera, memory card slot (Comes with 1GB memory card and card reader)
• Media Extension Board: 3.5 inch colorful screen (480 x 320 pixels), five-way navigation switch, RGB LEDs, power button, dual microphones, dual speakers, 3.5 mm audio output, battery connector (Battery NOT included, can use USB power) (Comes with 3D printed shell)
• Tutorial and Code: Example projects for ESP32-S3 and Media Board, LVGL GUI library, and connection with AI (The tutorial link can be found on the product box, no paper tutorial)
• Comprehensive Project: An embedded system example with RGB LED controller, camera, gallery, music player, voice recorder
