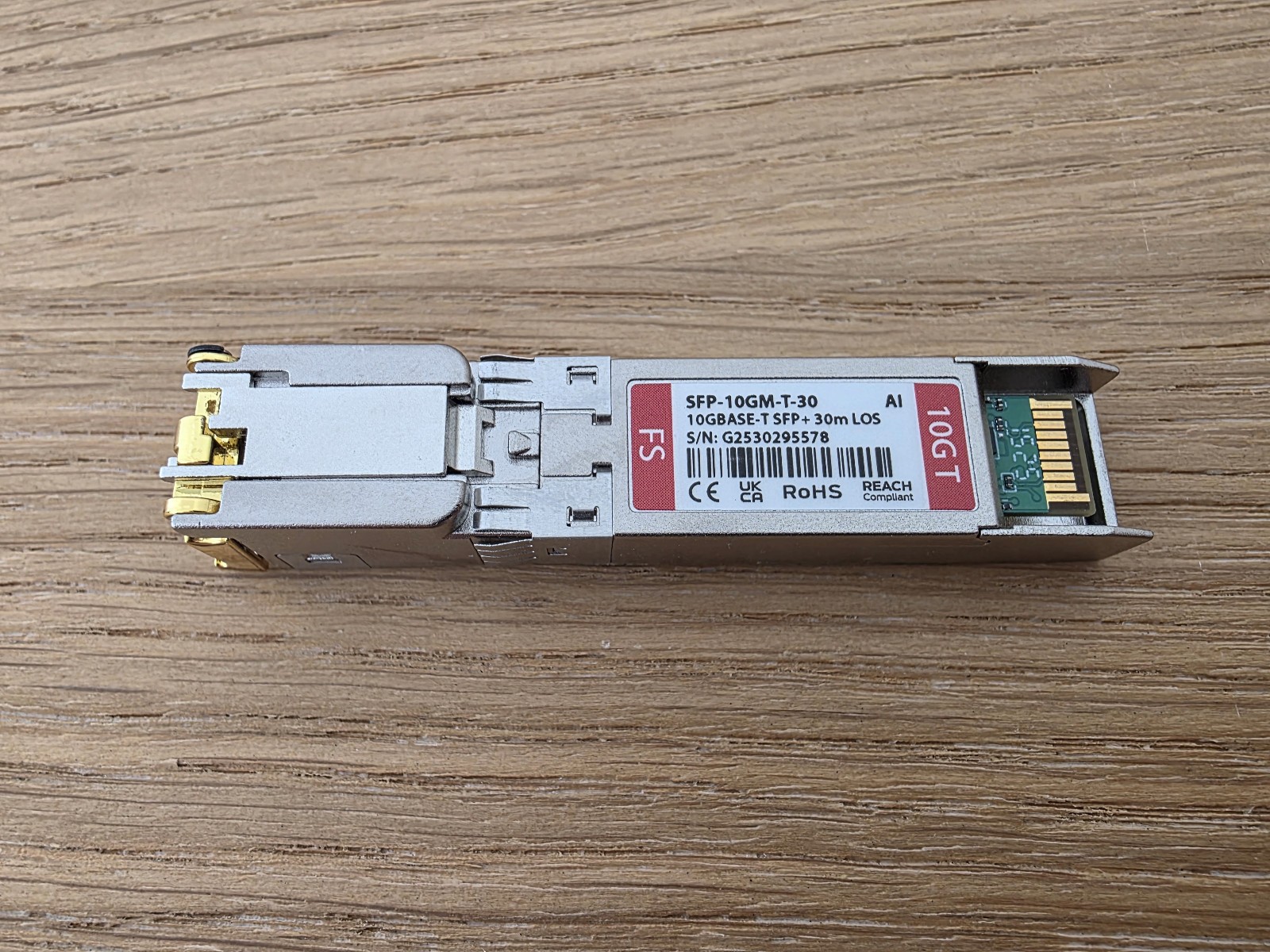

Selling used in good condition FS Arista SFP-10G-MRA-T Compatible 10M/100M/1G/2.5G/5G/10Gbps NBASE-T SFP+ Copper 30m RJ-45 Transceiver Module (LOS)
P/N:SFP-10GM-T-30 SKU:178033
Product Highlights
Built-in Marvell Chip, Max. Power Consumption 2.5WTested in Targeted Switches for Superior Performance, Quality, and ReliabilityMulti-rate 10M/100M/1G/2.5G/5G/10Gbps on Line PortTerminated RJ45 Connectors, Allowing 10G Bandwidth over Cat6a/7 CableFS BOX - Support Real-time Configuration Hot Pluggable SFP+ MSA , IEEE 802.3az CompliantArista SFP-10G-MRA-T Compatible 10M/100M/1G/2.5G/5G/10Gbps NBASE-T Transceiver Module (Copper, 30m, RJ-45)
The 10GBASE-T module offers connectivity options at 10M/100M/1G/2.5G/5G/10Gbps data rates. The module features an SFP+ form factor and an RJ-45 interface, enabling the use of CAT5e/CAT6A/CAT7 cables for connecting to endpoints with embedded 10GBASE-T ports. It supports distances of up to 30 meters, providing a cost-effective solution for intra-rack and inter-rack connections.
This transceiver is compliant with IEEE 802.3az and SFP+ MSA. Each SFP transceiver module is individually tested to be used on a series of switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, this easy to install, hot swappable 10G SFP+ transceiver is ideal for enterprise networking for LAN applications and different other networking places using copper connections. With 10M/100M/1G/2.5G/5G/10Gbps multi-rate, it is suitable for aquantia application.
Specifications Arista Compatible SFP-10G-MRA-T Vendor Name FS Form Factor SFP+ Max. Data Rate 10.3125Gbps Max. Power Consumption ≤2.5W Max. Transmission Distance 10/100/1000M-100m@Cat 5 Cable or better
10G-30m@Cat 6a/7 Cable Connector RJ-45 Cable Type Copper Special Features RX_LOS DDM/DOM Not Implemented Multi-rate Application Supported (Auto-negotiation) MTBF 6430000 Hours EMC (Electro Magnetic Compatibility) Supported Operating Temperature 0 to 70°C (32 to 158°F) Protocols IEEE 802.3azSFP+ MSA Warranty 5 Years
