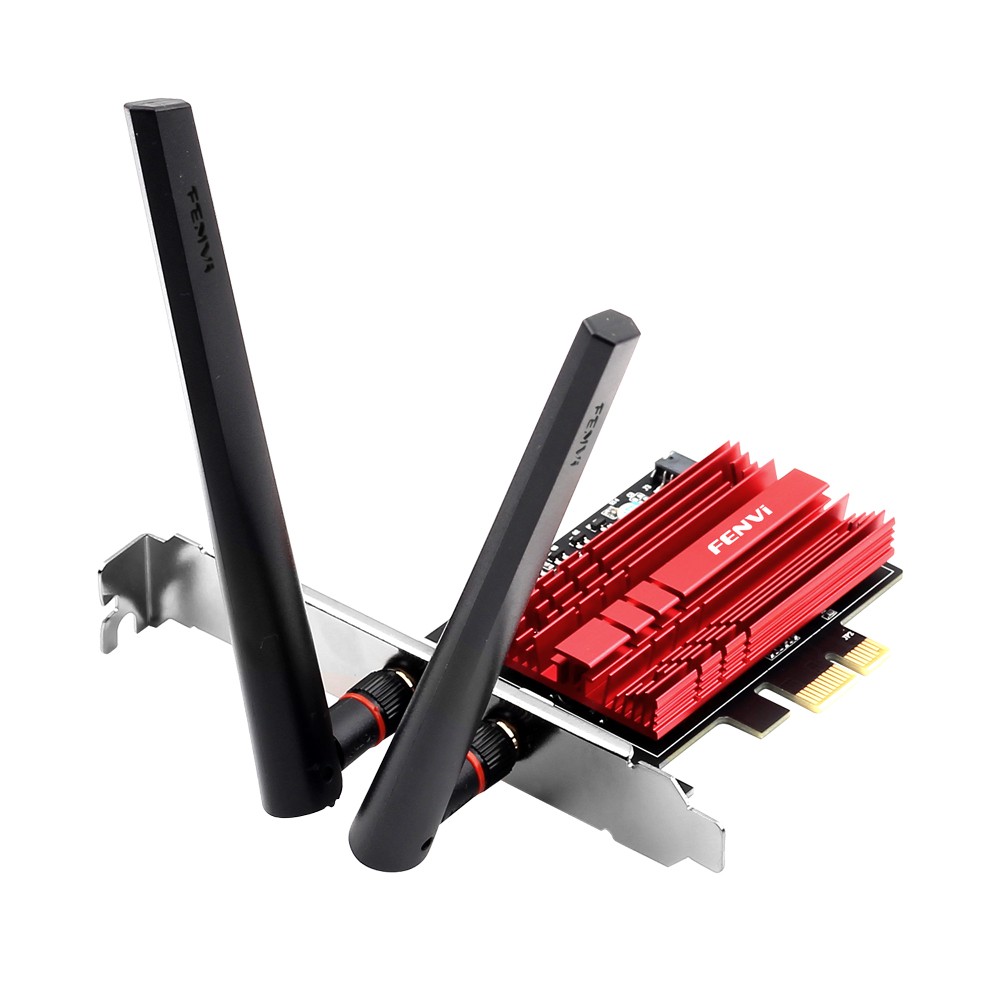

FV-AXE3000 WiFi 6E PCI-E Desktop Card AX210 Chip BT5.4 Tri-Band Wireless AdapterProduct SpecificationsChip: Intel AX210Model: FV-AXE3000WiFi Standard: WiFi 6E (IEEE 802.11ax), backward compatible with WiFi 6 / WiFi 5 / WiFi 4Frequency Bands: Tri-Band 2.4GHz + 5GHz + 6GHzMax Total Throughput: 5374Mbps (theoretical tri-band combined value)Bluetooth Version: Bluetooth 5.4Host Interface: PCIe x1 (compatible with x4 / x8 / x16 slots)Antennas: 2 × high-gain external antennasCooling: Large Red Aluminum HeatsinkSecurity Encryption: WPA3, WPA2, WPACore Technologies: MU-MIMOSupported OS: Windows 10 64-bit, Windows 11 64-bitPackage includes:1 × FV-AXE3000 Wireless PCI-E adapter2 × 6DBi antennas1 × low profile bracket1 × Bluetooth Cable
FV-AXE3000 WiFi 6E PCI-E Desktop Card AX210 Chip BT5.4 Tri-Band Wireless AdapterProduct Specifications
Chip: Intel AX210
Model: FV-AXE3000
WiFi Standard: WiFi 6E (IEEE 802.11ax), backward compatible with WiFi 6 / WiFi 5 / WiFi 4
Frequency Bands: Tri-Band 2.4GHz + 5GHz + 6GHz
Max Total Throughput: 5374Mbps (theoretical tri-band combined value)
Bluetooth Version: Bluetooth 5.4
Host Interface: PCIe x1 (compatible with x4 / x8 / x16 slots)
Antennas: 2 × high-gain external antennas
Cooling: Large Red Aluminum Heatsink
Security Encryption: WPA3, WPA2, WPA
Core Technologies: MU-MIMO
Supported OS: Windows 10 64-bit, Windows 11 64-bit
Product Features
1. Tri-Band WiFi 6E Ultra-Fast Connection
Powered by the Intel AX210 wireless controller and compliant with 802.11ax WiFi 6E standard, it delivers up to 5374Mbps total throughput across 2.4GHz, 5GHz and 6GHz bands. The exclusive interference-free 6GHz band cuts latency to a minimum, perfect for competitive gaming, 8K UHD streaming and large file transfers.
2. Integrated Bluetooth 5.4 Module
Upgraded Bluetooth 5.4 delivers enhanced anti-interference, longer transmission range and stable multi-device pairing. You can simultaneously connect wireless gaming headsets, game controllers, mechanical keyboards, mice and smartphones. No extra USB Bluetooth dongle required, saving your desktop USB ports.
3. Large Red Aluminum Heatsink
Premium stacked red aluminum heatsink efficiently dissipates heat during long-hour high-load operation. It prevents thermal throttling, speed drops and random disconnections during continuous gaming, downloading and heavy data transmission, maintaining stable full-speed performance.
4. Dual High-Gain External Antennas
Two rotatable high-gain omnidirectional antennas can be adjusted freely to optimize signal reception. They effectively boost receiving sensitivity and maintain stable connection even when the router is far away or behind walls.
5. PCI-E X1 Wide Compatibility
Standard PCI-E X1 interface, backward compatible with PCI-E X4 / X8 / X16 motherboard slots. Supports Windows 10 64-bit and Windows 11 64-bit systems. A cost-effective solution to add WiFi 6E and Bluetooth to desktops without built-in wireless capability.
Package includes:
1 × FV-AXE3000 Wireless PCI-E adapter
2 × 6DBi antennas
1 × low profile bracket
1 × Bluetooth Cable
Important Notes
1. A WiFi 6E compatible router is required to unlock full 5374Mbps speed and access the 6GHz frequency band. Actual speed will be limited when paired with older standard routers.
2. This is a PCIe expansion card for desktop PCs only. It is NOT compatible with laptops, all-in-one PCs or devices without PCIe slots.
3. Official Intel driver installation is required for full functionality. Please download and install the latest WiFi & Bluetooth driver before use.
