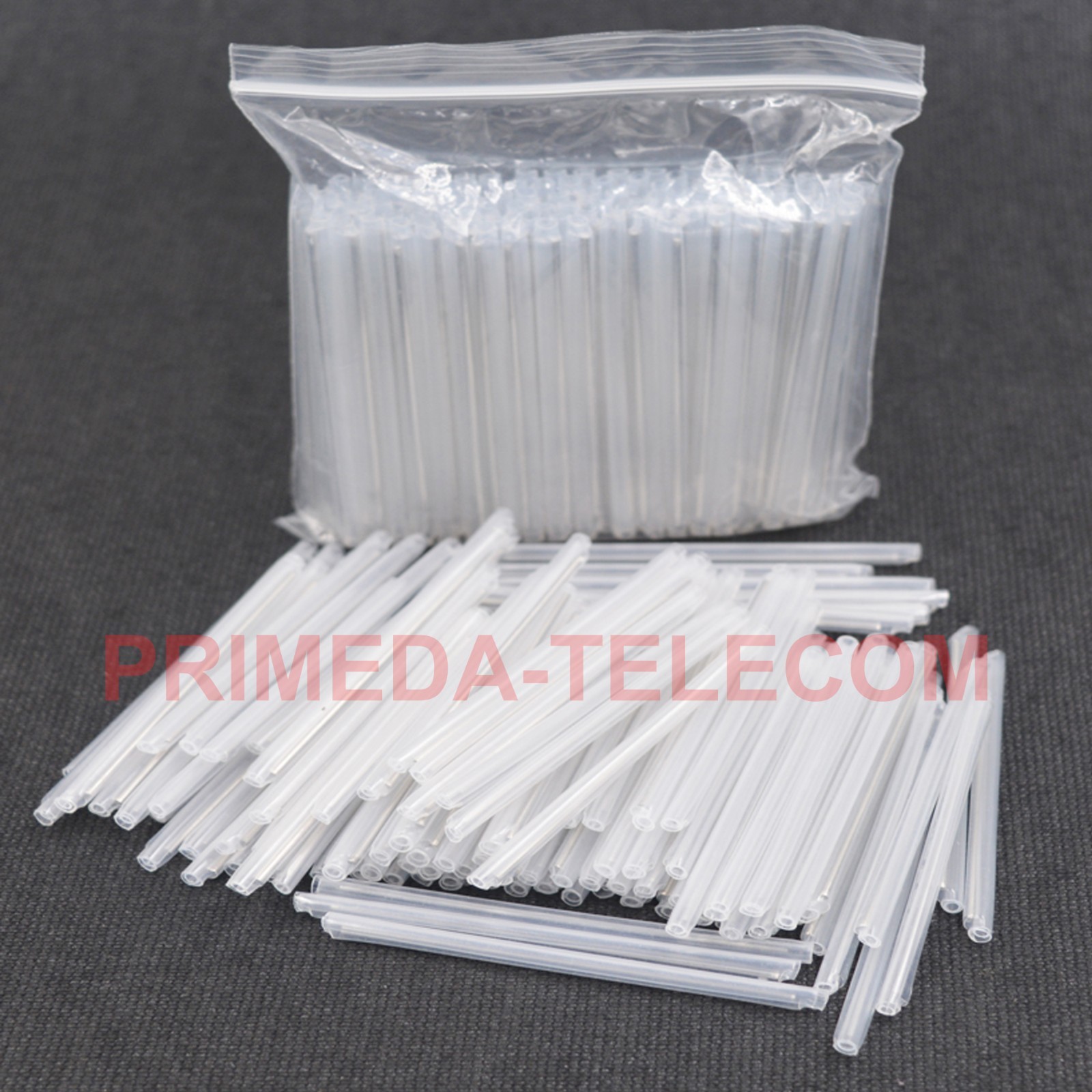

Model 1(Single Fiber, OD after shrinking is 2.4mm/2.5mm, Length:60mm/45mm/40mm optional)
Overview:
The most popular method of protecting a fusion splice is the utilization of two heat sensitive tubes supported by a stainless steel rod. The protection sleeve contains a custom inner tube made of polyolifin, which melts around the fiber to provide both moisture and cushion protection. The Teflon-treated inner tube allows easy fiber entry. The sleeve shrinks to a size that allows insertion into most fusion splice trays. This is a proven shrink tube design used in thousands of telco and communication applications
Feature:
1.This is the industry's most popular, high-quality fusion splice protection sleeve
2.It has a steel strength member, inner fiber tube, and outer shrink tube. After heat shrinking the size is 2.4mm diameter x 60mm length
3.It is designed for single fiber applications and accommodates up to 1.4mm coated fibers. The color is clear (transparent),Clear sleeve make it easy to detect splice before shrinkage, Easily use and avoid any damages to the optical fiber during installation
4.Fusion splice protection sleeves provide vital protection at the fused juncture between two fusion spliced optical fibers. In addition to providing a substitute for the original fiber optic cable jacket, splice protection sleeves provide a degree of rigidity that prevents the spliced area from bending or flexing
5.Short installation cycle and compatible with most common ovens
The SMOUV sleeve consists of
a clear outer heat shrink material
a low temperature hot melt adhesive to encapsulate the splice
a stainless steel rod for single fiber splices to ensure proper alignment and rigidity
Specifications
1.Minimum installation(shrinking) temperature: 110°C
2.Max installation time: 60 seconds
3.Standard color: Clear
4.Low Temperature property: No crackle at -55°C lasting 4 hours
5. RoHS compliant
6.Packing: 100pcs perzippedbag(inner bag)
Packing Content:
1000pcs Fiber splice sleeves
Model 2 (Ribbon mass fiber, up 12 core)
Feature:
It is designedfor multiple fibers protect mass fusion splices of ribbons with one to twelve fibers.
The color is clear (transparent), itmake it easy to detect splice before shrinkage, Easily use and avoid any damages to the optical fiber during installation
This sleeves are compatible with the most commonly used fiber management systems andorganizers.
Short installation cycle, Shrink time90s(Shrink times vary with heater style and ambient temperature)
Excellent climatic and thermal properties make it ideal for use in closed as well as open spaces.
50pcs packed to one zip-bag,with exquisite pack zipped bag
The SMOUV sleeve consists of
Aclear outer heat shrink material
Alow temperature hot melt adhesive to encapsulate the splice
Aceramic rod for ribbonized fiber splices to ensure proper alignment and rigidity
Feature:
Compatible with all common fiber coatings.
Optimal design for simple and correct fiber entrance.
Hot melt adhesive especially developed for optimal flow.
Transparent heat shrinkable tube for simple installation verification.
Short installation cycle and compatible with most common ovens.
Available as separate item or as part of an application kit.
Specifications
Standard color: Clear
Operating fully recovery temperature:-45°C to 100°C
Minimum installation temperature: 120 °C
Max installation time: 90 seconds(Shrink times vary with heater style and ambient temperature)
Packing: 50pcs packed to one zip-bag
Packing Content:
1000pcs Fiber splice sleeves
