1.Brand-New, High Quality

2.An RJ45 ports and a single-fiber SC optical port , to achieve optical signal conversion between 10/100base TX twisted pair

(Ethernet )and 100base FX (fiber optic) ;

3.Core optical fiber can be completed in just one way signal transmission compared to dual fiber optic data transmission

mode to improve the quantity doubled ;

4.Compliance with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standards ;

5.Has 10M/100M adaptive capacity ;

6.Ethernetinterface can adaptively direct line / crossover cable connection ;

7.Support full / half duplex mode ;

8.Support IEEE802.3X duplex flow control and half-duplex backpressure flow control ;

9.Supports broadcast storm prevention function ;

10.1916 Byte support large data frame ( optional ) ;

11.Built- in lightning protection circuit , which can greatly reduce the damage caused by lightning induction ;

12.UTP up to 100 meters ; longest 100 km single-mode fiber ;

13.There are six LED indicators : Power, TX 100, TX Link / Act, FX 100, FX Link / Act, FDX / Col; easy to monitor the working

status of the transceiver and determine the cause of the fault ;

14.There are external , internal power supply of two types : AC100 ~ 265V / DC5V switching power supply ;

15.Working temperature : 0 ~ 50 degree;

16.Storage temperature : - 40 ~ 70 degree ;

17.Transceiver Dimensions: External power 70 × 26 × 93mm; built-in 120 × 30 × 140mm.

18.outer Dimensions: 95mm × 71mm × 25mm

19. Packaging: Anti-static packaging

For the environment:

For telecommunications , broadcasting, broadband fiber optic network data traffic and the need to improve performance, high-reliability network environment.

Package Include:

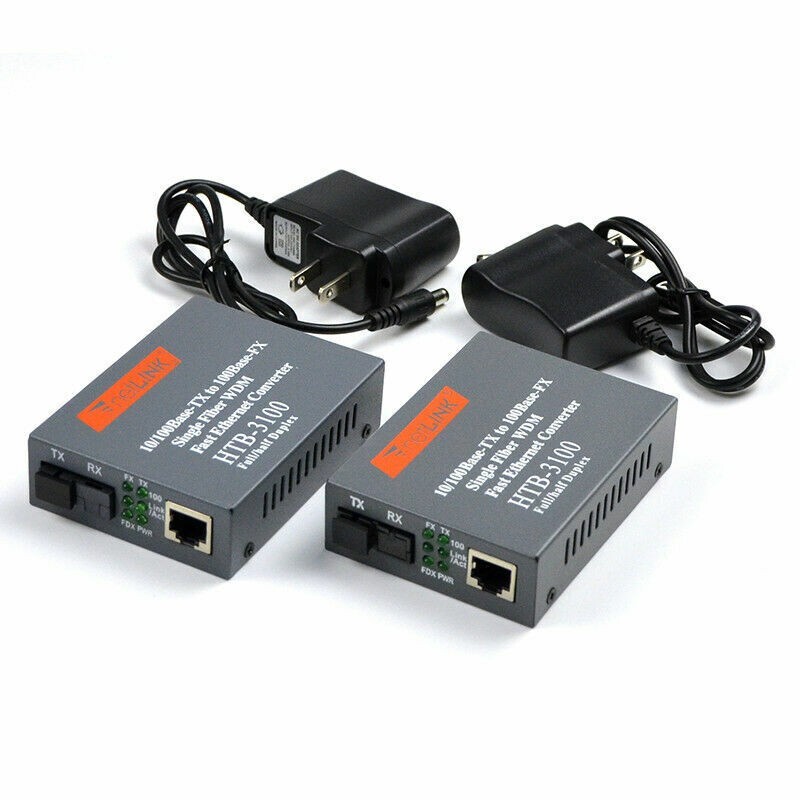

1 pairs HTB-3100A HTB-3100B

2x power DC5V
