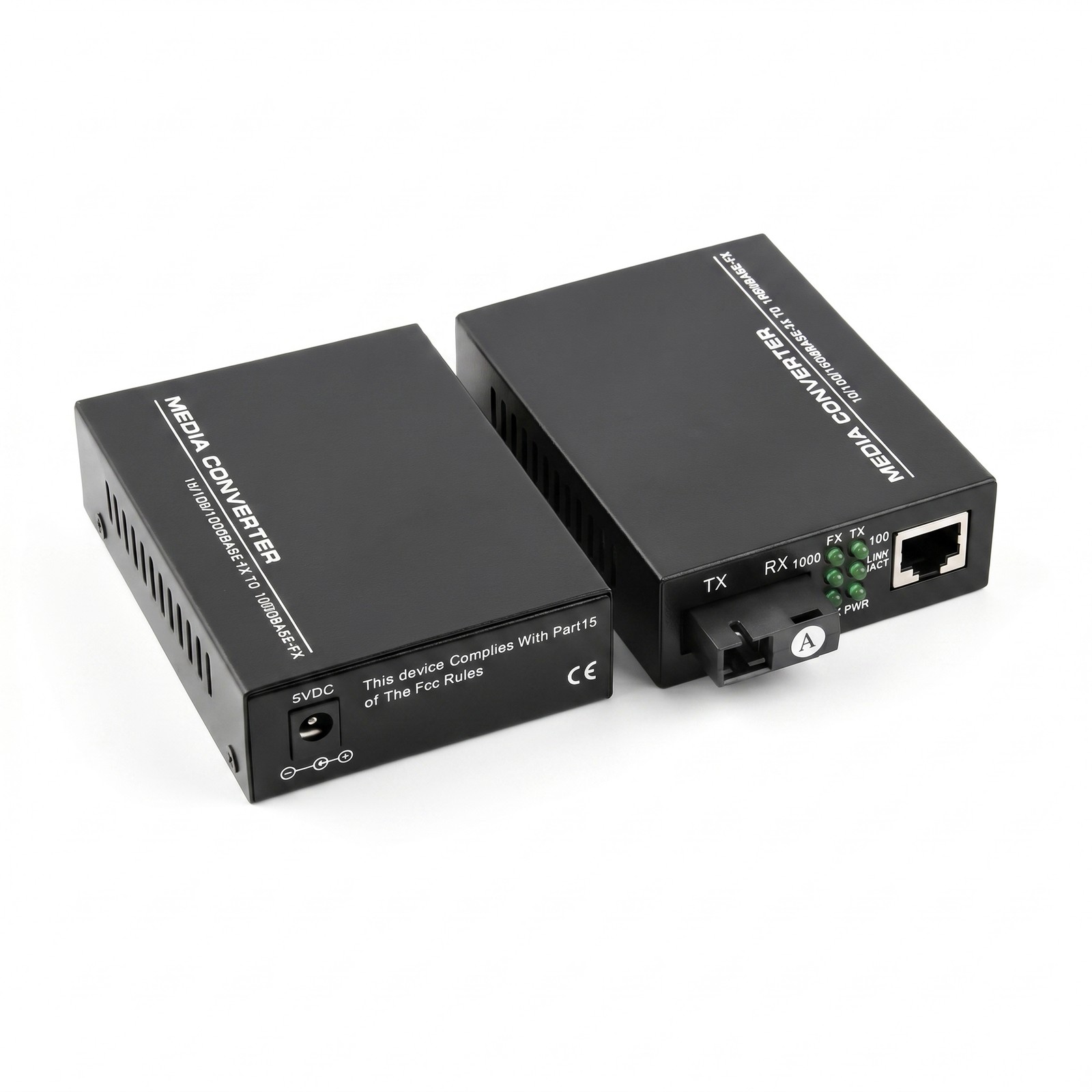

HTB-GS-03 Gigabit Fiber Optical Media Converter 10/100/1000Mbps Single Mode to RJ45 20Km
UPC/APC SC-Port External Power Supply

Type: Fiber Optic
Converter
Model: HTB-GS-03
Transmission Distance: Single-mode up to 20km
Fiber Optic Connector: SC/APC, SC/UPC
Ethernet Connector: RJ45
Ethernet Rate: 10/100/1000Mbps
Fiber Port Speed: 1.25G
Wavelength: A-Side TX 1310nm / RX 1550nm, B-Side TX 1550nm / RX 1310nm

Instruction
The Gigabit Ethernet Media Converters with an external power supply are
designed to transmit and receive 10/100/1000Mbps data over optical fiber.
The electrical interface will Auto-Negotiate to a 100Mbps or 1000Mbps
Ethernet rate without any adjustments.
The optical interface operates at a 1000Mbps Ethernet rate.
Both are environmentally hardened to operate in extreme temperatures.
LED indicators are provided for confirming equipment operating status.

Feature
One 1.25Gbps full-duplex fiber port and one 1000M Ethernet port.
Each port has the complete LED Indicator light for installation,
commissioning, and maintenance.
Support 9K Jumbo Packet.
Support direct forwarding mode, which supports less time delay.
Low power consumption, only 1.5W in full load condition.
Support isolation protection function, good data security.
Small size, suitable for installation in various places.
Auto-negotiation low power consumption chips to ensure very longtime and
stable operation.

100% Brand New and High Quality.
Shape & Color: Same as the picture show

The Type As Your Choice!!
The Quantity As Your Choice!!
Thanks for your visit & Happy cooperation!!
Note: Due to nature and measurement tools, coupled with the purely manual
measurement and cutting of the cable, it may cause a length error of 1%-5%.
