Description:
Fiberdyne Labs

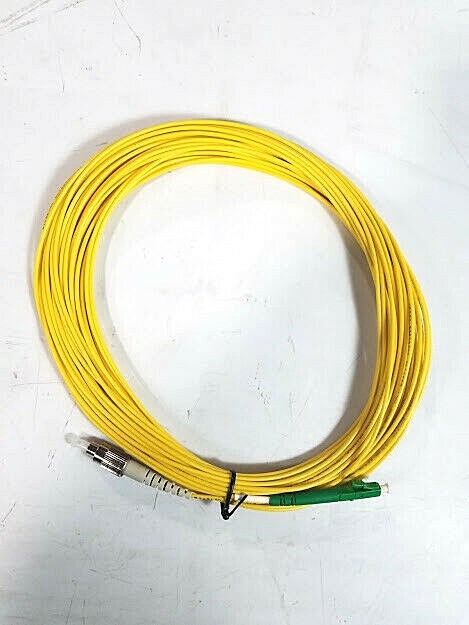

Sm Simplex B/I 2.0mm FC/UPC-LC/APC, 16meters long; OFNR- Optical Fiber Nonductive Riser;
Sm(Singlemode) Simplex -Singlemodeis typicallyused inlong-haul network connections spread out over extended areas--longer than a few miles. For example, telcosuseit for connections between switching offices.Singlemodecable features a 9-micron glass core.Asimplex fibercable consists of a single strand of glass of plasticfiber.Simplex fiberis most often used where only a single transmit and/or receive line is required between devices or when a multiplex data signal is used (bi-directional communication over a sensitive to stress, particularlybending. ... An optical "trench" - the term used for a ring of lower index of refraction material - was built into thefiberto basically reflect the lost light back into the core of thefiber. This particular fiber holds up better under stress. As a result, it holds up much better under stress and is able to be bent or stapled inplace. This makes it very good at applications as part of the fiber framework in buildings, etc...
OFNR- Optical Fiber Nonconductive Riser-OFNRrefers to thefiberrating of thecablejacketing.OFNRis the designation given by the National Fire Protection Association (NFPA) to interiorfiber-optic cableswhich contain no electrically conductive component, and which are certified for use in Riser Connectors-TheFC connectoris a fiber-opticconnectorwith a threaded body, which was designed for use in high-vibration environments. It is commonly used with both single-mode optical fiber and polarization-maintaining optical fiber. ... The name "FC" is an acronym for "ferruleconnector" or "fiber channel" UPC stands for Ultra Polish Connector. They are polished with no angle. It has low-insertion loss and back reflection This connector has blue jacket with blue boots.
LC/APC Connectors-LC or Lucent Connectors are about half the size of SC connectors, 1.25mm diameter ferrule. APC stands forAngled Polished connector, which prevents back-reflections. It is usually used in analog fiber optic system equipment,such as CATV or Satellite.
*Note- This is a newly posted item. Please take a look at the pictures of the item to make sure it is something you want to purchase. If you have any questions, feel free to contact us for more information. Thank you for your business!
Part and Used Items: -All Items listed as new and used are eligible for returns within 30 days -Items must be unused(upon receiving item) and in the same condition it was received -All returns must be in original packaging -Customer is responsible for cost of shipping *Items Listed As "For Parts/Not Working" Are Untested And May Work* *Any Items Sold "For Parts/Not Working" or "AS IS" Not Eligible For Returns*
