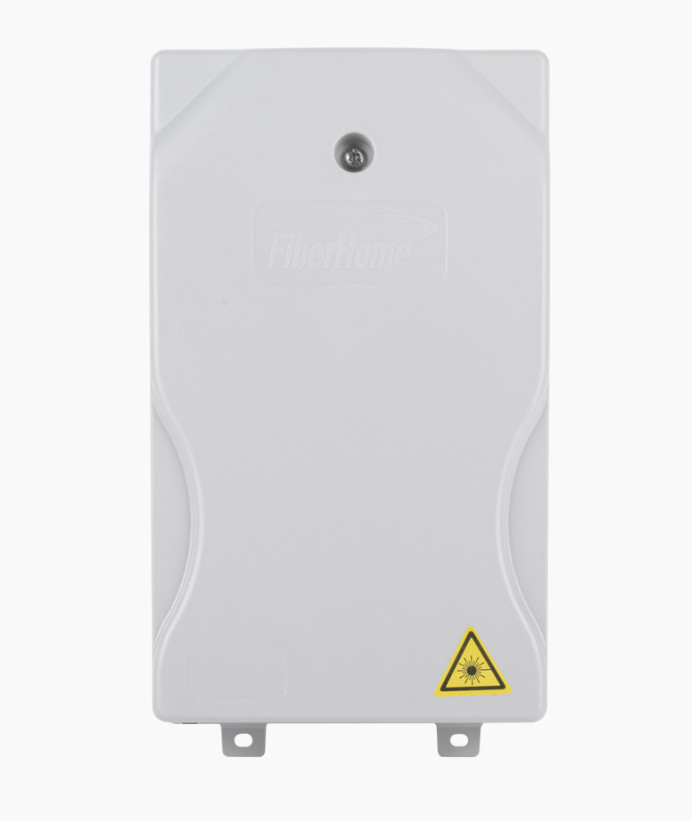

FTB-522 fiber termination box is the product used in FTTH network for different scene requirements of one lever split. The function of fiber splicing, termination, storage, and scheduling can be provided. The splitter can be installed in the box. The box is an important device in fiber access network.

Features

• Beautiful and compact model, convenient installation
• Nontoxic for all the material
• Non-corrosive for metal component
• While activating user operation, insert the field assembly connector into the adaptor.
• Suitable for wall-mounted installation
• Neat fiber routing management.

Specifications

• Size: 230mm×130mm×60mm (H × W × D)
• Optical cable access number ≤4 pcs (distribution cable); ≤8 pcs (drop cable)
• Max. termination capacity 8
• Max. splicing capacity 24
• Max. splitter capacity 1 pc 1:8 (900μm pigtail type) (Not included)
• 8 SC/APC adaptors included
• Distribution cable diameter Ȼ 7~8mm
