Fibocom L830-EB 01AX761 4G Module Card For Lenovo T480 T480s X280 X380 Yoga T580 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

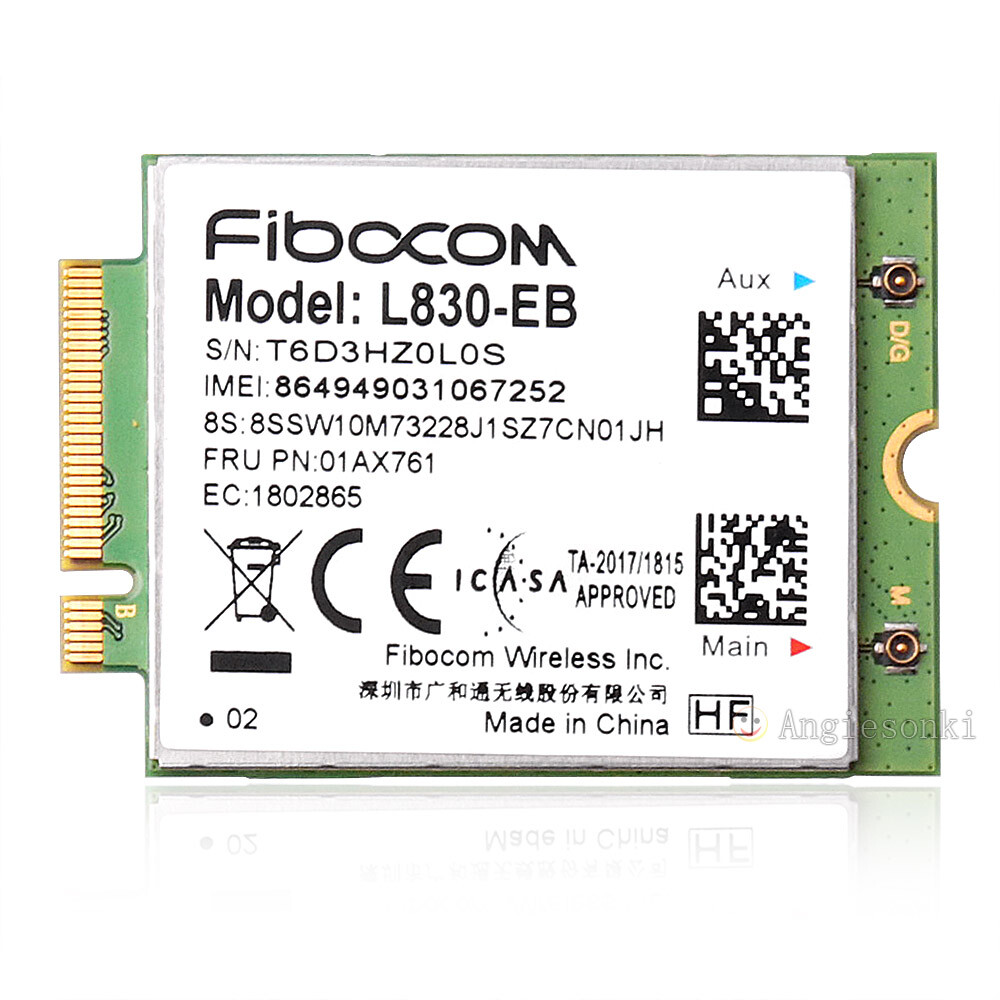

Fibocom L830-EB 01AX761 4G Module Card For Lenovo T480 T480s X280 X380 Yoga T580

Price: CN $36.99

Fibocom L830-EB Lenovo Thinkpad T480s LTE Cat6 WWAN Module

Brand:

Fibocom

Condition

100% Genuine

Components Included:

Fibocom L830-EB Lenovo Thinkpad LTE Cat6 WWAN Module X 1 L830-EB series are M.2 form factor LTE wireless communication modules which support LTE-FDD/WCDMA. The highest speed can reach Cat6 300Mbps DL and 50Mbps UL. L830-EB can cover multi-countries network, including EMEA, Taiwan, and etc. L830-EB can be widely used in consumer electronics(Laptop/Tablet), gateway industry.
NOTE!*Before buying, Please make sure that your Telecom Provider's Network bands can support this device's bands.FIBOCOM L830-EB Specifications and Feature:* LTE Cat6 cellular module* Form factor: M.2* Chipset/Platform: Intel XMM7262* Laptop/Tablet SKU With GNSS* Gateway SKU Without GNSS* Support 4G LTE FDD Band 1/3/5/7/8/20/28* Support 3G WCDMA/UMTS Band 1/5/8* CSFB Support* GNSS Support* Operating Voltage: DC 3.135~4.4V, Typical 3.3V* Operating Temperature: - 30~+65℃* AT Command Set: 3GPP TS 27.007 and 27.005, and proprietary FIBOCOM AT commands* TX Power: FDD LTE:23dBm WCDMA:23.58Bm* RX Sensitivity：FDD LTE:-98dBm~102dBm WCDMA:~-220dBm* Data Rates:
- FDD LTE: 300Mbps DL, 50Mbps UL
- UMTS: 384Kbps DL, 384Kbps UL
* Interfaces:
- USIM Card: 1.8V/3.0V
- USB 2.0
- EINT
- System Indicator
- Clock
* Drivers: Linux, Win 10* Approvals: Laptop/Tablet SKU:GCF,CE,RoHS,HF,CB,NCC,etc.Total 18 certs for global shipment* Gateway SKU 1: NCC, Anatel(TBD),RoHS,HF* Gateway SKU 2: GCF,CE,RoHS,HF,FCC,Vodafone* Dimensions: 90*42*2.3mm

Compatible with:
