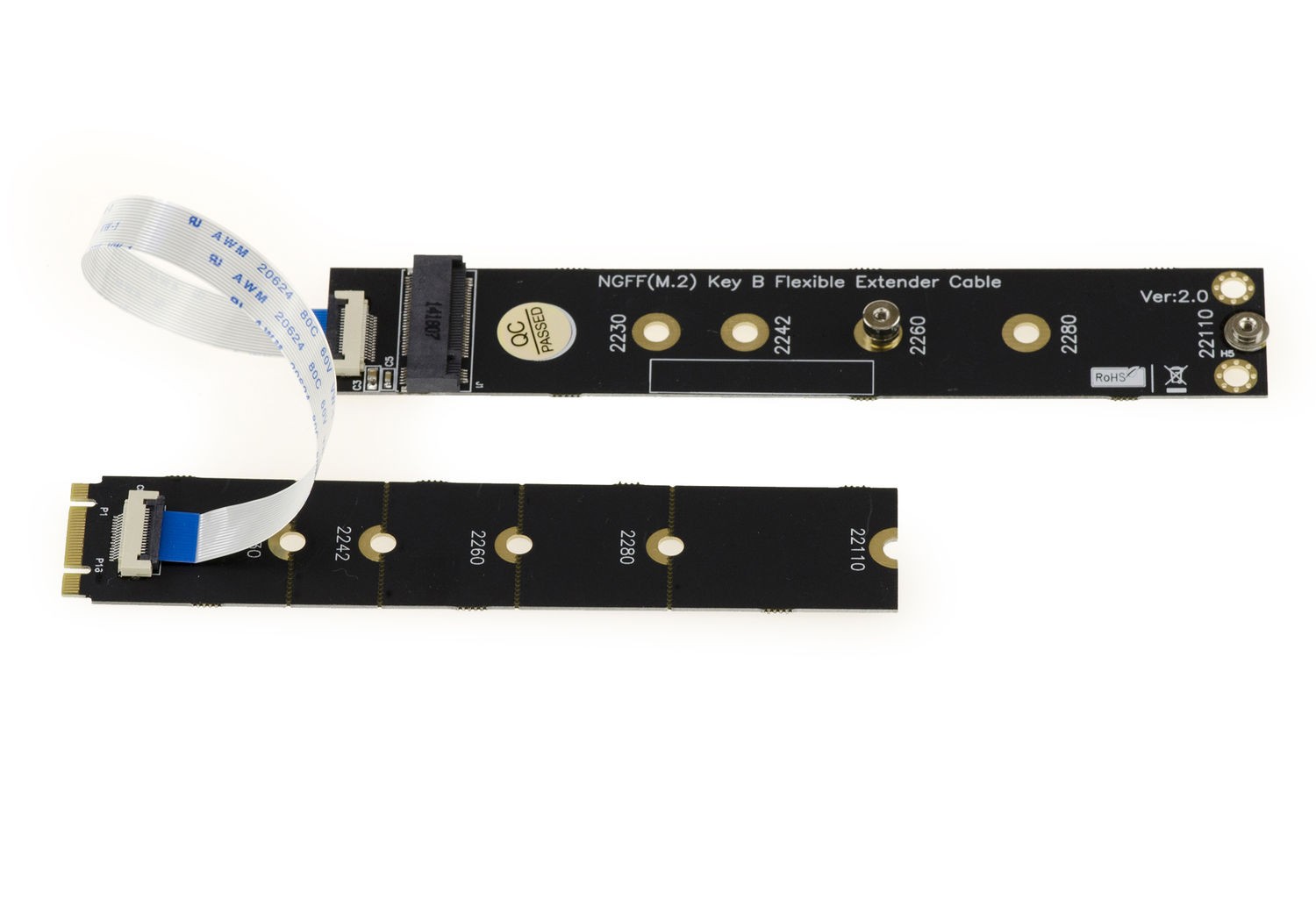

Riser M.2 (NGFF) B Key Usage:
Allows you to relocate the M.2 connector
Specifications:
This riser is for M2 SSD type SATA only.
The internal part will be housed in location M2. It has breakable sections to adapt it to a 2230, 2242, 2260, 2280 or 22110 slot, and has both keys B and M.
The external part has an M2 connector with B key. It is in 22110 format and has fixings for SSD 2230, 2242, 2260, 2280 and 22110.
The two parts are connected by a removable flexible tablecloth. 2 tablecloths are provided: 15 and 20cm.
Does not affect performance. Will not be suitable for PCIe type M2 SSDs.
