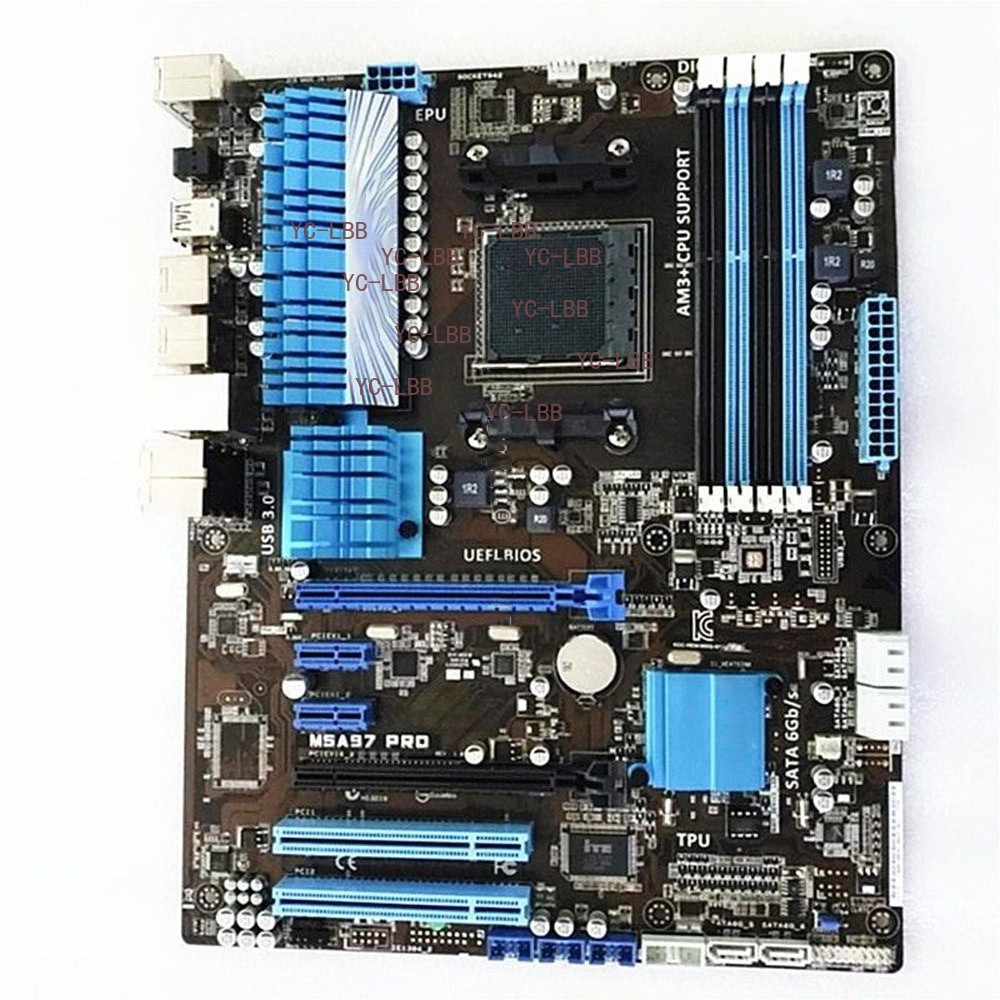

Motherboard chip: Integrated chip Sound card / network card
Chip Manufacturer: AMD
Main Chipset: AMD 970
Chipset Description: AMD 970 North Bridge + SB950 South Bridge Chipset
Display chip: None
Audio chip: integrated Realtek ALC892 8-channel sound chip
Network card chip: Realtek RTL8111E Gigabit network card on board
Processor Specifications
CPU platform: AMD
CPU socket: Socket AM3+
CPU description: Support AM3+ 32nm CPU
CPU support: 140W
Number of supported CPUs: 1
Memory Specification
Memory type: DDR3
Memory Slot: 4×DDR3 DIMM
Memory capacity: 32GB
Expansion Slot
PCI-E slot:
1×PCI-E X16 graphics slot
1×PCI-E X4 graphics slot
2×PCI-E X1 slots
PCI slots: 2 x PCI slots
SATA interface: 6×SATA III interface
I/O Interface
USB interface: 14 × USB2.0 interface (6 built-in + 8 backplane) 2 × USB3.0 interface
PS / 2 interface: PS / 2 keyboard and mouse common interface
Other interfaces
1×RJ45 network interface
2×eSATA interface
1×Fiber optic interface
Audio interface
Board Type
Motherboard board type: ATX board type
Form factor: 30.5×24.4cm
Software Management
BIOS Performance: 32Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2
Power Management: WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Other Parameters
Multi-graphics technology: Support the formation of ATI CrossFire multi-graphics card mode
Power Socket: One 8-pin, one 24-pin power connector
RAID function: Support RAID 0, 1, 5, 10
