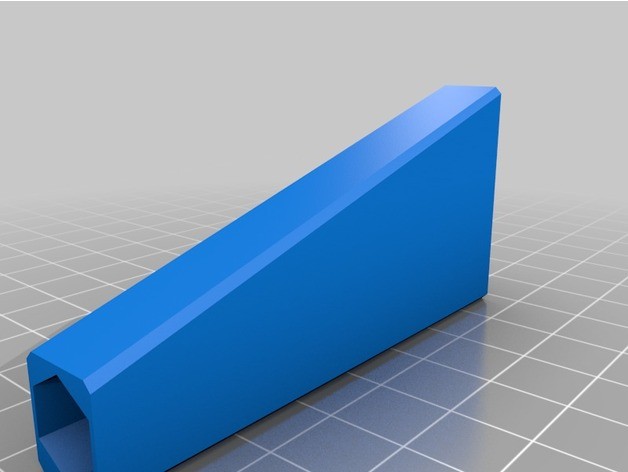

Ford 3V Timing Chain Wedge Tool - Cam Phaser Replacement

This listing is for a PHYSICAL 3D printed tool - not a digital file or download.

Take the hassle out of noisy cam phaser jobs with this Timing Chain Wedge Tool designed for 2004 and up Ford 4.6L & 5.4L 3-Valve modular engines. This wedge allows for easy cam phaser replacement without removing the timing cover and lets you remove the camshaft without losing chain tension - saving you serious time in the garage.

Key Features

• Enables cam phaser replacement without pulling the timing cover
• Holds chain tension while removing the camshaft
• Purpose-built for Ford 3-Valve 4.6L & 5.4L modular engines (2004+)
• Great DIY solution for tackling noisy cam phasers at home

Printed in ASA-CF (Carbon-Fiber Reinforced ASA)

Unlike common tools printed in basic filament, this wedge is produced in ASA-CF - a tough, carbon-fiber-reinforced, UV-resistant and weather-resistant material. ASA-CF offers excellent rigidity, heat tolerance, and durability under the stresses of engine service work, making it a serious upgrade over standard PLA or ABS prints.

Assembly Note

To complete the tool you will need to supply your own additional hardware: approximately 3 ft of #10-24 threaded rod, nyloc nuts, and a small handle. Assemble as shown and bend the threaded rod to aid installation. Instructional video guidance is widely available for both cam phaser replacement and lock-out procedures - the tool usage is identical.

Attribution

Original design by Ted Baran (Plastic_Innovations) on 3DPrintedCarPart. Licensed under CC BY. This is an independently 3D printed physical reproduction offered in accordance with the license.

Please verify fitment for your specific engine application before purchasing.
