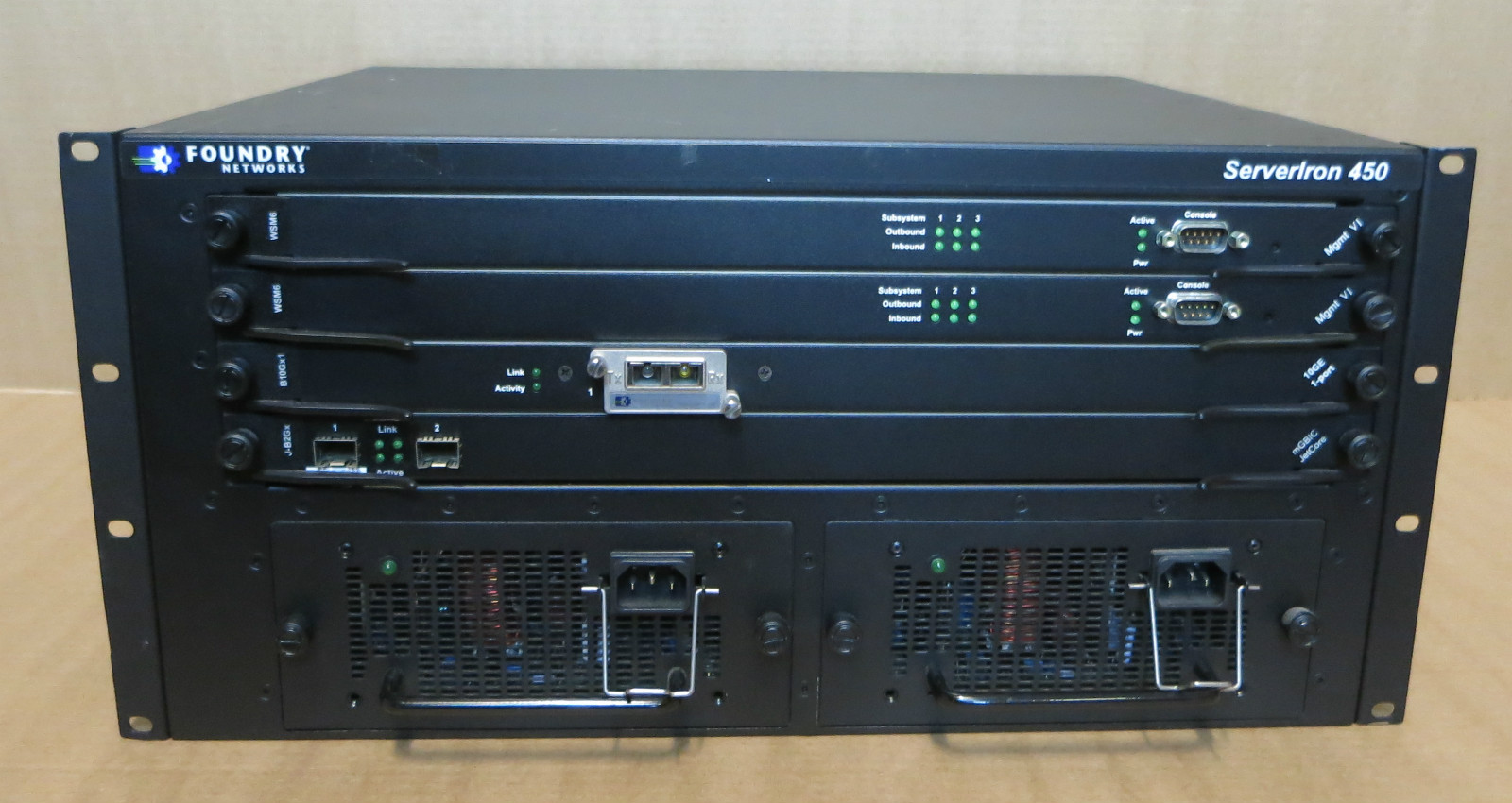

Foundry Networks B4000 ServerIron 450 SI-450 1x B10Gx1 1x J-B2GX 2x WSM6 Modules
Model: B4000 ServerIron 450
In Good Condition, Full Working Order
Included
- 1 xFoundry Networks B4000 ServerIron 450 SI-450
- 2 x Foundry Networks Management VI WSM6 Module
- 1 x Foundry Networks 10GE 1-Port B10GX1 Module With:
- 1 x Foundry Networks mGBIC JetCore J-B2Gx Module
- 2 x RPS3 550W Power Supply PSU
Description:
The ServerIron 450 switch is the highest performance Layer 4-7 switch in the industry, and combines a rich set of application intelligence to deliver maximum availability, security and scalability for mission-critical applications and server farms. Based on Foundry's unique Layer 4-7 network processor technology and JetCore line modules, the ServerIron 450 switch enables highly scalable gigabit and blade server farms. Using the most innovative security features and the high performance architecture, this switch protects mission-critical applications and server farms from multi-gigabit wire-speed Denial of Service (Dos) attacks. ServerIron switches support a comprehensive set of load balancing and Layer 7 switching features to build scalable and highly available applications. Automatic and frequent health checks to the servers and applications ensure that users are only directed to resources that are available and best able to serve user needs.
Specification:Slot ProvidedTotal Qty:4
NetworkingCompliant Standards:IEEE 802.1ad , IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1w , IEEE 802.3 , IEEE 802.3u , IEEE 802.3x , IEEE 802.3zConnectivity Technology:WiredFeatures:BOOTP support , DoS attack prevention , Flow control , High Availability , Hot swap module replacement , IP-routing , Layer 2 switching , Layer 4 switching , Layer 7 switching , LDAP support , Load balancing , Manageable , Modular design , SMTP traffic control , VLAN supportForm Factor:ExternalNetwork Transport Protocol:IPSec , TCP/IP , UDP/IPRemote Management Protocol:HTTP , RMON , SNMP , SNMP 2c , TelnetRouting Protocol:OSPF , RIP-2 , VRRP , VRRPEStatus Indicators:Active , Power , StatusSwitching Protocol:EthernetType:Load balancing device
MiscellaneousAuthentication Method:LDAP , RADIUS , Secure Shell (SSH)Encryption Algorithm:SSL
Bay ProvidedType:None
Environmental ParametersHumidity Range Operating:0 - 95%Max Operating Temperature:104 °FMin Operating Temperature:32 LANModel:450Product Line:Brocade ServerIron
ModemDigital Signaling Protocol:SIPVoice Communication Support:VoIPPower DeviceFrequency Required:50/60 HzHot-Plug:Hot-plugInstalled Qty:2Max Supported Qty:2Nominal Voltage:AC 120/230 VType:Internal power supply
Slot RequiredType:None
Storage Floppy DriveType:None
Storage RemovableType:None
Dimensions & WeightDepth:15 inHeight:8.7 inWidth:17.5 in
CapacityType:Concurrent Devices Modules Qty:1Supported Devices Modules Qty:4Expansion SlotsType:Expansion slot
Optical GbpsBoot Log:
ServerIron450#show version
SW:Version 09.4.02gTD4 Copyright (c) 1996-2003 Foundry Networks, Inc.
Compiled on Nov 26 2008 at 12:24:21 labeled as WXR09402g
HW:ServerIron 450 Router, SYSIF version 21, Serial #: 1: B0GMR WSM6Management Module, SYSIF 2, M6, ACTIVE
Serial #: CH10070469
0 MB SHM, 3 Application Processors
16384 KB BRAM,SMC version 5, BM version 21
SW:(1)09.4.02gTF2 (2)09.4.02gTF2 2: B0GMR WSM6Management Module, SYSIF 2, M6, STANDBY
Serial #: CH30060779
0 MB SHM, 3 Application Processors
16384 KB BRAM,SMC version 5, BM version 21
SW:(1)09.4.02gTF2 (2)09.4.02gTF2 3: B10G FiberSwitch Module, SYSIF 2
Serial #: SA07071435
16384 KB BRAM,XPP version 58, XTM version 59
4096 KBPRAM(4096K+0K) and 65536*1 CAM entries for DMA 8, version 4: J-BxG2JetCore Gig Fiber Module, SYSIF 2 (Mini GBIC)
Serial #: CH08070195
4096 KB BRAM,JetCore ASIC IGC version 49, BIA version 8a
32768 KB PRAM and2M-Bit*1 CAM for IGC 12, version managementmodule:
1.0 GHzPower PC processor 750GX (version 7002/0102) 66 MHz bus
512 KBboot flash memory
16384 KB codeflash memory
512 KBSRAM
512 MBDRAM
Standbymanagement module:
1.0 GHzPower PC processor 750GX (version 7002/0102) 66 MHz bus
512 KBboot flash memory
16384 KB codeflash memory
512 KBSRAM
512 MBDRAM
The system uptimeis 3 minutes 7 seconds
The system :started=cold startServerIron450#show chassis
power supply 1 ok
power supply 2 ok
power supply 1 to2 from left to right
fan 1 (left sidepanel, back fan) ok
fan 2 (left sidepanel, front fan) ok
fan 3 (rear/backpanel, left fan) ok
fan 4 (rear/backpanel, right fan) ok
Currenttemperature : 33.5 C degrees
Warning level :55 C degrees, shutdown level : 65 C degrees
Boot Prom module
ModuleStatus Ports Starting MAC
S1: B0GMR WSM6Management Module, SYSIF 2 M6, ACTIV 0
S2: B0GMR WSM6Management Module, SYSIF 2 M6, STAND 0
S3: B10G FiberSwitch Module, SYSIF 2OK 10012.f268.6f40
S4: J-BxG2JetCore Gig Fiber Module, SYSIFOK 20012.f268.6f60
VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£300.00 excluding VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
CS 156425 156426 -dup modules
