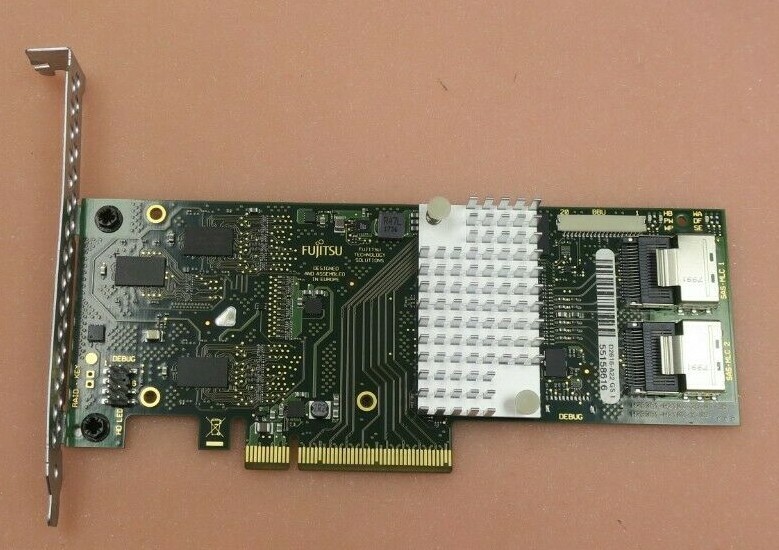

Fujitsu 8-Port Modular RAID Controller D2616-A22 + 512MB Cache S26361-F3554-E512

Model:LSI SAS 2108

In Good Condition, Full Working Order

Low Profile Card with Full Height Bracket

Included:

• 1 x Fujitsu 8-Port Modular RAID Controller D2616-A22 + 512MB Cache Silicon: RoC (RAID on Chip) LSI SAS2108
• Controller type: RAID 5/6 Ctrl.
• Number of ports: 8 ports int.
• Connector internal: SSF-8087
• Data transfer rate up to: 6 Gbit/s
• Bus interface: PCIe 2.0 x8
• Bus type: PCIe 2.0
• Bus width: x8
• RAID Management:
• ServerView RAID Manager
• MegaCLI (command-line RAID Data Protection Feature:
• RAID levels 0, 1, 5, and 6
• RAID spans 10, 50 and 60
• Online Capacity Expansion (OCE)
• Online RAID Level Migration (RLM)
• Auto resume after loss of system power during array rebuild or reconstruction
• Configurable stripe size up to 1MB
• Fast initialization for quick array setup
• Check Consistency for background data integrity - Make Data Consistent (MDC)
• Patrol read for media scanning and repairing
• 64 logical drive support
• Configuration on Disk (COD)
• S.M.A.R.T support
• Global and dedicated Hot Spare with Revertible Hot Spare support
• Automatic rebuild
• Enclosure affinity
• Enclosure management
• SES (inband)
• SGPIO (sideband)
• RAID level:
• 0, 1, 10, 5, 50, 6, 60
• 0, 1, 5, 6
• RAID cache backup unit:
• Optional BBU for selected systems
• Optional BBU
• RAID controller notes: (based on LSI SAS2108)
• Interface SAS

Compatible With:

• CELSIUS C620 D3188 RACK
• CELSIUS M720 D3128
• CELSIUS M720 D3128 POWER
• CELSIUS M730 D3128
• CELSIUS M730 D3128 POWER
• CELSIUS R920 D3118
• CELSIUS R920 D3118 POWER
• CELSIUS R930 D3118
• CELSIUS R930 D3118 POWER
• ETERNUS CS800-S2-RX36 (YLBG, YLBW)
• ETERNUS CS800-S3-RX36 (YLGM, YLGL)
• PRIMERGY CX270 S1
• PRIMERGY CX270 S2
• PRIMERGY RX100 S7
• PRIMERGY RX100 S7-P
• PRIMERGY RX100 S8
• PRIMERGY RX100 S6
• PRIMERGY RX1330 M1
• PRIMERGY RX200 S7
• PRIMERGY RX200 S8
• PRIMERGY RX200 S5 D2786
• PRIMERGY RX200 S6
• PRIMERGY RX2520 M1
• PRIMERGY RX300 S7
• PRIMERGY RX300 S8
• PRIMERGY RX300 S5 D2619
• PRIMERGY RX300 S6
• PRIMERGY RX350 S7
• PRIMERGY RX350 S8
• PRIMERGY RX600 S6
• PRIMERGY RX600 S5
• PRIMERGY RX900 S1
• PRIMERGY RX900 S2
• PRIMERGY SX150 S8
• PRIMERGY SX350 S8
• PRIMERGY SX940 S1 QUAD-DISK BLADE
• PRIMERGY SX960 S1
• PRIMERGY TX100 S3
• PRIMERGY TX100 S3-P
• PRIMERGY TX100 S1
• PRIMERGY TX100 S2
• PRIMERGY TX120 S3
• PRIMERGY TX120 S3-P
• PRIMERGY TX120 S2
• PRIMERGY TX1320 M1
• PRIMERGY TX1330 M1
• PRIMERGY TX140 S1
• PRIMERGY TX140 S1-P
• PRIMERGY TX140 S2
• PRIMERGY TX150 S8
• PRIMERGY TX150 S7
• PRIMERGY TX200 S7
• PRIMERGY TX200 S5
• PRIMERGY TX200 S6
• PRIMERGY TX2540 M1
• PRIMERGY TX300 S7
• PRIMERGY TX300 S8
• PRIMERGY TX300 S6
