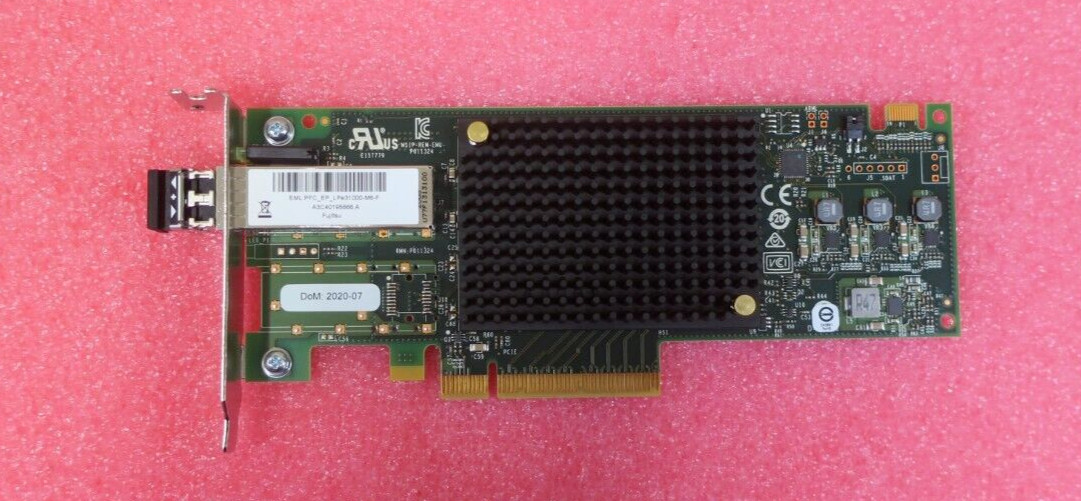

Fujitsu LPe31000 Single Port 16Gb FC PCIe HBA Host Bus Adapter
LPe31000S26461-F5596-L201 /S26461-F5596-L201Material No:38063067New Pull From New Servers2 Year WarrantyLow Profile Card With Half Height BracketIncluded

• 1 xFujitsu LPe31000 Single Port 16Gb FC PCIe HBA Host Bus Adapter S26461-F5596-L201
• 1 x Avago 16Gb/s FC SFP+ Transceiver Module Emulex Gen 6 16 Gb Fiber Channel (FC) Host Bus Adapters (HBA) by Broadcom for PRIMERGY and PRIMEQUEST server systems are optimal Fiber Channel HBAs for virtualized, cloud and mission critical deployments. The PFC EP Emulex Gen 6 Fiber Channel HBAs LPe31000 by Broadcom take performance to a new level with PCIe 3.0 support, data integrity capabilities and cloud scale reliability, and ease of use. Organizations looking to improve performance, protect against data corruption, and simplify operations of FC SANs in cloud or high performance environments can benefit from deploying the PFC EP LPe31000.
  The single and dual port FC HABs feature the Emulex bullet-proof driver stack built on a heritage reaching back to the first generation Fiber Channel adapters resulting in rock-solid reliability in 16 Gb/s, 8 Gb/s and 4 Gb/s environments. With over 1.6 million IOPS on a single port, they are ideally suited for Fiber Channel connectivity to flash storage arrays.
  Compared to the previous generation, Emulex Gen 6 HBAs deliver 2x greater bandwidth - 6,400MBps (2 ports 16G, full duplex), less than half the latency, and support an industry-leading 1.6 million IOPS on a single port, ensuring SLAs are Type: Host bus adapter
• Form Factor: Plug-in card - low profile
• Interface (Bus) Type: PCI Express 3.0 x8
• PCI Specification Revision: PCIe 3.0

Networking

• Ports: 16Gb Fibre Channel Gen 6 x 1
• Connectivity Technology: Wired
• Cabling Type: Fiber optic
• Data Link Protocol: 16Gb Fibre Channel Gen 6 (Short Wave)
• Fibre Channel: FC-AL, FC-AL-2, FC-DA, FC-FLA, FC-FS, FC-GS-2, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-Tape, FC-SP, FCP-4, FCP, FCP-2, FC-PI-2, FC-FS-2, FC-GS-5, FC-PI-4, FC-GS-6, FC-HBA, FC-PI-5, FC-LS-2, FC-SP-2, FC-MJS, FC-SB-4, RFC2625, SSC-2, SBC-2, SPC-3, SBC-3, SPC-4, SSC-3
• Data Transfer Rate: 14.025 Gbps
• Max Transfer Distance: 623 ft
• Status Indicators: Link/activity
• Features: Auto-negotiation
