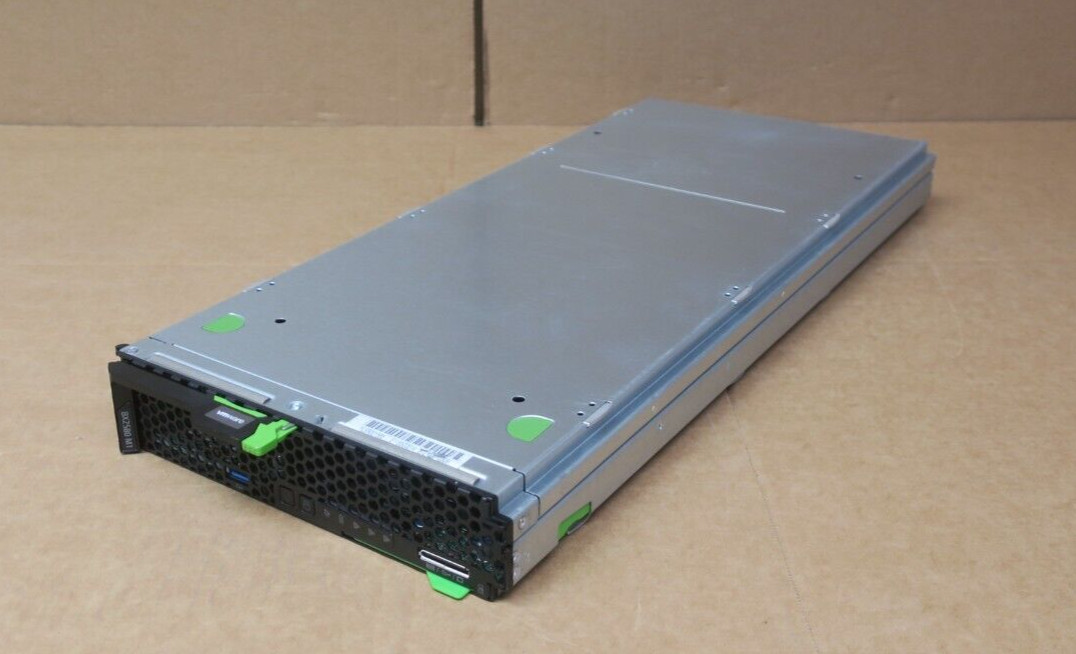

Fujitsu Primergy BX2580 M1 2x E5-2600v3 CPU 24-DIMM CTO Server Blade

In Good Condition, Full Working Order
Tested
2 Year Warranty
2x Heatsinks Are Included

CTO Configure-To-Order, No Processors, No Memory, No Hard Drives Are Included, If Required Please Ask For a Quote

PLEASE NOTE THAT THESE ARE BLADE SERVERS AND THAT THEY WILL NOT OPERATE WITHOUT A FUJITSU BLADE CHASSIS (NOT INCLUDED IN THE SALE)

• 1 xFujitsu Primergy BX2580 M1 2x E5-2600v3 CPU 24-DIMM CTO Server Blade
• 1 x Fujitsu Primergy Heatsink CPU1A3C40175745
• 1 x Fujitsu Primergy Heatsink CPU2 A3C40175747
• 1 x Fujitsu Primergy 2-Port 10Gb Mezzanine Card D3025-A11 A3C40110781S26361-F3997-L1
• 1 x Fujitsu Primergy 2-Port 10Gb CNA Mezzanine Card type: D3321
• Chipset: Intel quantity and type: 1 - 2 x Intel Xeon processor E5-2600 v3 product family

• Memory slots: 24 (4 channels per CPU with 3 slots each)
• Memory slot type: DIMM (DDR4)
• Memory capacity (min. - max.): 8 GB - 1536 GB
• Memory protection:
• Advanced ECC
• Memory Scrubbing
• SDDC (Chipkill)
• Memory Mirroring support
• Rank sparing memory 2.0 ports: 4 (4x USB via special cable)
• USB 3.0 ports: 2 (1x USB at the front side + 1x USB intern)
• Graphics (15-pin): 1 x VGA at the front via special cable
• LAN / Ethernet: 2 x 10 Gbit/s or 4 x 1Gbit/s via Midplane to Ethernet Connection Blade
• Management LAN (RJ45): Management LAN traffic can be switched to shared onboard LAN port
• Serial: 1 3.0 x8 2 x BX900 Mezzanine card
Drive bays
• Storage drive bays 2 x 1.8-inch SATA SSD
Operating panel
• Operating buttons
• On/off switch
• ID button
• Status LEDs
• Power (amber / green)
• System status (orange)
• LAN connection (green)
• Identification (blue)
• CSS (orange)

We can supply this server with a different specification to suit your requirements; more or less memory, hard drives, additional network cards etc. Please contact us for a quote.VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£200 Excluding VAT

VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
