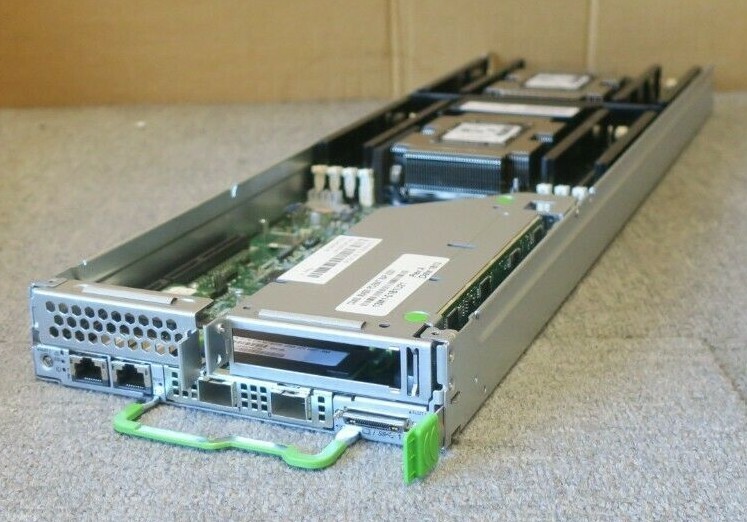

Fujitsu Primergy CX2570 M4 2x CPU 16x DIMM CTO Server Node
Node System No:S26361-K1616-V100Node P/N:ABN K1616-V100-26
In Good Condition, Full Working OrderTested2 Year Warranty
Configure-To-Order CTO
Please note CPU, memory and a CX400 M4 Chassis is required to operate this server
Includes:

• 1 x Fujitsu CX2570 M4 Server Node Blade S26361-K1616-V100
• 1 x Heatsink A3C40200720
• 1 x Heatsink A3C40200719
• 1 x Intel X527-DA2 Dual Port 10GbE SFP+ OCP Network Adapter X527DA20CPG1P5
• 1 x 32GB SATA 6G M.2 SSD 10602155717
• 1 x Riser Card unit: PRIMERGY CX2570 M4 PCI air cooling
• Housing types: Air-cooled node
• Product Type: Dual Socket 2U Server type: D 3854
• Chipset: Intel C624
• Processor quantity and type: 1 - 2 x Intel Xeon Bronze 3xxx processor / Intel Xeon Silver 4xxx processor / Intel Xeon Gold 5xxx processor / Intel Xeon Gold 6xxx processor / Intel Xeon Platinum 8xxx processor
• Graphics add on cards: GPU computing card: NVIDIA Tesla Referral V100, 5120 cores , PCIe 3.0 x16
• Memory slots: 16 (8 DIMMs per CPU, 6 channels with 2 slots per channel)
• Memory capacity (min. - max.): 8 GB - 2048 GB
• Memory protection:
• Advanced ECC
• SDDC
• Rank sparing memory support
• Memory Mirroring support
• Notes: 2x in PRIMERGY CX400 M4
Interfaces
• USB 3.0 ports: 2 x USB 3.0 (rear) with high density connector
• Graphics (15-pin): 1 x VGA (1x rear) with high density connector
• LAN / Ethernet (RJ-45): 2 / 1x Gbit/s Ethernet + 1x service LAN Onboard
• Management LAN (RJ45): Management LAN traffic can be switched to shared onboard Gbit LAN port
Onboard or integrated Controller
• RAID controller: RAID 0/1 for internal drives
• SATA Controller: Intel C624, for up to 6x 2.5inch SATA HDD or SSD Raid 0/1
• LAN Controller:
• Optional DynamicLoM OCP adaptors:
• 4 x 1 Gbit/s Ethernet (RJ45)
• 2 x 10 Gbit/s Ethernet (RJ45)
• 2 x 10 Gbit/s SFP+
• 4 x 10 Gbit/s SFP+
• Dynamic LOM can be installed in OCP slot as option
• Remote management controller: IPMI 2.0 compatible
• Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller)
• Trusted Platform Module (TPM): optional TPM
Slots
• PCI-Express 3.0 x16: 1 x for low profile and 1x for OCP Type1
Drive bays
• Storage drive bays: up to 6x 2.5-inch (in the PRIMERGY CX400 M4 chassis)
• Storage drive bay configuration: Up to 6x 2.5” device can be installed in CX400 M4 and 2x M.2 device can be installed in CX2570 M4 node
General system information
• Fan configuration: Redundant and hot-plug fans part of CX400 M4 chassis
Operating panel
• Operating buttons:
• On/off switch
• ID button
• Status LEDs:
• Power (green)
• System status (orange)
• LAN speed (green / yellow)
• LAN connection (green)
• Identification (blue)
BIOS
• BIOS features:
• UEFI compliant
• Legacy BIOS compatibility customer configuration option
• Secure boot support
• IPMI support
• BIOS settings save and restore
• Remote iSCSI boot support
• Remote PXE boot support
Operating Systems and Virtualization Software
• Certified or supported operating systems and virtualization software:
• VMware vSphere 7.0
• VMware vSphere 6.7
• VMware vSphere 6.5
• VMware vSphere 6.0
• Red Hat Enterprise Linux (W x D x H): 174.3 x 580 x 82.4 mm
• Node size: 2U half wide
• Weight: 8.2 kg
We can supply this server with a different specification to suit your requirements; more or less memory, different or additional hard drives, additional network cards etc. Please contact us for a quote.
VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£700 excluding VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UKCS 256814
