1.Main Parameters
Product Name

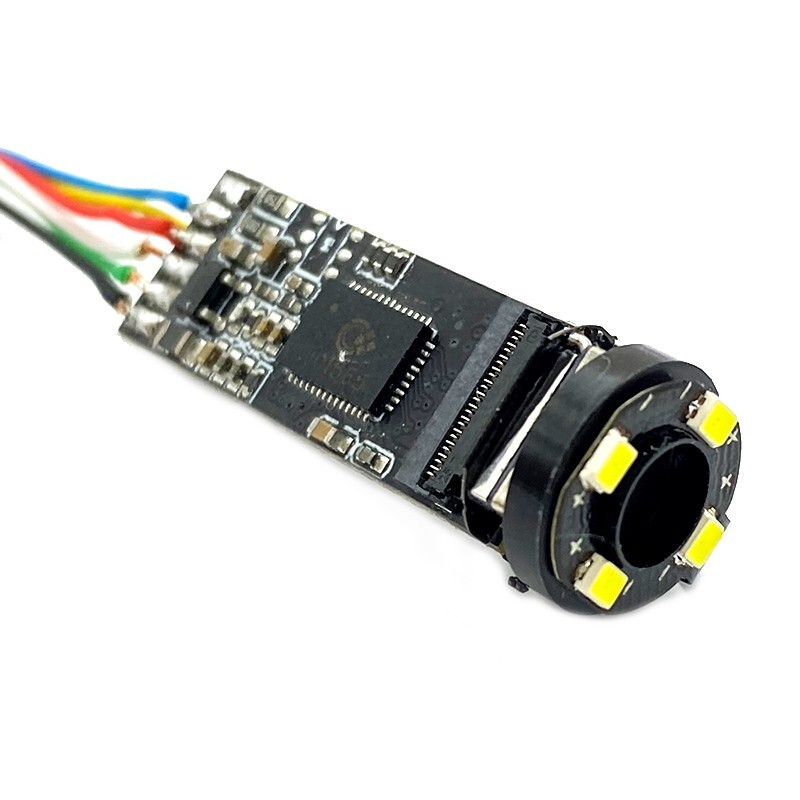

5MP USB2.0 Camera Module
Product Code
Module Size
Diameter: 11mm, PCB: 32.3*11mm
Image Sensor
1/5.0-inch GC5035 CMOS Sensor
Max. Resolution
2952 H x 1944 V
Pixel Size
1.12*1.12μm
Output Format
MJPEG, YUY2
Field of View
77°
Lens
EFL: 2.83mm, F/No. 2.0, 4P+IR 650nm
Focus Mode
Autofocus
Shutter Mode
Electronic Rolling Shutter
Output & Power Supply
High Speed USB2.0
Interface
6PIN Welding Spots
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS
UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.
Connection Cable
Default1.0 Meter USB Cable
2.Supported Resolutions and Frame Rates
Formats
Resolutions
Frame Rates
MJPEG
2592x1944
30FPS
2048x1536
30FPS
1920x1080
30FPS
1280x720
30FPS
800x600
30FPS
640x480
30FPS
YUY2
2592x1944
3FPS
2048x1536
3FPS
1920x1080
5FPS
1280x720
10FPS
640x480
30FPS
3.PIN Definitions
Pin No.
Signal Names
Descriptions
1
Key
Shot Key
2
LED
LED+
3
VCC
DV 5V
4
DM
USB2.0 Data-
5
DP
USB2.0 Data+
6
GND
Ground
4.Working Conditions
Working Voltage
DC 5V
Working Current
180mA
Working Temperature
-20°C ~ 60°C
Storage Temperature
-20°C ~ 85°C
Humidity
80 ~85%
