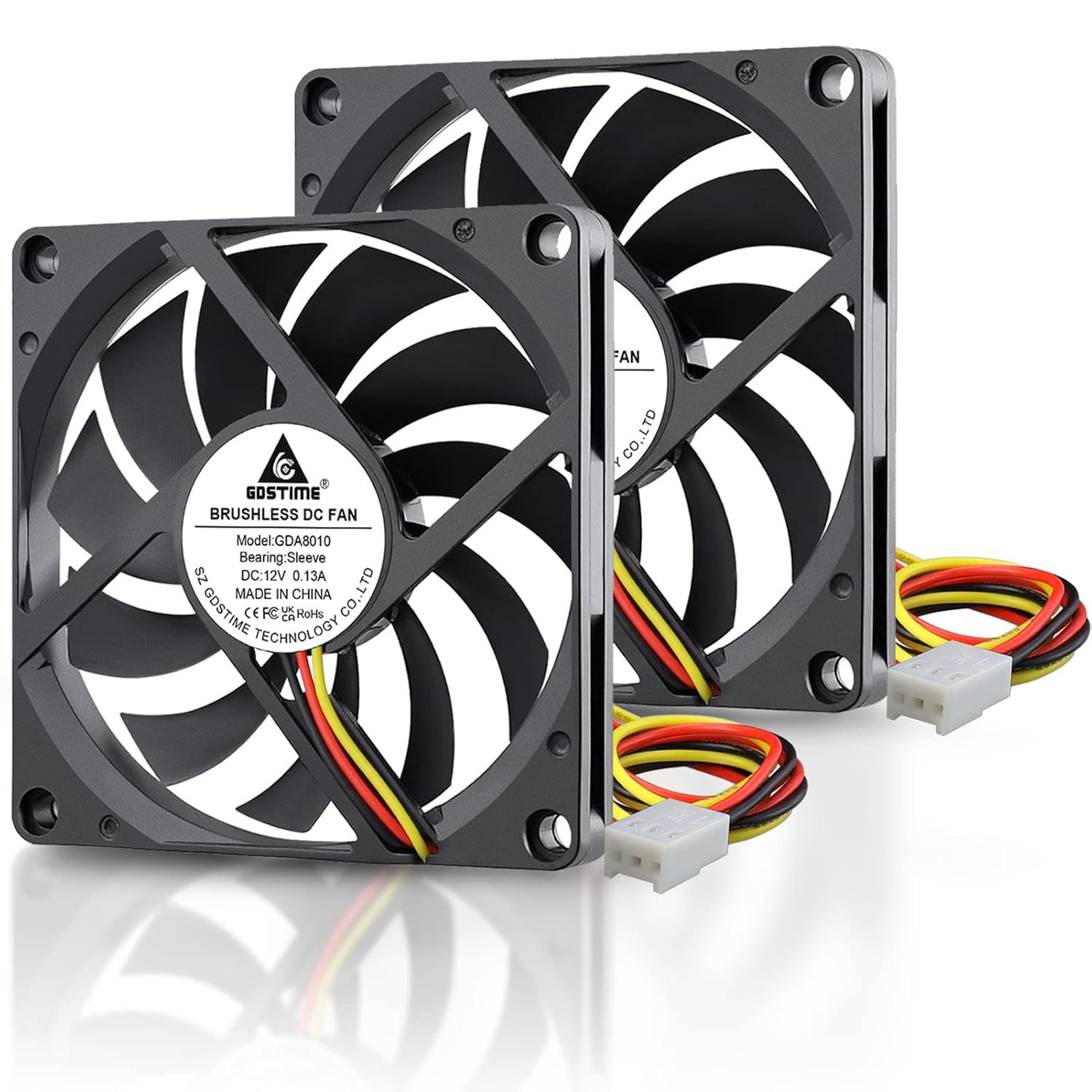

GDSTIME Quiet 80Mm Fan, 12V 3PIN 80Mm X 80Mm X 10Mm Brushless DC Fan for CPU CoolersDescription Item model number GDT8010S12V3PINFS Power Connector Type 3-Pin Cooling Method Air Noise Level 25.6 Decibels Wattage 1.8 watts Material Plastic Compatible Devices Desktop Brand GDSTIME Voltage 12 Volts Maximum Rotational Speed 2500 RPM Manufacturer GDSTIME Product Dimensions 0.42"L x 3.15"W x 3.15"H Size 80x10mm

• Ultra-Slim Profile: An ultra- slim design provides a thin 10.7mm profile. The 8010 fan is the perfect solution for tight spaces
• Motherboard (CPU) 3 Pin Fan Connector: This 80 mm fans have a 3-pin fan connectors with 25cm (9.8″) 26 AWG tail wires; Red wire "+"; Black wire "-"; the Yellow wire can Tachometric Signal
• Safety Protection: The fan comes with premium brushless motor, with metal fan grill on the fan side can protect your hand and prevent cable damage from blade
• LOW Noise Operation: The fan spins at speed of 2500 RPM and generates airflow of 18.9 CFM, and has a maximum noise level rating of 25.6 dBA; It's like the volume level of two people whispering
• Fan Specs: Size: 80 x 80 x 10.7 mm (3.15 x 3.15 x 0.42 in.) | Rated Voltage: 12VDC | Rated Current: 0.13Amp | Sleeve Bearing | Power: 1.8W | Static Pressure: 0.13 In H2O
• What's in the Box: Includes two 80x80x10 mm 3pin fans, two 8cm metal fan grills, and mounting screw set

This is a fairly thin, multi blade 80mm cpu fan
This is a 80mm dc cooling fan having a thickness of 10.7mm. The 80mm x 80mm fan has an installation height of only 10.7 mm, making it suitable for small form factor cases & for installations for which a 25 mm fan does not fit. Corresponding screws for mounting are already included.
80mm Slim Cooling Fan are perfect for adding discrete airflow for space-restricted applications; Ideal for small PC cases (HTPC, Mini ITX, MATX Builds, Small Form Factor), or as a replacement fan for broken or old 12v 8cm fans in small form factor home theatre pc, HF radio amplifier and more.
This is a premium quality 12 volt 80mm Brushless Fan, comes with long life low noise sleeve bearing that has an operating lifetime of 35,000 hours. The fan's Blade / Housing is constructed of Plastic Material UL 94V-0 P.B.T. which have a high resistance to flammability. Impedance protected motors contains pure copper coil that have a higher resistance to heat during a rotor lock. It is a 3-pin connector fan with 250mm / 9.84 inches enough long power cable. The yellow wire is used for testing fan speed. If only wired the black & red wire, the fan will run at full speed all the time.
The fan generates an airflow of 18.9 CFM and static pressure of 0.13 mmH2O. It is a 2-pin connector fan and spins at a constant speed of 2500 RPM. It is also very quiet in operation and has a maximum noise rating of 25.6 dBA.
Besides two 80x80x10mm 3 pin fans, it comes with nuts/bolts long enough to mount for your use, also includes two 80mm metal fan guards are used to provide a physical barrier around spinning fan blades to prevent accidental contact with fingers or other objects.
So, if you looking for a ultra slim and quiet 80mm cpu cooler fan then you won’t find anything better than this.
