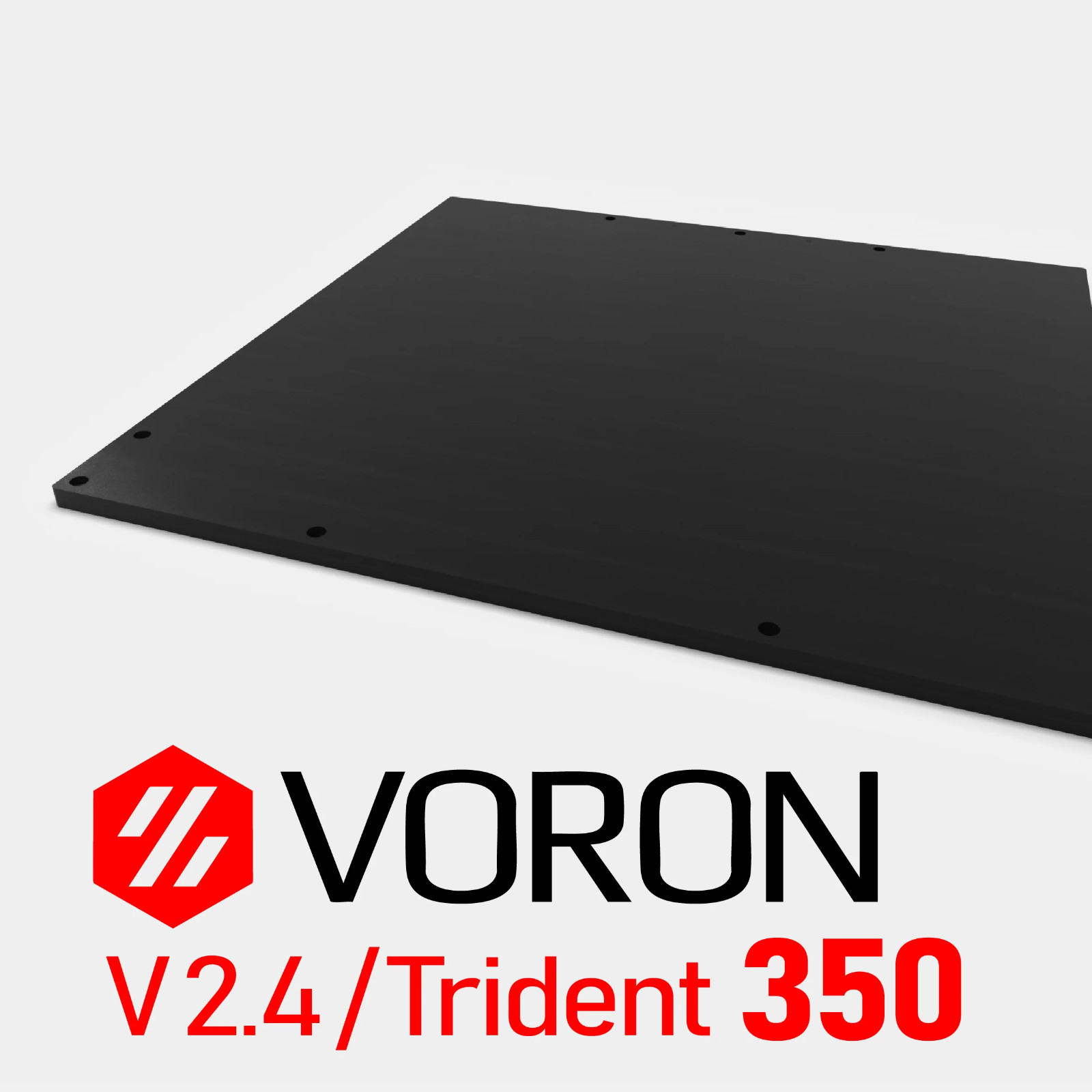

Brand new N20 Factory Voron V2.4/Trident 350 Graphite Bed Plate. This will have perfect flatness for all materials and all print jobs! THIS WILL ONLY FIT ON VORON V2.4 AND TRIDENTS. Will not fit any other printers but if you're willing to make an adaptor it will work.

Features:

Suitable for Voron V2.4, Trident

- High density graphite plate

- Precision CNC machined

- 7 counterbore holes for mounting (V2.4, Trident)

- 2 threaded M3 holes for thermal fuses

- Chamfer finish on all sides and edges

- 8mm Thickness

- Kinematic mount compatible

- Inductive probe, klicky probe, Tap, Beacon compatible

- Weight: 1.67kg

Installation:

7 slots are machined and counterbored to mounting onto stand off m4 knurled nuts, install the thermal fuses to the one of the M3 threaded hole.

Flatness:

All of our beds are manually inspected before dispatch to ensure that they conform to a flatness tolerance of ≤0.1mm between highest and lowest point on the top surface.

Preparation:

Before applying the magnetic sheet to the graphite build plate or silicone heater tothe bottom side, we recommend to wipe clean with isopropyl alcohol (IPA).

This will ensure all dirt, dust and debris is removed and the surface is clean prior to application. This will also facilitate a better bond for the adhesive especially on the silicone heater pad.
