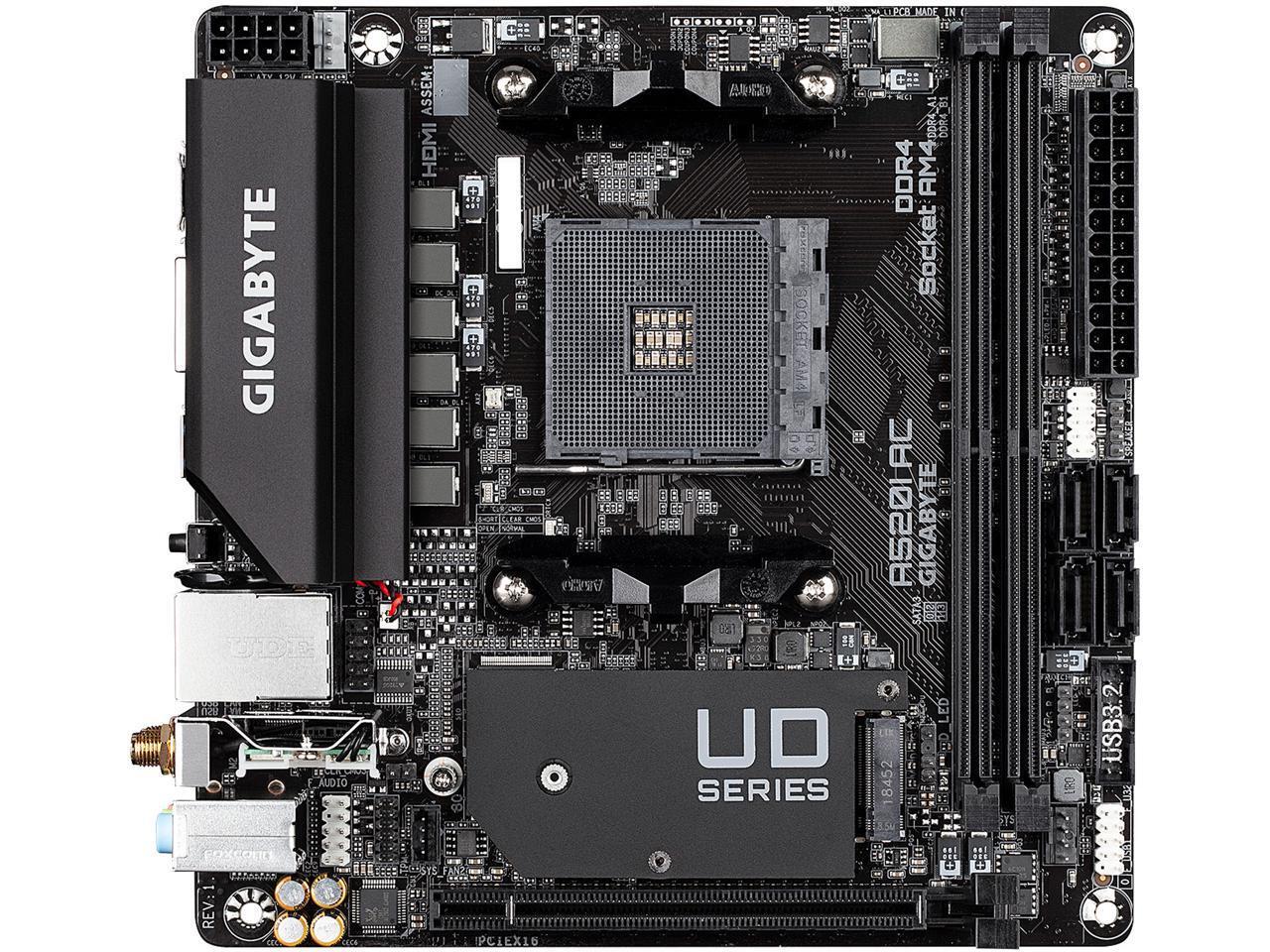

Learn more about GIGABYTE A520I ACModelBrandGIGABYTEModelA520I ACSupported CPUCPU Socket TypeAM4CPU TypeAMD Socket AM4, support for: AMD Ryzen 5000 Series / 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors* Support for Ryzen 5000 Series with BIOS UPDATE. Refer to GIGABYTE website for CPU support list.ChipsetsChipsetAMD A520MemoryNumber of Memory Slots2x288pin (DDR4)Memory Standard3rd Gen AMD Ryzen Processors:Support for DDR4 5100(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules3rd Gen AMD Ryzen with Radeon Graphics processors:Support for DDR4 5300(O.C.)/ 5200(O.C.)/ 5000(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modulesMaximum Memory Supported64GBChannel SupportedDual ChannelExpansion SlotsPCI Express 3.0 x161 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16Storage DevicesSATA 6Gb/s4 x SATA 6Gb/sM.21 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)SATA RAID0/1/10Onboard VideoOnboard Video ChipsetIntegrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:1 x DisplayPort port, supporting a maximum resolution of 5120x2880@60 Hz* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.Support for up to 3 displays at the same timeMaximum shared memory of 16GBOnboard AudioAudio ChipsetRealtek ALC887Audio Channels2/4/5.1/7.1-channel* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.Onboard LANLAN ChipsetRealtek GbE LAN chipMax LAN Speed1GbpsWireless LANIntel Wi-Fi AC 3168WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-BandSupport for 11ac wireless standard and up to 433 Mbps data rate* Actual data rate may vary depending on environment and equipment.BluetoothBLUETOOTH 4.2Rear Panel PortsBack I/O Ports1 x DisplayPort2 x HDMI ports4 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x Q-Flash Plus button1 x RJ-45 ports2 x SMA antenna connectors (1T1R)3 x audio jacksInternal I/O ConnectorsOnboard USB1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 headerOther Connectors1 x CPU fan header2 x system fan headers1 x addressable LED strip header1 x RGB LED strip header1 x front panel header1 x front panel audio header1 x speaker header1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)1 x serial port header1 x Clear CMOS jumperPhysical SpecForm FactorMini ITXLED LightingRGBDimensions (W x L)6.7" x 6.7"Power Pin1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connectorWindows 11 CompatibilityWindows 11SupportedFeaturesFeaturesI/O Controller:
iTE I/O Controller ChipH/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.BIOS:
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress InstallBundled Software:
Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control UtilityOperating System:
Support for Windows 10 64-bit
Support for Windows 11 64-bitShippingEnjoy fast and reliable shipping when you buy your products from Newegg. Our ordering and shipping services are among the best in the industry due to short processing times and a variety of shipping methods. Your orders are packaged at one of the many local warehouses across the country, minimizing delivery times and ensuring you get your purchases as soon as possible.PaymentsNewegg has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology.ReturnReturns are subject to restocking fees of 15% - 30% of the purchase price and return shipping fees. For products that are eligible for return for replacement, the return shipping labels are free for returns for replacement of the same item within the applicable return policy period. Newegg does NOT charge for restocking fees or return shipping labels for returns of defective products, or if you received the wrong product, the product did not match what was shown on the Site, or we made some other shipping error, provided the item is returned within its return policy period, and in accordance with the Return Policy.
