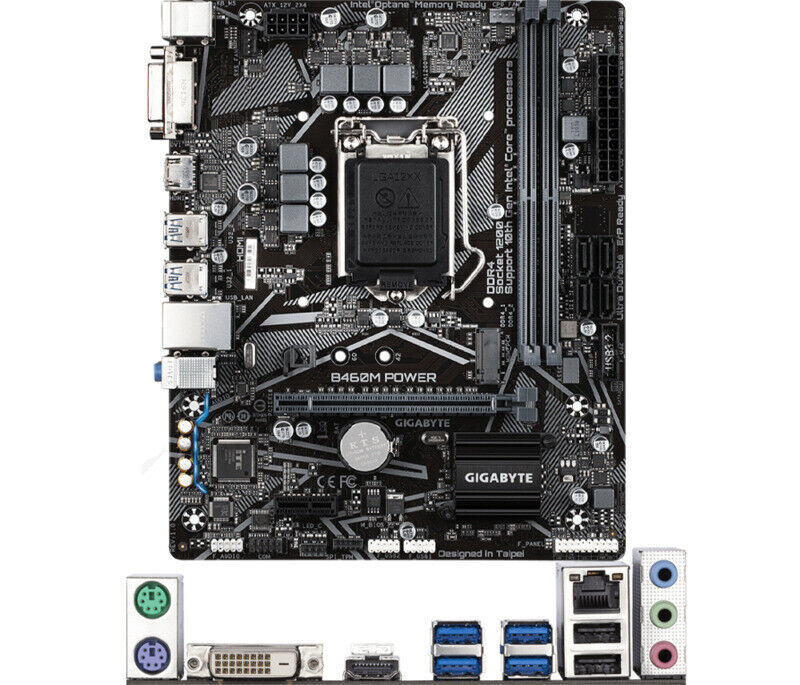

GIGABYTE B460M POWER Motherboard LGA 1200 Intel B460 2*DDR4 Micro ATX HDMI PS/2

CPU

Support LGA1200 socket - 10th generation processors:

Intel® Core™ i9 Processor/Intel® Core™ i7 Processor/Intel® Core™ i5 Processor/Intel® Core™ i3 Processor/Intel® Pentium® Processor/Intel® Celeron® Processor

L3 cache memory depends on CPU

Chipset

Intel® B460

RAM

Intel®Core™ i9/i7 Processor:

Support DDR4 2933/2666/2400/2133 MHz

Intel®Core™ i5/i3/Pentium®/Celeron® Processor:

Support DDR4 2666/2400/2133 MHz

2 DDR4 DIMM slots supporting up to 64 GB (single slot supports 32 GB capacity)

Supports dual-channel memory technology

Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory (operating in non-ECC mode)

Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory

Supports Extreme Memory Profile (XMP) memory

Display function

Built-in Graphics Capable Processor - Supports Intel® HD Graphics:

1 DVI-D interface, can support resolution up to 1920x1200@60 Hz

*This DVI-D interface does not support the function of converting to VGA.

1 HDMI port, supports resolution up to 4096x2160@30 Hz

* Support HDMI 1.4 version and HDCP 2.3.

Supports maximum shared display memory*512 MB

Sound effect

Integrated Realtek® ALC887 chip

Support High Definition Audio

Support 2/4/5.1/7.1-channel

The internet

Integrated Realtek® GbE network chip (1000/100 Mbit)

Expansion slot

1 PCI-E x16 slot, supports x16 running specification

1 PCI-E x1 slot

(All PCI-E slots support PCI-E 3.0)

Support ASPM L1.2 power management protocol

Storage device interface

Chipset:

1x M.2 slot (support Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD)

4 SATA 3.0 ports

Supports SATA RAID 0, RAID 1, RAID 5 and RAID 10 functions

Intel® Optane™ Memory Ready

Support ASPM L1.2 PCI-E power management protocol

USB

Built into the chipset:

6 USB 3.2 Gen 1 ports (4 on the rear panel, 2 need to be connected from the USB socket on the motherboard via a cable)

6 USB 2.0/1.1 ports (2 on the rear panel, 4 need to be connected from the USB socket on the motherboard via a cable)

Internal socket

1 24 PIN motherboard power socket

1 x 8 PIN CPU power socket

1 CPU fan header

1 system fan socket

Š 1 RGB LED strip power socket

4 SATA 3.0 sockets

1 x M.2 SSD socket

1 motherboard jumper socket

1 front audio jack

1 USB 3.2 Gen 1 socket

2 USB 2.0/1.1 sockets

1 security encryption module socket (only used with GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0)

1 COM socket

1 clear CMOS data pin

Rear panel unit connection socket

1 PS/2 mouse interface

1 PS/2 keyboard interface

1 DVI-D interface

1 HDMI interface

4 USB 3.2 Gen 1 ports

2 USB 2.0/1.1 ports

1 RJ-45 network cable interface

3 audio interfaces

I/O Controller

Integrated iTE® I/O controller chip

BIOS

1 x 128 Mbit flash

Use an authorized AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

OS

Support Windows 10 64-bit

Form factor

Micro ATX ; 22.6cm x 18.5cm

• 1 x motherboard.

• 2 x SATA II cables.

• 1 x I/O shield.
