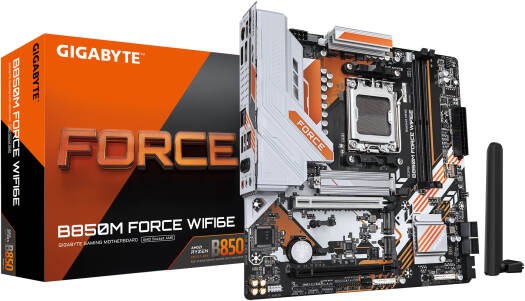

B850M FORCE WIFI6E
The GIGABYTE B850M FORCE WIFI6E is a Micro ATX motherboard built on the AMD B850 chipset, supporting AMD Ryzen 7000, 8000, and 9000 series processors with the AM5 socket. It features a compact form factor (244 x 244 mm) and includes 2 DDR5 DIMM slots supporting up to 128GB memory with speeds up to 9600 MHz (OC). The board supports dual-channel memory with AMD EXPO profiles and offers stable 8+2+2 phase digital VRM power delivery.
Specifications
CPUAMD Socket AM5; supports AMD Ryzen™ 9000 / 8000 / 7000 Series ProcessorsChipsetAMD B850MemoryDDR5 up to 9600(OC) MT/s; 2× DIMM slots up to 128 GB; Dual channel; non-ECC Un-buffered; supports AMD EXPO™ & XMPOnboard GraphicsAMD Radeon™ integrated GPU; HDMI 2.1 (4096×2160 @ 60 Hz); DisplayPort 1.4 (3840×2160 @ 144 Hz); HDCP 2.3, HDRAudioRealtek® Audio CODEC; HD Audio; 2/4/5.1/7.1 chLANRealtek® 2.5 GbE LANWirelessMediaTek Wi-Fi 6E MT7902 (2.4/5/6 GHz, 11ax 160 MHz); Bluetooth 5.3Expansion Slots1× PCIe x16 (CPU): Ryzen 9000/7000 → PCIe 5.0 x16, Ryzen 8000 (Phoenix 1) → PCIe 4.0 x8, Phoenix 2 → PCIe 4.0 x4; 1× PCIe x16 (Chipset) PCIe 4.0 x4Storage Interface3× M.2 (Support PCIe 5.0/4.0 x4/x2 SSDs depending on CPU); 4× SATA 6 Gb/s; RAID 0/1/5/10 (NVMe) – RAID 5 only on Ryzen 9000; RAID 0/1/10 (SATA)USBCPU: 1× USB-C 3.2 Gen 1 (rear), 1× USB 3.2 Gen 2 Type-A (red), 1× USB 2.0 (rear)
Chipset: 1× USB-C 3.2 Gen 1 (internal), 4× USB 3.2 Gen 1 (2 rear + 2 internal), 5× USB 2.0 (1 rear + 4 internal)Internal I/O24-pin ATX + 8-pin CPU power; multiple fan + pump headers; 3× ARGB Gen2 + 1× RGB headers; 3× M.2 slots; 4× SATA; front panel + audio; USB-C/USB 3.2 Gen 1/USB 2.0 headers; TPM header; Reset + Clear CMOS jumpers; Q-Flash Plus buttonBack PanelHDMI, DisplayPort, PS/2, USB-C 3.2 Gen 1, 2× USB 3.2 Gen 1, 1× USB 3.2 Gen 2 (red), 2× USB 2.0, RJ-45 (2.5 GbE), 2× antenna ports, 3× audio jacksI/O ControlleriTE® ControllerH/W MonitoringVoltage, temperature, fan speed, water flow; fan fail warning; speed controlBIOS256 Mbit AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique FeaturesGIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart BackupBundled SoftwareNorton® Internet Security (OEM)OS SupportWindows 11 64-bit, Windows 10 64-bitForm FactorMicro ATX (24.4 × 24.4 cm)
