Package Included:

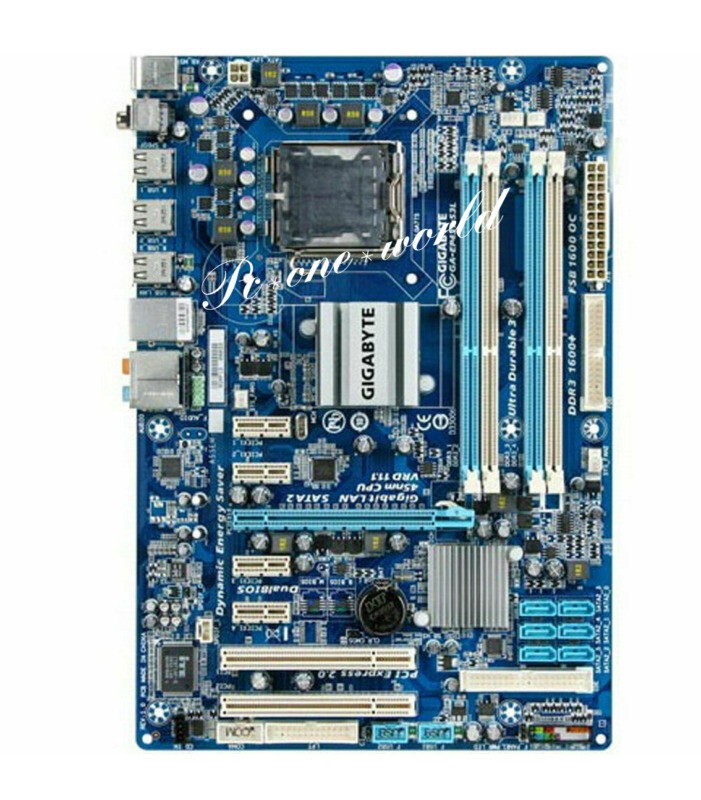

1 x motherboard
1 x I/O back panel
2 x SATA II cable
Technical Tips:
A. Please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.
B. Please check your CPU, and RAM without problem, then install on the motherboard.
C.If the motherboard can't run correctly, please first check your CPUwhether can be compatible with our motherboard, then check your videocard or power supply.
D. 90% "can't boot" problem was caused by RAM, please don't use "single side" RAM.
Parts LGA775 socket processors: Intel® Core™ 2 Extreme processor/Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/Intel® Pentium® processor/Intel® Celeron® processor
L2 cache depends on CPU
System Bus (FSB)
Supports 1600(O.C.)/1333/1066/800 Bridge: Intel® P43 Express Chipset
South Bridge: Intel® DDR3 DIMM slots, support up to 16 GB
Supports dual-channel memory technology
Supports DDR3 1600/1333/1066/800 MHz
Sound effect
Built-in Realtek ALC888 chip
Support High Definition Audio
Support 2/4/5.1/7.1 channel
Support S/PDIF input/output
Support CD audio input
The internet
Built-in RTL8111C chip (10/100/1000 Mbit)
Expansion slot
1 x PCI Express x16 slot, supports x16 operation specification (PCI Express x16 slot supports PCI Express 2.0)
4 x PCI Express x1 slots
2 x PCI slots
Storage device interface
Built-in Southbridge chip:
6 x SATA 3Gb/s sockets, can connect 6 SATA 3Gb/s devices
Built-in JMicron 368 chip:
1 IDE socket supports ATA-133/100/66/33 specifications, up to 2 IDE devices can be connected
Built in iTE IT8718 Southbridge chip
*Support up to 12 USB 2.0/1.1 ports (8 on the rear panel, 4 need to be connected to the USB socket on the motherboard via a flat cable)
Internal socket
1 x 24-pin ATX main power socket
1 x 4-pin ATX 12V power socket
1 x Floppy Drive Socket
1 x IDE socket
6 x SATA 3Gb/s sockets
1 x CPU Fan Header
2 x System Fan Header
1 x Power Fan Socket
1 x Front Control Panel Socket
1 x Front Audio Jack
1 x CD-ROM audio input socket
1 x S/PDIF input socket
1 x S/PDIF output socket
2 x USB 2.0/1.1 sockets
1 x Parallel Port Socket
1 x Serial Port Socket
1 x System Power Indicator Socket
1 x computer case open detection socket
1 x Clear CMOS data function pin
Rear panel unit connection socket
1 x PS/2 keyboard socket
1 x PS/2 mouse socket
1 x S/PDIF coaxial output jack
1 x S/PDIF optical output socket
8 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio connectors (center and subwoofer output/rear speaker output/side speaker output/audio input/audio Controller
Built-in iTE IT8718 chip
BIOS
2 x 8 Mbit flash
Use an authorized AWARD BIOS
Support DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
operating system
Support Microsoft/ Windows/ Vista/XP
Form Factor
ATX ; 30.5cm x 21.0cm
