Welcome to our store

Dear valued buyer, thank you for viewing our items.
We will provide you the best service and high quality products.
Each motherboard will be tested before shipping, we ensure it 100% working, and with safty package.
You must be happy to do business with us.

Warm Tips

1. Please do usegenuinebrand RAM, this motherboard can't work with fake RAM.

2. If the motherboard can't run correctly, please first check your CPU whether can be compatible with our motherboard.

3. Most of "can't boot" problem was caused by RAM, please don't use "single side" RAM.

Sepcifiction

CPU

1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
2. L3 cache varies with CPU

(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.0029

Chipset

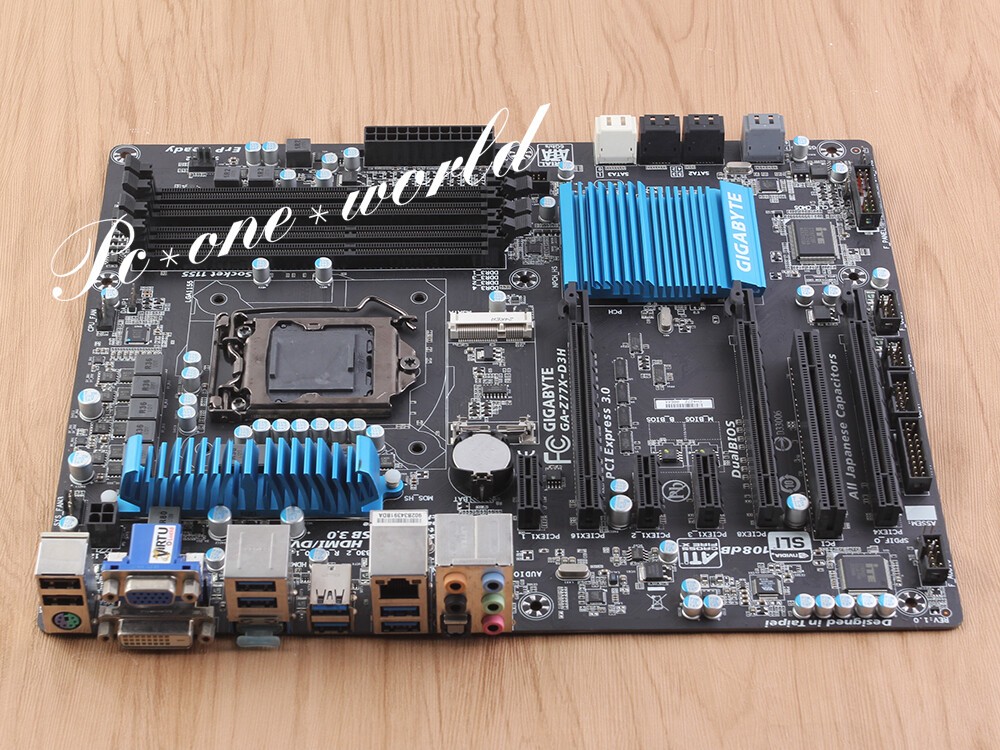

Intel® Z77 Express Chipset

Memory

1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
   * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
2. Dual channel memory architecture
3. Support for DDR3 2800(OC)/1600/1333/1066 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor:

1. 1 x D-Sub port
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
   * The DVI-D port does not support D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of 1920x1200

Audio

1. VIA VT2021 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out

LAN

1. 1 x Atheros GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
   * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
   * The PCIEX4 slot shares bandwidth with the PCIEX1_1/2/3 slots. The PCIEX1_1/2/3 slots slots will become unavailable when a PCIe x4 expansion card is installed.
4. 3 x PCI Express x1 slots
   (PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
5. 1 x PCI slots

Multi-Graphics Technology

1. Support for 2-Way AMD CrossFireX™/NVIDIA SLI technology (PCIEX16 and PCIEX8)

Storage Interface

Chipset:

1. 2 x SATA 6Gb/s connectors (SATA3 0/SATA3 1) supporting up to 2 SATA 6Gb/s devices
2. 4 x SATA 3Gb/s connectors (SATA2 2~SATA2 5) supporting up to 4 SATA 3Gb/s devices
3. 1 x mSATA connector
   * The SATA2 5 connector will become unavailable when the mSATA connector is installed with a solid state drive.
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
   * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.

1 x Marvell 88SE9172 chip:

1. 2 x SATA 6Gb/s connectors (GSATA3 6/GSATA3 7) supporting up to 2 SATA 6Gb/s devices
2. Support for RAID 0 and RAID 1

USB

Chipset:

1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
   * In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
2. Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

VIA VL800 chip:

1. Up to 4 USB 3.0/2.0 ports on the back panel
   * Due to a Windows 7 limitation, please connect your USB device(s) to the USB 2.0/1.1 port(s) before the VIA USB 3.0 controller driver is installed.

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 4 x SATA 6Gb/s connectors
4. 4 x SATA 3Gb/s connectors
5. 1 x mSATA connector
6. 1 x CPU fan header
7. 3 x system fan headers
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x S/PDIF Out header
11. 1 x USB 3.0/2.0 header
12. 2 x USB 2.0/1.1 headers
13. 1 x serial port header
14. 1 x Clear CMOS jumper
15. 1 x Trusted Platform Module (TPM) header

Back Panel Connectors

1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 1 x HDMI port
5. 6 x USB 3.0/2.0 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 1 x optical S/PDIF Out connector
9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In/Mic In, Line Out)

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control
   * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

BIOS

1. 2 x 64 Mbit flash
2. Use of licensed AMI EFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

1. Support for atBIOS
2. Support for Q-Flash
3. Support for Xpress Install
4. Support for Xpress Recovery2
5. Support for EasyTune
   * Available functions in EasyTune may differ by motherboard model.
6. Support for eXtreme Hard Drive (X.H.D)
7. Support for Auto Green
8. Support for ON/OFF Charge
9. Support for Q-Share
10. Support for 3D Power
11. Support for EZ Setup
12. Support for LAN Optimizer (Intelligent optimization network management tool)

Operating System

Support for Microsoft® Windows 8/7/XP

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

Remark

 Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.

 Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Accessories

Please note only the following accessories come with the mobo:

• 1 x motherboard
• 2 x SATA cables
• 1 x I/O back pannel

Shipping & Handling

· Item will be shipped within 1-2 working days (business days) after full payment is received

· To USA,AUS,CA,UK,EU,Europe,will be shipped by via air mail service,need around 10-25 days.and other countries need around 15-35 days.In case you haven't recieved the packet, please check with your local post office first, because the packet will arrive there. Duo to different country, some local post office can't offer more detailed tracking status in time, it perhaps only show the shipment infor just left Hong Kong.

· If you want to get it fast(4-7 days),Please choose expedited shipping,It must add 18-30us shipping fee (according to your country).

· Please note, it maybe bring the customs tax, please understand these fees were not included in your payment, these fees will be collected by the delivery company, when sign for the packet. Please inquire your country customs office about the tax before perchasing.

Custom tax

• Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
• Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.

Return Policy

Dear friend, the warranty is 90 days, in case the mobo exist problem, and you want to refund or replace, plase read this before purchased.

• Refund: Refund can be accepted in 90 days after you signed the package. Please send back the item in original package with all the accessories in it. When you shipped back, please give us tracking number. Generally speaking,refund or replacement will be made upon receipt of the returned item.
• Replace: Replace can be accepted in 90 days after you signed the package. Please send back the item in original package, needn't return any accessories. When you shipped back, please give us the tracking number. We'll resend another mobo to you, as soon as we got the returned package.
• Both shipping cost: The cost of item shipping back is buyer's responsibility, the resend shipping cost is seller's.
• Wrong order: Dear friend, I think you have thought over before bought the item. But in case you got a wrong mobo, please first check out your order form, whether we sent a wrong mobo or your ordered a wrong mobo. Please note if you order wrong, we don't accept the refund or replace.

Customer Service

• we sincerely do business with you. If you satisfy with our service and products, please leave us positive response. Your recognition is our power to move forward, especially to a beginner like us. Your great comments will lead us to get more potential customers, and make us more confident to develop business and serve you better.
• But if you don't satisfy with the item, or you have any concern about our transaction, please do first contact us, we will response you in 24 hours, and do our best to help you solve any problems.
• All communications are handled through Email. We strive to answer all emails as quickly as possible

pc*one*world
