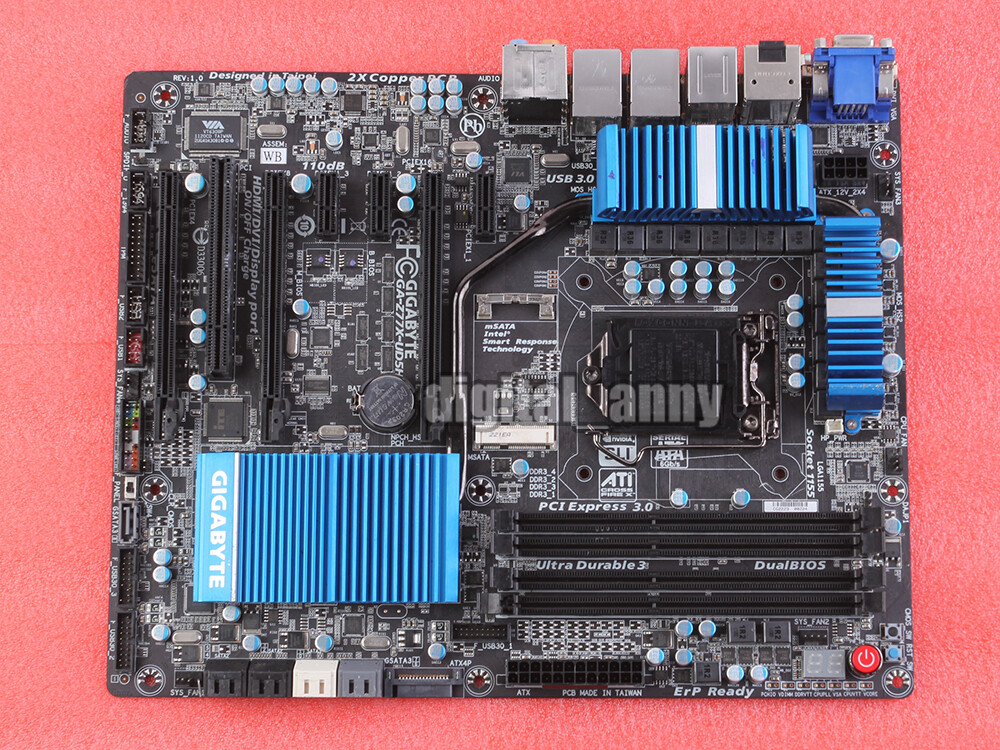

GIGABYTE GA-Z77X-UD5H Intel Z77 LGA 1155 DDR3 HDMI VGA gaming ATX Motherboard
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
GIGABYTE GA-Z77X-UD5H Intel Z77 LGA 1155 DDR3 HDMI VGA gaming ATX Motherboard
Price: CN $287.41

This is Anny's shop, welcome to purchase our items, we will provide excellent products and professional service to you.
We promised all the motherboards are carefully tested, 100% working, No DEFECT, NO FAULT, NO DOA, and shipped in a safe package.
If any problem please contact us, because of the time difference, we may reply you late for hours, please be patient to wait, we must reply you in 12 hours, and give you safisfied solution.
Warranty:
Our item warranty is 90 days, if any problem, we can replace, exchange or refund. But please make sure the item was from me, because our items have warranty mark.
Warm notes:
1. Please DO NOT use fake memory, because most of genuine band motherboards can't support that.
2. Please DO NOT use single-side memory, because some motherboards can't support that.
3. Some CPUs can't be supported by motherboard, please try to update the BIOS, please note that's not motherboard's defect.
4. Some "Can't boot" problem's caused by memory, please clean the memory's gold fingers and clean the motherboard's memory solts.
Official specification:

1.Support for Intel®Core™ i7 processors/Intel®Core™ i5 processors/ Intel®Core™ i3 in the LGA1155 package

2.L3 cache varies with CPU

1.4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.

2.Dual channel memory architecture

3.Support for DDR3 2800(OC)/1600/1333/1066 MHz memory modules

4.Support for non-ECC memory modules

5.Support for Extreme Memory Profile (XMP) memory modules

1.1 x D-Sub port

2.1 x DVI-D port, supporting a maximum resolution of 1920x1200
* The DVI-D port does not support D-Sub connection by adapter.

3.1 x HDMI port, supporting a maximum resolution of 1920x1200

4.1 x DisplayPort, supporting a maximum resolution of 2560x1600p

1.Realtek ALC898 codec

2.Support for X-Fi Xtreme Fidelity®and EAX®Advanced HD™ 5.0 technologies

3.High Definition Audio

4.2/4/5.1/7.1-channel

5.Support for S/PDIF Out

1.1 x Atheros GbE LAN chip (10/100/1000 Mbit) (LAN1)

2.1 x Intel GbE LAN chip (10/100/1000 Mbit) (LAN2)

1.1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

2.1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.

3.1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot is available only when an Intel 22nm (Ivy Bridge) CPU is installed.
* The PCIEX4 slot shares bandwidth with the PCIEX8 and PCIEX16 slots. When the PCIEX4 slot is populated, the PCIEX16 slot will operate at up to x8 mode and the PCIEX8 will operate at up to x4 mode.

4.3 x PCI Express x1 slots
(All PCI Express x1 slots conform to PCI Express 2.0 standard.)

5.1 x PCI slot

1.2 x SATA 6Gb/s connectors (SATA3 0/SATA3 1) supporting up to 2 SATA 6Gb/s devices

2.4 x SATA 3Gb/s connectors (SATA2 2~5) supporting up to 4 SATA 3Gb/s devices

3.1 x mSATA connector
* The SATA2 5 connector will become unavailable when the mSATA connector is installed with a solid state drive.

4.Support for RAID 0, RAID 1, RAID 5, and RAID 10
* When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.

1.3 x SATA 6Gb/s connectors (GSATA3 6/7/8) supporting up to 3 SATA 6Gb/s devices

2.1 x eSATA 6Gb/s connector on the back panel supporting up to 1 SATA 6Gb/s device

3.Support for RAID 0 and RAID 1

1.Up to 2 USB 3.0/2.0 ports (available through the internal USB headers)

2.Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

1.Up to 8 USB 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
* In Windows XP, the Intel USB 3.0 ports and VIA USB HUB can support up to USB 2.0 transfer speed.
* Due to a Windows 7 limitation, please connect your USB device(s) to the USB 2.0/1.1 port(s) before the Intel USB 3.0 controller driver is installed.

1.Up to 2 IEEE 1394a ports (1 port on the back panel, 1 port available through the internal IEEE 1394a header)

1.1 x 24-pin ATX main power connector

2.1 x 8-pin ATX 12V power connector

3.1 x PCIe power connector

4.5 x SATA 6Gb/s connectors

5.4 x SATA 3Gb/s connectors

6.1 x mSATA connector

7.1 x CPU fan header

8.4 x system fan headers

9.1 x front panel header

10.1 x front panel audio header

11.1 x S/PDIF Out header

12.3 x USB 3.0/2.0 headers

13.2 x USB 2.0/1.1 headers

14.1 x Clear CMOS jumper

15.1 x Trusted Platform Module (TPM) header

16.1 x power button

17.1 x reset button

18.1 x Clear CMOS button

19.1 x heatsink LED power connector

20.1 x BIOS Switch

21.Voltage Measurement Points

1.1 x D-Sub port

2.1 x DVI-D port

3.1 x optical S/PDIF Out connector

4.1 x HDMI port

5.1 x DisplayPort

6.1 x eSATA 6Gb/s connector

7.4 x USB 3.0/2.0 ports

8.2 x USB 2.0/1.0 ports

9.1 x IEEE 1394a port

10.2 x RJ-45 ports

11.6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In/Mic In, Line Out)

1.· CPU/System fan speed control
* Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install

1.2 x 64 Mbit flash

2.Use of licensed AMI EFI BIOS

3.Support for DualBIOS™

4.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1.Support for atBIOS

2.Support for Q-Flash

3.Support for Xpress Install

4.Support for Xpress Recovery2

5.Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.

6.Support for eXtreme Hard Drive (X.H.D)

7.Support for Auto Green

8.Support for ON/OFF Charge

9.Support for Q-Share

10.Support for 3D Power

11.Support for EZ Setup

12.Support for LAN Optimizer (Intelligent optimization network management tool)

2 x SATA cables
1 x I/O shield
Shipping & Handling:
1. Usually we need 1-2 days to process the items and prepare to ship it. According to your country, we will use the DHL, EMS, UPS, TNT, DPEX expedited shipping, the tracking number can be offered and tracked.
2. The shipping fees have included the local handing and packaging cost. We will send your item base on your address showed on order page. If your address is P.O.BOX, please give us physical address.
3. We can not mark item as "gift", because the custom office and international government regulations prohibit such behavior, thank you for your understanding.
Custom tax:
1. Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
2. Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.
Customer service:
Dear buyers, we sincerely do business with you. If you satisfy with our service and products, please leave us a good response. Your great comments will lead us to get more potential customers, and make us more confident to develop business and serve you better.
But if you don't satisfy with the item, or you have any concern about our transaction, please do first contact us, we will response you in 12 hours, and do our best to help you solve any problems.
Return policy:
Dear buyer, every item is very valuable to us, please know that we won't send bad products, but in case you need replace, exchange or refund, please read folloing policy.
1. Refund. Please send back the item in original package with all the accessories. When you shipped back, please give us tracking number. We'll refund all your money, as soon as got the returned package.
Please note if the package was loss, we only can refund you the shipping cost you paid. If the accessories was not complete, we need the compensation of the lost parts. If the mobo returned with wilful damage, we need the compensation.
2. Replace. Please send back the item in original package, needn't return any accessories. When you shipped back, please give us the tracking number. We'll resend another mobo to you, as soon as we got the returned package.
Please note if the package was loss, we don't resend you any more, then refund you the shipping cost you paid. If the mobo returned with wilful damage, we need the compensation.

Thank you for viewing
