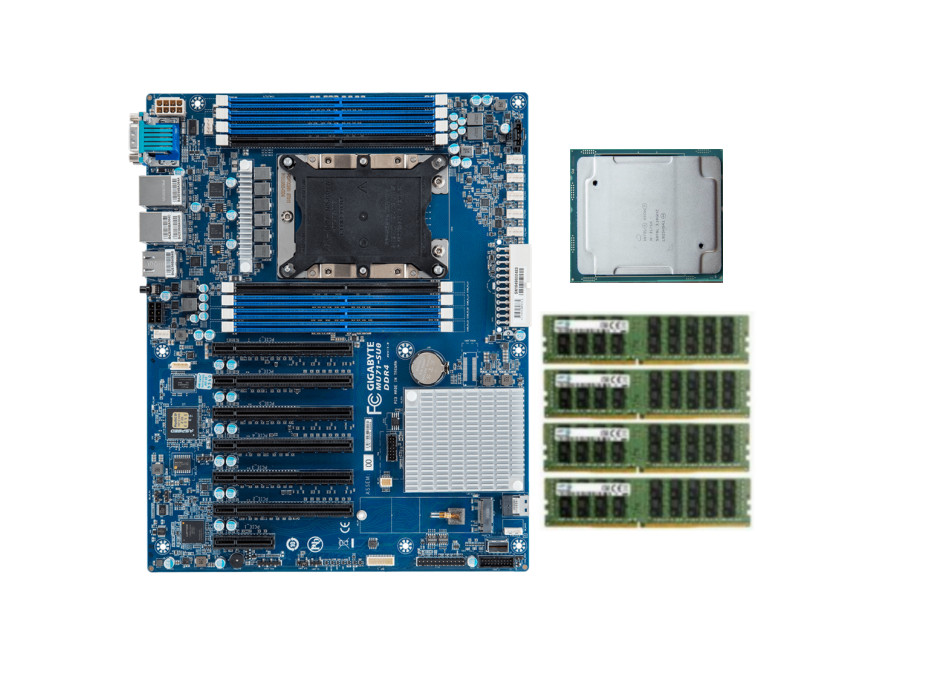

Package include

1XGIGABYTE MU71-SU0 Motherboard

1x Intel Xeon w-3175x28 cores 56 threads 3.10 GHz 3.8ghz 255w (USED but work perfect )

4X 32GB DDR4 ECC 2666MHZ RAM

Board Size

ATX

305W x 244D (mm)

Processor Supported

2nd Generation Intel®Xeon®Scalable Processors
Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor and Intel® Xeon® Bronze Processor
Intel®Xeon®W-3200 Processor Family
Single processor, TDP up to 205W

Socket

1 x LGA 3647
Socket P

Chipset Description

Intel®C621 Chipset

Memory Type

8 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Supports Intel®Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 2933/2666/2400/2133 MHz

Integrated Network

2 x 1Gb/s LAN ports (Intel®I210-AT)
1 x 10/100/1000 management LAN

Integrated Video Controller

Integrated in Aspeed®AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Integrated Audio Controller

N/A

Integrated SAS Controller

N/A

Integrated SATA Controller

2 x SlimSAS for 8 x SATA III 6Gb/s ports

Support RAID Function

Intel®SATA RAID 0/1/10/5

Expansion Slot

Slot_7: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot
Slot_6: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with Slot_7
Slot_5: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot
Slot_4: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with Slot_5
Slot_3: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot
Slot_2: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with Slot_3
Slot_1: 1 x PCIe x4 (Gen3 x4 bus) slot

1 x M.2 slot:
- M-key
- PCIe Gen3 x4 per slot
- Supports NGFF-2280 cards

On-Board Connector

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 6-pin ATX 12V power connector (for PCIe slot)
2 x SlimSAS connectors
1 x M.2 slot
1 x CPU fan header
6 x System fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x Buzzer

Rear I/O Connectors

4 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit:CTM010

OS Driver Supported

For Skylake processors:

Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019

Red Hat Enterprise Linux 6.9 (x64) or later
Red Hat Enterprise Linux 7.3 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 11 SP4 (x64) or later
SUSE Linux Enterprise Server 12 SP2 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later

Ubuntu 16.04.1 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later

Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later

For Cascade Lake processors:

Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019

Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later

Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 Update2 or later
VMware ESXi 6.7 Update1 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later

Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.5.0 or later
Citrix Hypervisor 8.0.0 or later

Server Management

GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

·JAVA Based Serial Over LAN

·HTML5 KVM

·Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)

·Sensor Reading History Data

·FRU Information

·SEL Log in Linear Storage / Circular Storage Policy

·Hardware Inventory

·Fan Profile

·System Firewall

·Power Consumption

·Power Control

·LDAP / AD / RADIUS Support

·Backup & Restore Configuration

·Remote BIOS/BMC/CPLD Update

·Event Log Filter

·User Management

·Media Redirection Settings

·PAM Order Settings

·SSL Settings

·SMTP Settings

PSU Connector

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 6-pin ATX 12V power connector (for PCIe slot)

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Bundle

1 x MU71-SU0
1 x I/O shield
1 x Quick start guide
2 x SlimSAS for 8 x SATAIII 6Gb/s cables
1 x Non-Fabric CPU carrier
Single Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton

Bulk Packaging Content

10 x MU71-SU0
10 x I/O shields
10 x Non-Fabric CPU carriers
Carton dimensions: 600 x 473 x 495 mm

Ordering Information

Retail: 9MU71SU0MR-00
