Item description

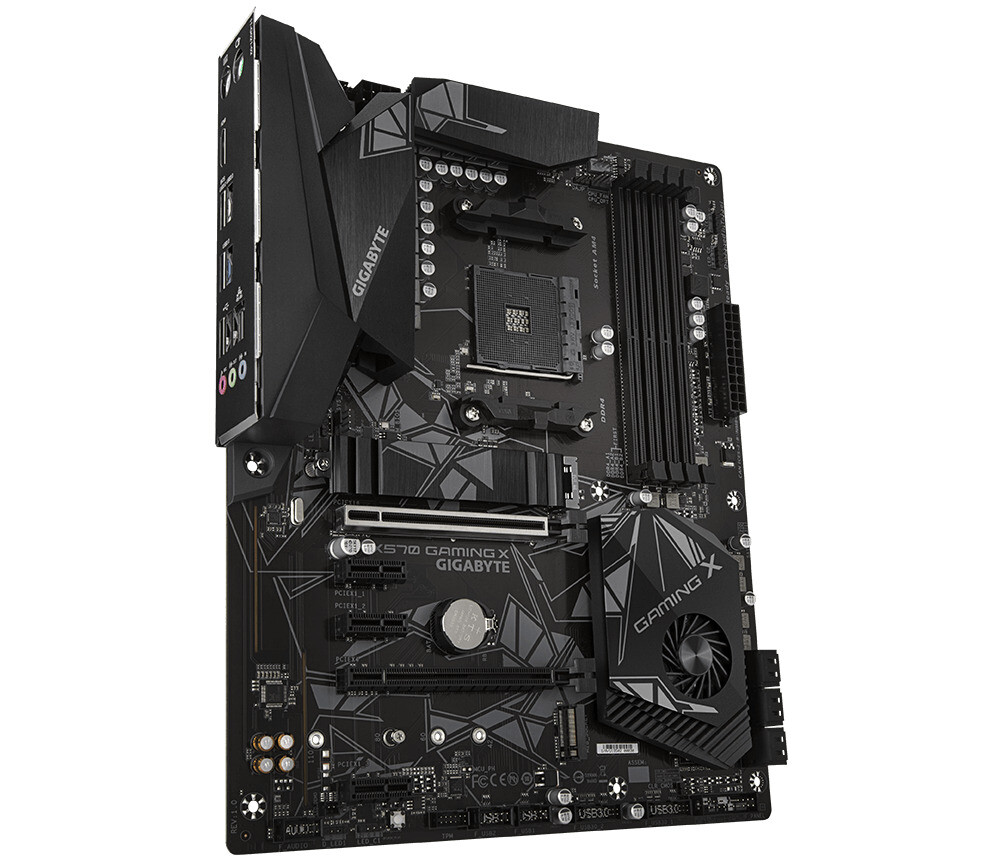

GIGABYTE X570 GAMING X Motherboard AMD X570 SocketAM4 DDR4 M.2 ATX USB 3.2 Ryzen
CPU
AMD AM4 socket, supports: AMD Ryzen™ processors / AMD Ryzen processors with integrated Radeon X570
RAM
AMD Ryzen™ 5000 Series CPUs:
Support DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C. ) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
3rd Generation AMD Ryzen™ Processors:
Support DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/ 2933 / 2667 / 2400 / 2133 MHz
1st Generation AMD Ryzen™ Processors/1st Generation AMD Ryzen™ with Radeon™ Vega Graphics Processors/AMD Ryzen™ with Radeon™ Vega Graphics Processors:
Support DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz
4xDDR4 DIMM slots supporting up to 128 GB (single slot supports 32 GB capacity)
Supports dual-channel memory technology
Support ECC Un-buffered DIMM 1Rx8/2Rx8 memory
Support non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory
Supports Extreme Memory Profile (XMP) memory
Display function
Based on a processor with display capability:
1xHDMI port, can support resolution up to 4096x2160@60 Hz
* Support HDMI 2.0 version, HDCP 2.2 and HDR.
Supports * Shared Display Memory * 16 GB
*This feature is only supported on the first generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors.
Sound effect
Integrated Realtek® ALC887 chip
Support High Definition Audio
Support 2/4/5.1 channel
The internet
Integrated Realtek® GbE network chip (10/100/1000 Mbit)
Expansion slot
Based on CPU (PCIEX16/PCIEX8):
3rd Generation AMD Ryzen™ Processors:
1xPCI-E x16 slot supports PCI-E 4.0 and x16 operating specifications
*Gen AMD Ryzen™ Processors:
1xPCI-E x16 slot supports PCI-E 3.0 and x16 operating specifications
* To maximize the performance of the graphics card, be sure to install the *PCIEX16 slot when installing a graphics card.
1st generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
1xPCI-E x16 slot supports PCI-E 3.0 and x8 operating specifications
Chipset based (PCIEX4/PCIEX1):
1xPCI-E x16 slot supports PCI-E 4.0*/3.0 and x4 running specification (PCIEX4)
* This feature is only supported on 3rd Gen AMD Ryzen™ processors.
3xPCI-E x1 slots support PCI-E 4.0*3.0
* This feature is only supported on 3rd Gen AMD Ryzen™ processors.
Multiple Display Technology
Supports AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ Basics
* This feature is only supported on 3rd Gen AMD Ryzen™ processors/1st Gen AMD Ryzen™ processors.
Storage device interface
Based on CPU (M2A_SOCKET):
3rd Generation AMD Ryzen™ Processors:
One M.2 slot supports Socket 3, M key, type 2242/2260/2280/22110 SATA and PCI-E 4.0 x4/x2 SSD
1st Generation AMD Ryzen™ Processors/1st Generation AMD Ryzen™ with Radeon™ Vega Graphics Processors/AMD Ryzen™ with Radeon™ Vega Graphics Processors:
One M.2 slot supports Socket 3, M key, type 2242/2260/2280/22110 SATA and PCI-E 3.0 x4/x2 SSD
Chipset based (M2B_SOCKET):
One M.2 slot supports Socket 3, M key, type 2242/2260/2280/22110 SATA and PCI-E 4.0*/3.0 x4/x2 SSD
* This feature is only supported on 3rd Gen AMD Ryzen™ processors.
6xSATA 3.0 ports
Supports RAID 0, RAID 1 and RAID 10 based:
4xUSB 3.2 Gen 1 ports on rear window IO
Based on chipset:
The 4 USB 3.2 Gen 1 ports need to be connected from the USB ports on the motherboard via a cable
6xUSB 2.0/1.1 ports (2 in the rear window IO, 4 need to be connected from the USB port in the motherboard via a cable)
Internal socket
1x24PIN motherboard power socket
1x8PIN CPU power socket
1xCPU fan header
1xCPU water cooling fan socket
2xsystem fan sockets
1xcooling fan light strip/RGB LED light strip power socket
2xprogrammable LED lights with power sockets
2xRGB LED lights with power sockets
2xM.2 SSD slots
6xSATA 3.0 ports
1xmotherboard jumper socket
1xfront audio jack
2xUSB 3.2 Gen 1 sockets
2xUSB 2.0/1.1 sockets
1xsecurity encryption module (TPM) socket (2x6 pin, only used with GC-TPM2.0_S)
1xclear CMOS data pin
1xQ-Flash Plus button
Rear panel unit connection socket
1xPS/2 keyboard interface
1xPS/2 mouse interface
1xHDMI interface
4xUSB 3.2 Gen 1 ports
2xUSB 2.0/1.1 ports
1xRJ-45 network cable interface
3xaudio interfaces
I/O Controller
Integrated iTE® I/O controller chip
BIOS
1 x 128 Mbit flash
Use an authorized AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating system
Support Windows 10 64-bit
Form Factor
ATX ; 30.5cmx 24.4cm
