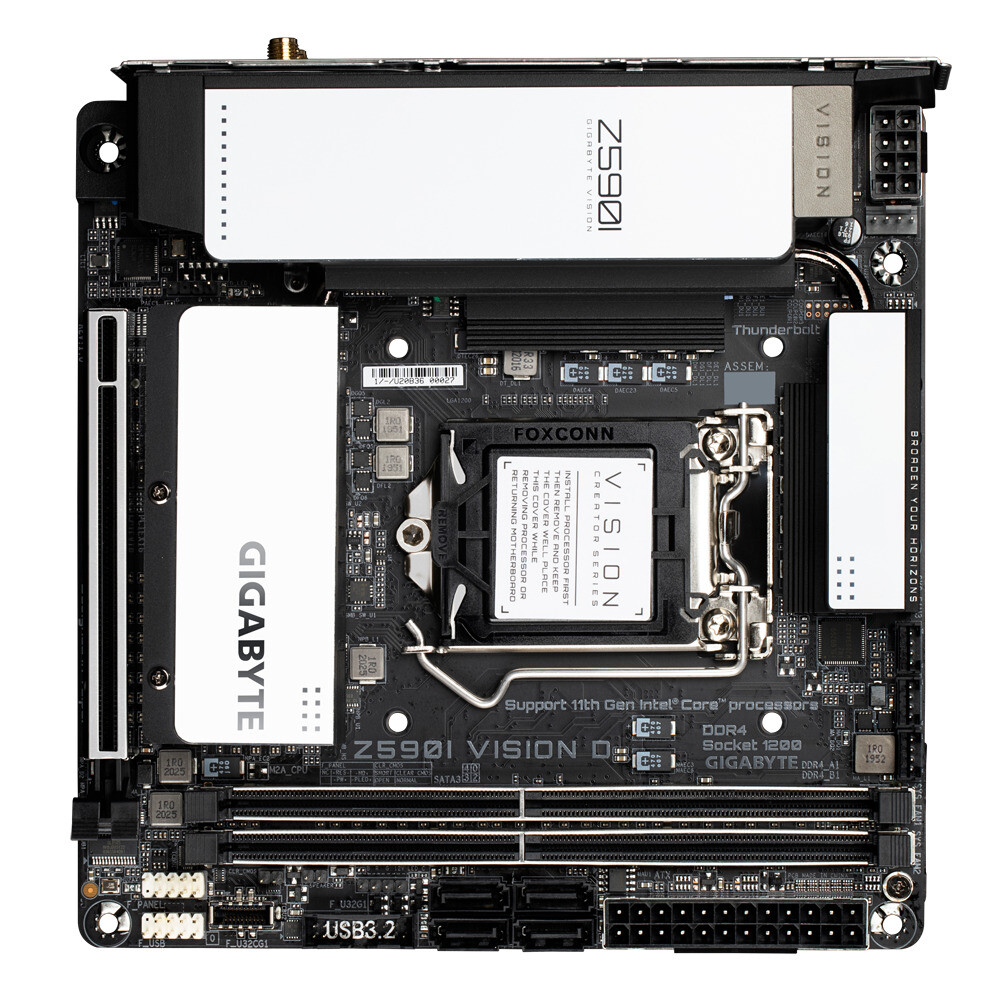

GIGABYTE Z590I VISION D Motherboard Intel Z590 LGA1200 DDR4 Mini-ITX M.2 Core DP

CPU

LGA1200 socket, supports:

11th Generation Intel® Core™ i9 Processor / Intel® Core™ i7 Processor / Intel® Core™ i5 Processor

10th Generation Intel® Core™ i9 processor / Intel® Core™ i7 processor / Intel® Core™ i5 processor / Intel® Core™ i3 processor / Intel® Pentium® processor / Intel® Celeron® processor*

**With 4 MB Intel® Smart Cache, i.e. Intel® Celeron® G5xx5 series processors.

L3 cache depends on Z590 Express Chipset

RAM

11th Generation Intel® Core™ i9/i7/i5 Processors:

Supports 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz

10th Generation Intel® Core™ i9/i7 Processors:

Supports DDR4 2933/2666/2400/2133 MHz

10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® Processors:

Supports DDR4 2666/2400/2133 MHz

2 x DDR4 DIMM slots supporting up to 64 GB (single slot supports 32 GB capacity)

Supports dual-channel memory technology

Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory (operating in non-ECC mode)

Support non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory

Supports Extreme Memory Profile (XMP) memory

Display function

Display based processor + Intel® Thunderbolt™ 4 controller:

2 x Intel® Thunderbolt™ 4 ports (USB Type-C® port), support DP and Thunderbolt™ technology display output, can support up to 5120 x 2880@60 Hz with 24 bpp resolution (single display output)

* Due to the I/O resource limitation of PC architecture, the number of Thunderbolt™ devices that can be connected in series depends on the PCI-E devices installed on the motherboard.

* Support DP 1.4 version and HDCP 2.3.

Sound effect

Integrated Realtek® ALC4080 chip

Support for DTS:X® Ultra

Support High Definition Audio

Support 2 channels

The internet

Integrated Intel® 2.5GbE network chip (2.5 Gbit/1 Gbit/100 Mbit)

Wireless communication module

Intel® Wi-Fi 6 AX200

WIFI a, b, g, n, ac, ax, support 2.4/5 GHz wireless dual-band

BLUETOOTH 5.1

Support 11ax 160MHz wireless communication standard, can support up to 2.4 Gbps

* Actual transfer speed will vary depending on usage environment and equipment.

Expansion slot

1xPCI-E x16 slot, supports x16 running specification

PCI-E x16 slot supports PCI-E 4.0)*

* Only 11th generation processors support this feature.

Storage device interface

CPU based:

1 x M.2 slot (support Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD) (M2A_CPU)*

* Only 11th generation processors support this feature.

Based on chipset:

1xM.2 slot on the back of the motherboard (supports Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD) (M2P_SB)

4xSATA 3.0 ports

Supports RAID 0, RAID 1, RAID 5 and RAID 10 functions

Intel® Optane™ Memory Ready

USB

Based on chipset:

1 x USB Type-C® port, supports USB 3.2 Gen 1, needs to be connected from the USB socket on the motherboard via a cable

2xUSB 3.2 Gen 2 Type-A ports (red) on rear window IO

6xUSB 3.2 Gen 1 ports (4 in the rear window IO, 2 need to be connected from the USB socket in the motherboard via a cable)

Based on Chipset + Intel® Thunderbolt™ 4 Controller:

2xUSB Type-C® ports on rear window IO, support USB 3.2 Gen 2

Based on Chipset + USB 2.0 Hub:

2xUSB 2.0/1.1 ports, which need to be connected from the USB socket in the motherboard via a cable

Internal socket

1x24 PIN motherboard power socket

1 x 8 PIN CPU power socket

1xCPU fan header

3xsystem fan sockets

1xProgrammable LED Strip Power Outlet

1xRGB LED strip power socket

4xSATA 3.0 ports

2xM.2 SSD slots

1xmotherboard jumper socket

1xspeaker socket

1 x USB Type-C® socket, supports USB 3.2 Gen 1

1xUSB 3.2 Gen 1 socket

1xUSB 2.0/1.1 socket

1xclear CMOS data pin

1xcomputer case open detection pin

Rear panel unit connection socket

1xDP input interface

2xThunderbolt™ 4 sockets (USB Type-C® port, supports USB 3.2 Gen 2)

2xUSB 3.2 Gen 2 Type-A ports (red)

4xUSB 3.2 Gen 1 ports

1xQ-Flash Plus button

1xRJ-45 network cable interface

2xSMA antenna ports (2T2R)

2xaudio interfaces

I/O Controller

Integrated iTE® I/O controller chip

BIOS

1 x 256 Mbit flash

Use an authorized AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating system

Support Windows 10 64-bit

Form Factor

Mini-ITX ; 17.0cm x 17.0cm

• 1 x motherboard.

• 2 x SATA II cables.

• 1 x I/O shield.
