Why choose GMKtec EVO-T1 Mini PC?✅ 【EVOLUTION CORE ULTRA 9 285H MINI PC 】 The GMKtec EVO-T1 represents the next generation of AI-enabled mini PCs, featuring the Intel Core Ultra 9 285H processor. With 16 cores (6 Performance-cores, 8 Efficient-cores, 2 Low Power Efficient-cores) and 16 threads, it reaches a turbo frequency of 5.4 GHz, delivering exceptional performance per watt in its class.✅ 【AI NPU】Equipped with an Intel AI Boost NPU capable of 13 TOPS (INT8), specifically designed to accelerate artificial intelligence inference and workloads.✅ 【INTEL ARC 140T GRAPHICS】Integrates Intel Arc Graphics with 8 Xe-cores, supporting DirectX 12, OpenGL 4.5, and OpenCL 3.0. Enables smooth gaming and content creation, with hardware-accelerated AV1 encode/decode and Quick Sync Video.✅ 【32

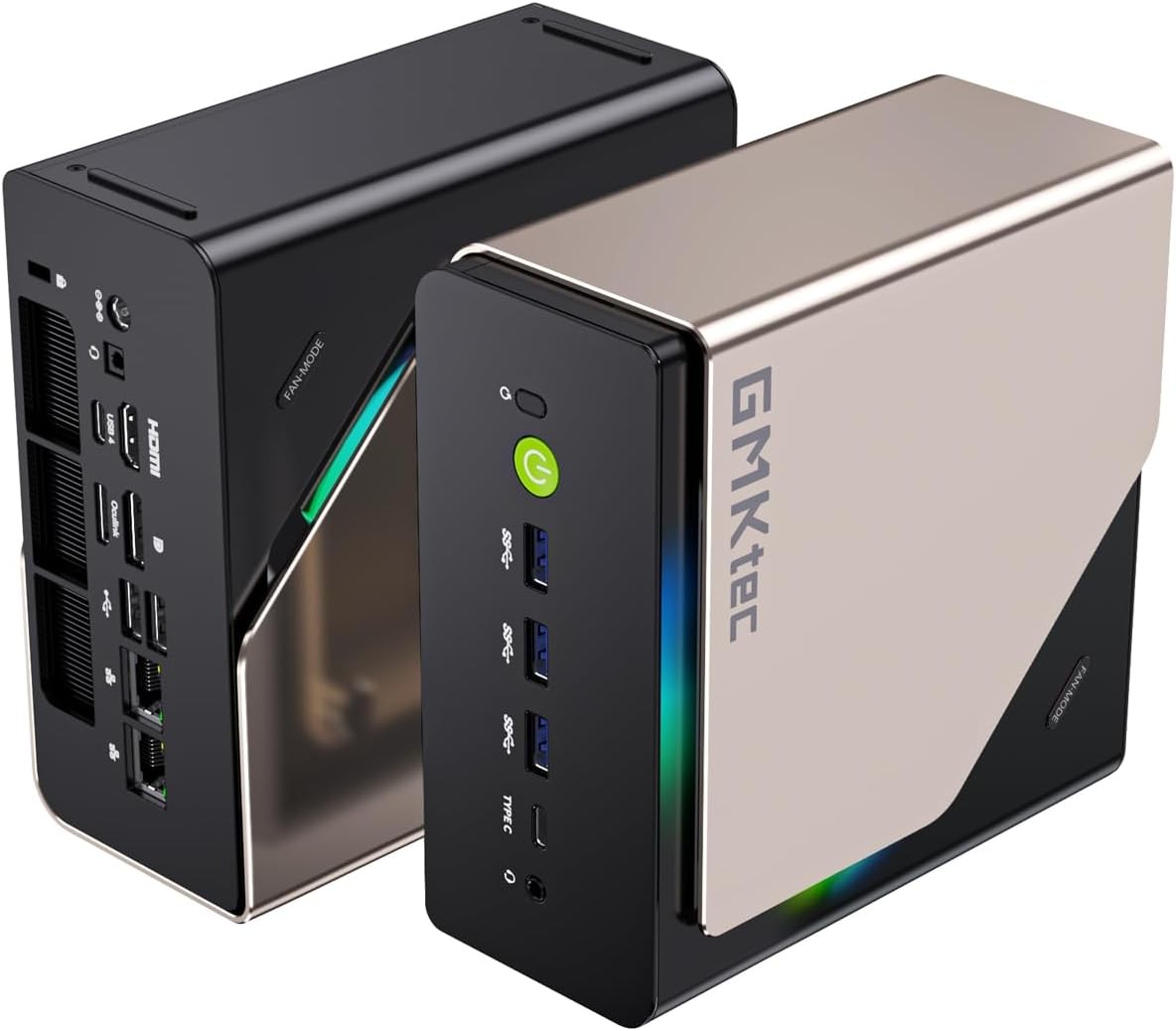

Product Description GMKtec EVO-T1 AI Mini PC Barebone Intel Ultra 9 285H NO RAM NO SSD GMKtec EVO-T1 Mini PC Specification CPU Intel Core Ultra 9 285H (16C/16T, Up to 5.4GHz, L3 24MB Cache, TDP45~80W) Other Functions 13 Mode RGB Fan Lighting Button, Wake ON LAN, Auto Power ON, Performance Settings, Oculink Port on the Rear Interface, 3.5mm audio port on the rear interface GPU Intel Arc 140T (Up to 2.35GHz, GPU peak TOPS (Int8): 77 TOPS) Interface 2* 3.5mm CTIA Port; 1*Power Mode Button;; 1*Fan Light Mode Button; 2* USB 4.0 Port; 1* HDMI 2.1 Port; 1* DP1.4 Port; 3* USB 3.2 Gen2 (10Gbps) Port; 2*USB2.0; 2* RJ45 (2.5G LAN) Port; AI NPU Intel AI Boost (NPU peak TOPS (Int8): 13 TOPS) Power Adapter DC IN: 19V-6.32A 120W Certification | Input: 100-240V AC, 50/60Hz , Output: 19V/7.8A RAM No RAM Operating Environment -10°C--45°C，30%--85% Humidity Storage No SSD Storage Environment -20°C--60°C，10%--90% Humidity Storage Expansion Triple M.2 SSD 2280 PCIE4.0*4 Slots. MAX 8TB*3=24TB Cooling Method Dual Heat Pipe Cooling Design CPU Large Fans + DDR/SSD Cooling Fan with Lighting Wireless LAN Dual 2.5G LAN (RJ45) | WIFI 6 BT5.2 Package Contents 1 x GMKtec Nucbox EVO-T1 Intel Core Ultra 9 285H Mini PC, 1 x Power Adapter, 1 x HDMI Cable, 1 x User Manual, 1 x VESA Mount with Screws Video output Quad Display Output, HDMI 2.1 (8K@60HZ), DP1.4 (8K@120HZ), Type-C (PD/DP/Data)*1, USB4.0*1
Why choose GMKtecEVO-T1Mini PC?
✅【EVOLUTION CORE ULTRA 9 285H MINI PC】The GMKtec EVO-T1 represents the next generation of AI-enabled mini PCs, featuring the Intel Core Ultra 9 285H processor. With 16 cores (6 Performance-cores, 8 Efficient-cores, 2 Low Power Efficient-cores) and 16 threads, it reaches a turbo frequency of 5.4 GHz, delivering exceptional performance per watt in its class.
✅【AI NPU】Equipped with an Intel AI Boost NPU capable of 13 TOPS (INT8), specifically designed to accelerate artificial intelligence inference and workloads.
✅ 【INTEL ARC 140T GRAPHICS】Integrates Intel Arc Graphics with 8 Xe-cores, supporting DirectX 12, OpenGL 4.5, and OpenCL 3.0. Enables smooth gaming and content creation, with hardware-accelerated AV1 encode/decode and Quick Sync Video.
✅ 【Extensive Storage Expansion Capability】
Designed for flexible customization, this Mini PC features three M.2 2280 SSD slots, supporting high-capacity storage expansion with up to 4TB per slot (maximum theoretical capacity up to 12TB). The multi-drive design provides versatile storage options for users who need expanded capacity for large files, professional applications, media libraries, and demanding workloads.
✅ 【QUAD 8K DISPLAY SUPPORT】Supports simultaneous output to four displays via HDMI 2.1 (8K@60Hz), DisplayPort 1.4 (4K@60Hz), and USB Type-C (with DP 1.4, PD 3.0, and data transfer). Ideal for high-resolution multitasking and immersive visuals.
✅【OCULINK PORT】Provides a PCIe 4.0 x4 OCuLink interface for high-bandwidth external device connections, such as eGPUs, offering superior throughput and lower latency compared to standard Thunderbolt solutions.
✅【2.5GbE + Wi-Fi 6 + BT 5.2】Includes a 2.5 Gigabit Ethernet port for networking applications including firewalls, NAS, and routing. Features Wi-Fi 6 and Bluetooth 5.2 for stable wireless connectivity with peripherals and displays.
✅【DUAL COOLING SYSTEM WITH RGB】Utilizes a vapor chamber CPU cooler and a dedicated SSD/RAM cooling fan, operating at noise levels as low as 35 dB. Enhanced with dual heat pipes and 360° ventilation. Includes 13 customizable RGB lighting modes.
✅【GMKTEC After-Sales Service 】GMKtec mini PCs come with a1-year limited warranty. From your date of purchase, you enjoy:Worry-Free Experience:A professional after-sales team is available to support you at any time.Peace of Mind:Allows you to use your mini PC with complete confidence. Shipping
We will process orders on the day they are received and update the tracking number within 2 business days. Items are dispatched from our UK inventory and delivered via expedited shipping services for fast delivery.
Returns
1. Within 30 days of payment, In the event of non-human-induced malfunctions of the item, a full refund or free replacement with a brand-new device will be provided.
2. If you have any questions after receiving your item, please contact us via Messages.
Payment & Taxes
We accept all major credit cards. All transactions are processed through a secure payment gateway. All listed prices are inclusive of applicable taxes. Please note that tax rates may vary by country, and the final tax amount will be determined based on your shipping destination.
Warranty
GMKtec provides a 1-year warranty for each mini PC. From the date of your purchase, you can enjoy a worry free experience.
