Professional large-format digitizer — the real thing, not a hobby drawing board. The big 44x60 active surface lets you lay a full-size drawing, blueprint, pattern, or part flat on the board and trace it point-by-point into your CAD program, then export a DXF file for CNC plasma, laser, router, or waterjet cutting. If you cut metal or material from shop drawings, this is how paper patterns and hand drawings become machine-ready DXF on your PC. High resolution (up to 12,700 lines per inch) and professional accuracy make it precise enough for production work.
RE-TESTED WORKING AUGUST 2026 — WATCH THE VIDEO ON THIS LISTING: I set up the complete system this month and filmed it. The board powers up, connects to the PC by USB, and in Logic Trace I traced a machine part with the stylus and saved it straight to a DXF file. Accuracy check: the software measured the part at 11.84 inches — my tape measure read 11-7/8 inches on the actual piece. Dead on. The video plays on this listing in the app.
SOFTWARE: My Logic Trace license is not transferable, so software is not included — BUT the software maker, The Logic Group, has agreed to sell whoever buys this board the latest version of Logic Trace CNC/DXF at half price, about $750 instead of around $1,500 (ask for John Walsh when you contact them).
These Big Boards are GETTING HARD TO FIND: These boards are no longer manufactured, and the last turnkey digitizer dealer stopped selling in May 2026. A tested, working 44x60 does not come along often.
ON THE BOARD: The overlay strip reads "DrawingBoard VI" with "GTCO CalComp PERIPHERALS" at the right side; a second sticker on the opposite corner reads "The Logic Group - Logic Tracer." The Configuration / Macros menu strip runs along the bottom edge (Config Exit, Bank A/B/C, buttons 1-18, Save and Restore).
CONDITION: Excellent, near new. The white drawing surface is clean with only a few very minor scratches and light surface marks visible in the close-up photos. Some light dust/scuffing along the front edge and normal light wear on the gray aluminum frame and corner guards. Everything shown in the photos is Approximately 50 in x 67 in overall as measured by the seller. Weight about 50 lb. This is a large, heavy unit — plan for freight or local pickup.

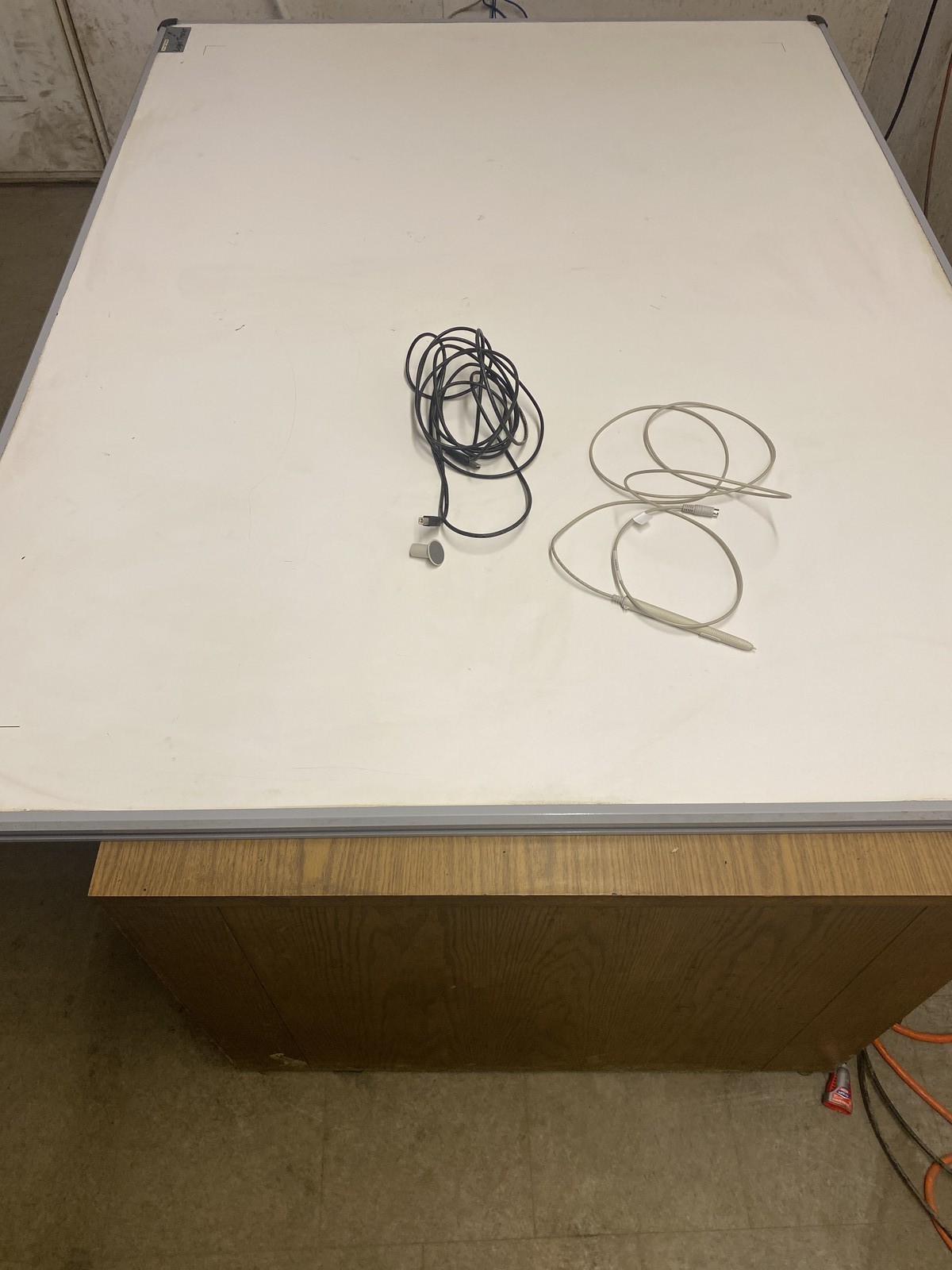

INCLUDED: The digitizer board, the stylus pen shown in the photos, and both cables shown (black cable and gray cable). No power supply needed — the board runs off the USB connection, which is how it was tested. The rear connector panel has a power switch, 9-pin serial port, DC power jack, USB port, round mini-DIN port and an RJ-style jack. No software CD is included.
SHIPPING — LOCAL PICKUP OR BUYER-ARRANGED FREIGHT ONLY: This unit is oversized and cannot ship by USPS, UPS, or FedEx. Local pickup is welcome. For distant buyers, I will load it onto a truck or freight carrier that YOU arrange and pay for — FOB origin (buyer covers all freight from my location in Prestonsburg, KY 41653). Message me for exact crate/pallet size and weight so you can get a freight quote before you buy. Happy to answer any questions before you buy.
