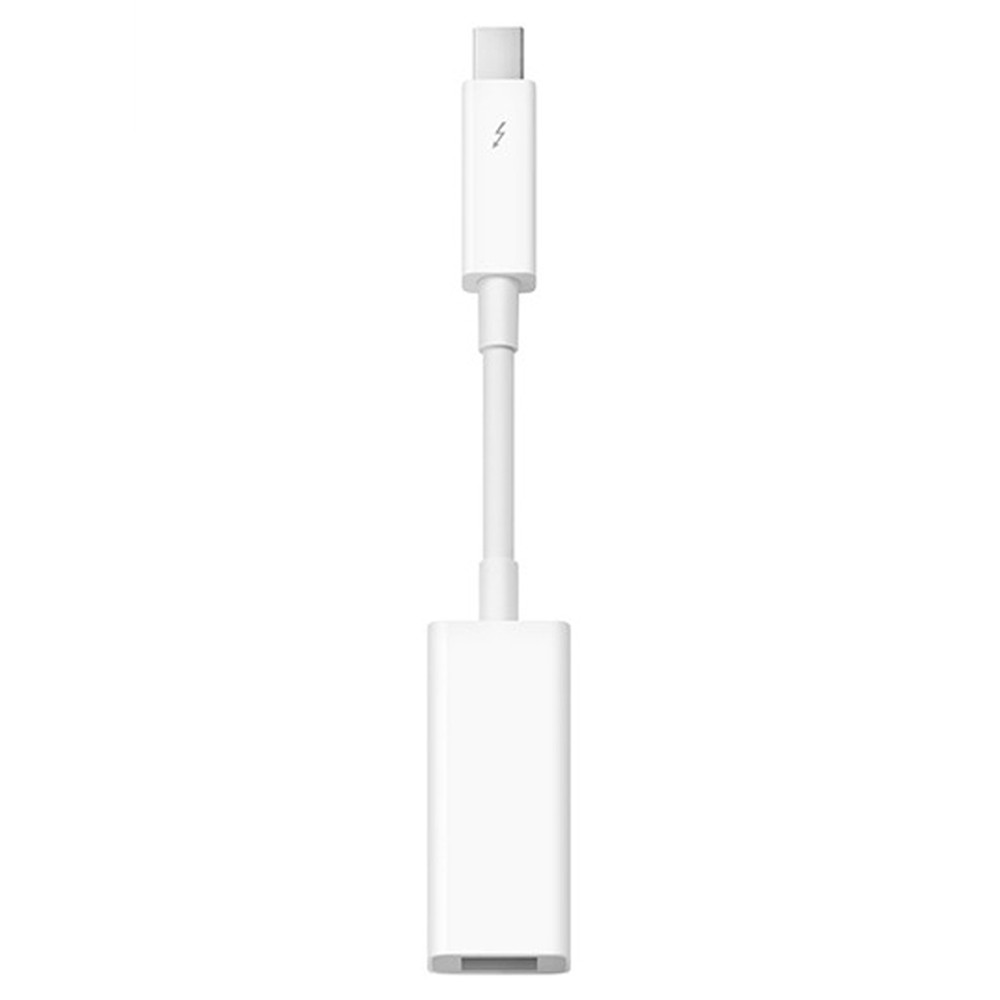

⚡ Apple Thunderbolt 2 to FireWire 800 Adapter (Model A1463)

Bi-Directional Conversion – 800Mbps, Bus Power Support

✅ Compatible Products

• Mac Computers with Thunderbolt / Thunderbolt 2 Ports

• FireWire 800 (IEEE 1394b) Devices

• FireWire 400 Devices (Requires additional FW800-to-FW400 adapter)

Note: This adapter is not compatible with Thunderbolt 3/4 (USB-C) ports without a separate USB-C to Thunderbolt 2 adapter.

📦 Package Contents

• 1 × Apple Thunderbolt 2 to FireWire 800 Adapter (Model A1463)

Note: Additional adapters (FW400, USB-C) are not included.

🔍 Product Overview

The Apple Thunderbolt to FireWire Adapter is the official bridge between modern Thunderbolt-equipped Macs and legacy FireWire peripherals.

This compact dongle converts the high-speed Thunderbolt/Thunderbolt 2 port into a FireWire 800 (IEEE 1394b) port, allowing you to connect older devices such as audio interfaces, external hard drives, and camcorders without replacing your entire workflow. It supports bus power delivery up to 7W and offers plug-and-play functionality on macOS.

✨ Key Features ⚡ High-Speed Legacy Connectivity

• Provides a FireWire 800 (IEEE 1394b) port with speeds up to 800 Mbps.

• Bi-directional conversion allows flexible device connections.

🔌 Bus Power Support

• Delivers up to 7W of power to connected FireWire devices, sufficient for many bus-powered hard drives and audio gear.

🍏 Official Apple Design

• Authentic Apple part (Model A1463).

• Guaranteed compatibility with macOS system frameworks.

🔄 Seamless Workflow Integration

• Connects to Thunderbolt or Thunderbolt 2 ports directly.

• Enables connection to FireWire 400 devices via a secondary passive adapter.

⚙️ Technical Specifications
💡 Usage Tips

• Thunderbolt 3/4 Macs: If your Mac only has USB-C ports, you must use a USB-C to Thunderbolt 2 Adapter before plugging in this FireWire adapter.

• FireWire 400 Devices: To connect older FW400 gear, attach a FireWire 800-to-400 adapter to the female port on this adapter.

• Power Check: While it supports 7W, some high-power FW400 devices may still require their own external power supply.

• Chain Connection: FireWire supports daisy-chaining; you can connect multiple FW devices to this single adapter port.

⚠️ Important Notes

• Directional Limitation: This adapter cannot connect modern USB-C peripherals to old Macs. It is designed to connect old FireWire devices to new Macs.

• Driver Limitation: Modern macOS versions (especially Apple Silicon) may have limited or no support for classic FireWire audio drivers.
