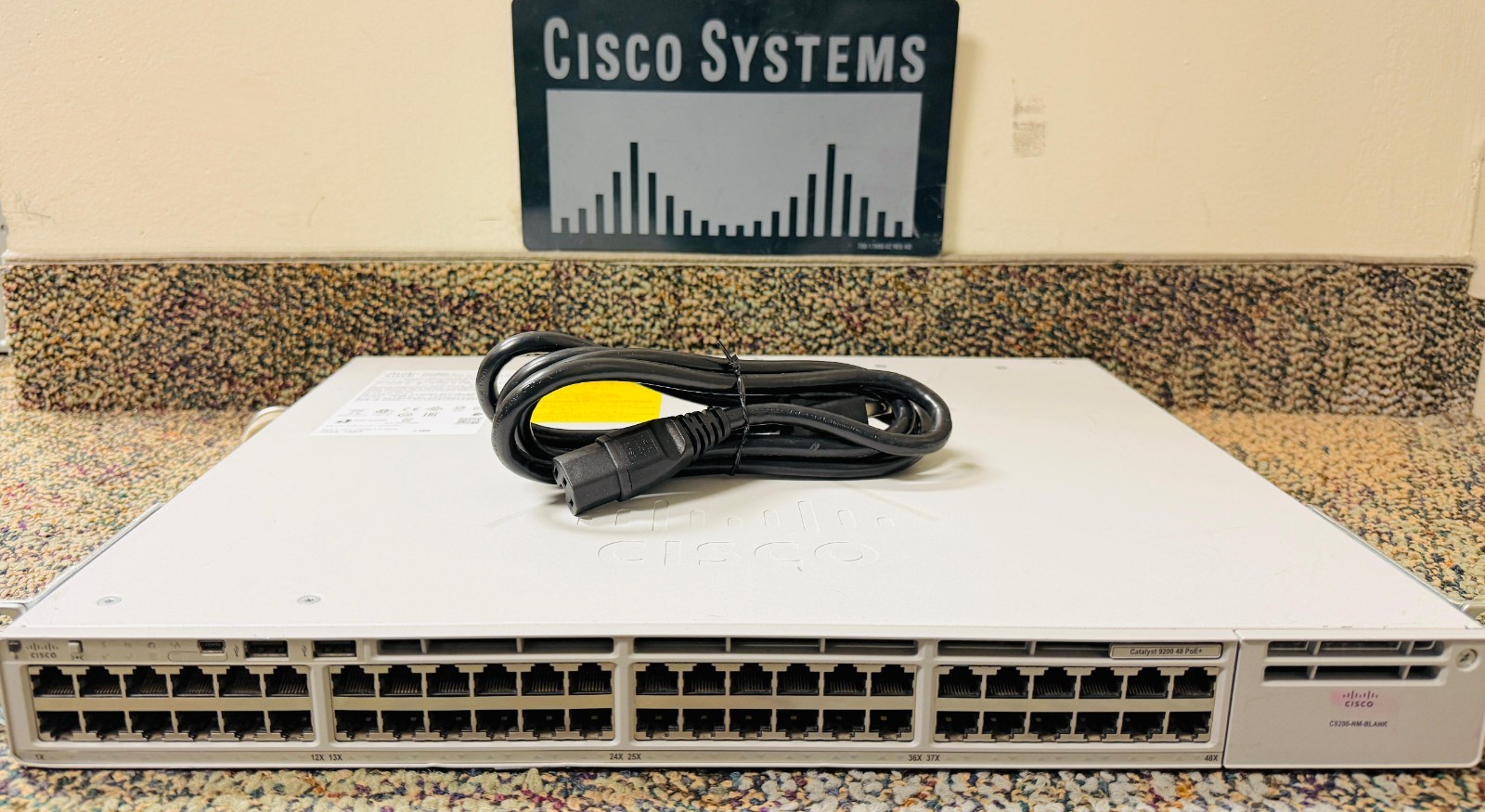

Genuine Cisco C9200-48P-A Cisco POE+ Ethernet Switch Fully
TESTED.. See below for the results
All PORTS Functional..
Fast Shipping.. Delivery 2-7 Days
No import or other custom fees for US Customers
Power Cord and Rack EARS included
Used item.. May contain some scratches or marks
No other accessories included..TEST RESULTS:
Switch#sh invNAME: "c92xx Stack", DESCR: "c92xx Stack"PID: C9200-48P , VID: V01 , SN: FOC2528XXXX
NAME: "Switch 1", DESCR: "C9200-48P"PID: C9200-48P , VID: V01 , SN: FOC2528XXXX
NAME: "StackAdapter1/1", DESCR: "StackAdapter1/1"PID: C9200-STACK , VID: V02 , SN: JAE244XXXX
NAME: "StackAdapter1/2", DESCR: "StackAdapter1/2"PID: C9200-STACK , VID: V02 , SN: JAE244XXXXX
NAME: "Switch 1 - Power Supply A", DESCR: "Switch 1 - Power Supply A"PID: PWR-C6-1KWAC , VID: V01 , SN: DCI2507XXXXX
Switch#sh verCisco IOS XE Software, Version 17.06.05Cisco IOS Software [Bengaluru], Catalyst L3 Switch Software (CAT9K_LITE_IOSXE), Version 17.6.5, RELEASE SOFTWARE (fc2)System image file is Package License Technology-packageCurrent Type Next Smart License network-advantagedna-advantage Subscription Smart License dna-advantageSmart Licensing Status: Registration Not Applicable/Not Applicable
cisco C9200-48P (ARM64) processor with 654703K/3071K bytes of memory.Processor board ID FOC252XXXXX1 Virtual Ethernet interface52 Gigabit Ethernet interfaces4 Ten Gigabit Ethernet interfaces2048K bytes of non-volatile configuration memory.4028728K bytes of physical memory.819200K bytes of Crash Files at crashinfo:.1941504K bytes of Flash at flash:.
Base Ethernet MAC Address : d4:77:98:bd:c0:00Motherboard Assembly Number : 73-18XXXXXMotherboard Serial Number : FOC25XXXXXXModel Revision Number : H0Motherboard Revision Number : D0Model Number : C9200-48PSystem Serial Number : FOC25XXXXXXCLEI Code Number : INM9V0XXXXXX
Switch Ports Model SW Version SW Image Mode------ ----- ----- ---------- ---------- ----* 1 56 C9200-48P 17.06.05 CAT9K_LITE_IOSXE BUNDLEConfiguration register is 0x102
Switch#sh postStored system POST messages:
Switch 1---------
POST: CRYPTO Tests : BeginPOST: CRYPTO Tests : End, Status Passed
POST: PORT Loopback: loopback Test : BeginPOST: PORT Loopback: loopback Test : End, Status Passed
POST: SIF Tests : BeginPOST: SIF Tests : End, Status Passed
POST: Thermal, Temperature Tests : BeginPOST: Thermal, Temperature Tests End, Status Passed
POST: Inline Power Controller Tests : BeginPOST: Inline Power Controller Tests : End, Status PassedSwitch#Switch#sh env allSensor List: Environmental MonitoringSensor Location State Reading Range(min-max)PS1 Vout 1 GOOD 56000 mV naPS1 Curout 1 GOOD 6000 mA naPS1 Powout 1 GOOD 336000 mW naPS1 Hotspot 1 GOOD 39 Celsius naPS1 Fan Status 1 GOOD 65280 rpm naPS1 Status word 1 GOOD 0 naPS2 Vout 1 NOT PRESENT 0 mV naPS2 CURout 1 NOT PRESENT 0 mA naPS2 Powout 1 NOT PRESENT 0 mW naPS2 Hotspot 1 NOT PRESENT 0 Celsius naPS2 Fan Status 1 NOT PRESENT 0 rpm naPS2 Status word 1 NOT PRESENT 0 naSYSTEM INLET 1 GREEN 31 Celsius 0 - 56SYSTEM OUTLET 1 GREEN 35 Celsius 0 - 125SYSTEM HOTSPOT 1 GREEN 46 Celsius 0 - 125
Switch FAN Speed State Airflow 1 1 5460 OK Front to Back 1 2 5475 OK Front to Back
SW PID Serial# Status Sys Pwr PoE Pwr Watts-- ------------------ ---------- --------------- ------- ------- -----1A PWR-C6-1KWAC DCI250XXXXX OK Good Good 10001B Not FOR BUYER**
If you buyer has any problem with product purchase, please contact us immediately we will resolve it quickly, please don't leave OPEN CASE on or leave Negative response before contacting us.
